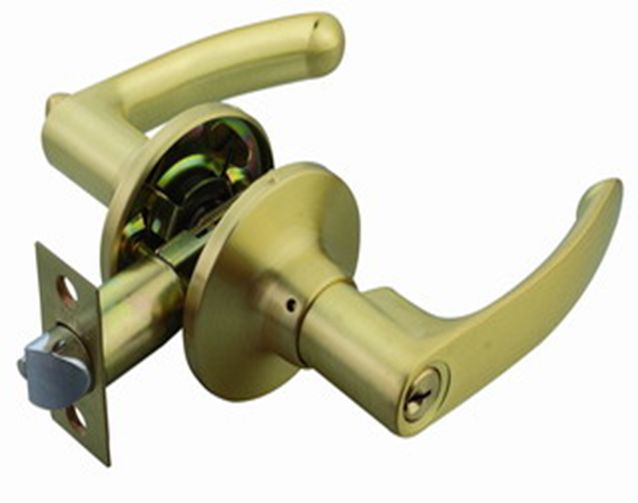

L5387/L5382/L5381
Key-in-Lever Lockset
L5367/L5362/L5361
- Steel radius or square corner faceplate and strike plate
- Grade 3 standard leverset, tested to 200k cycles, 96 hrs neutral salt spray test for exterior parts
- Unlock lever torque at 20 Nm and locked lever torque at 25Nm
- Levers turn angles 45 deg. to unlock except L531x and L532x turns 75 degree to unlock
| Dimension | 415 x 380 x 440mm |
| Backset | 60mm - 70mm |
| Door thickness | 35 - 45mm |
| Roses diameter | 65mm |
| Material for strike plate & face plate | Steel |
| Material for lever | Zinc alloy |
| Material for rose | Brass |
| No. of keys | 3 pcs of nickel kesys - per keyed enterance |
| Material for cylinder housing | Zinc alloy |
Series Name Function Finish L536 7 Enterance
2 Bathroom
1 PassageUS15 Satin Nickel US3 Polished Brass US5 Antique Brass US11 Antique Copper
