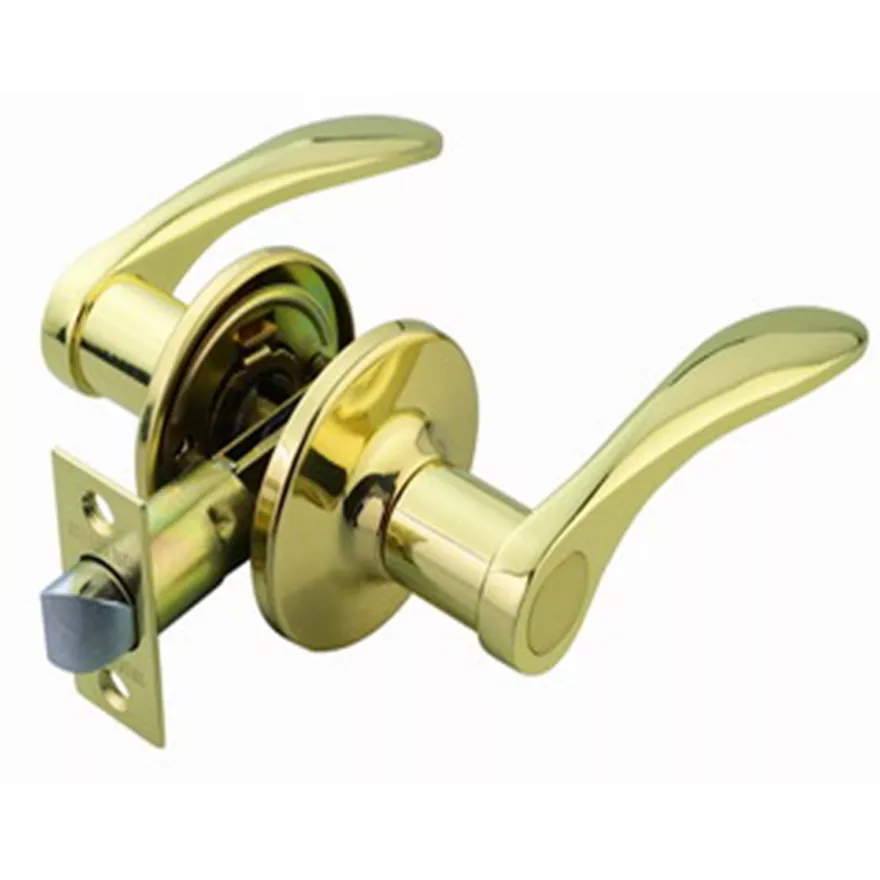

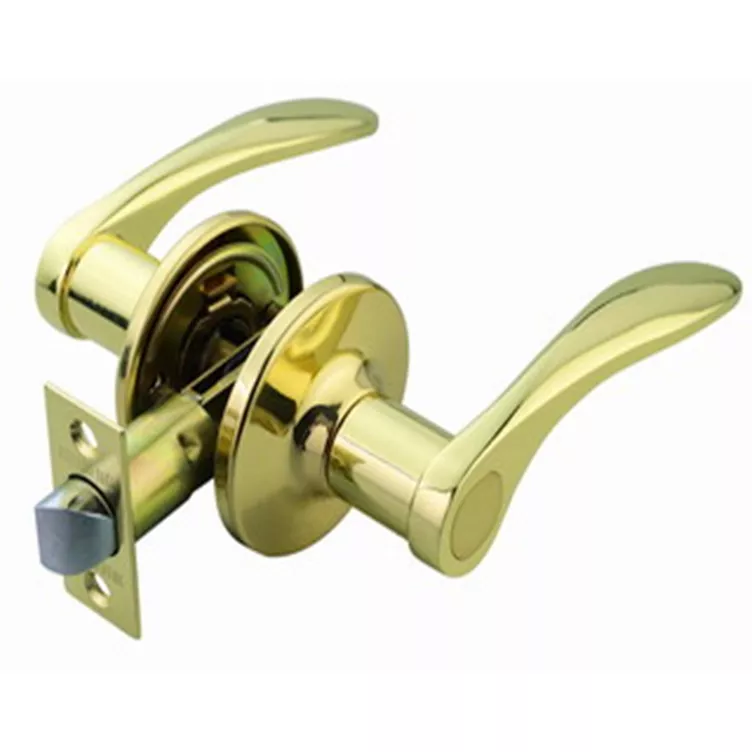

L5317/L5312/L5311
Yale L5317/L5312/L5311
L5327/L5322/L5321
| Dimension | 415 x 380 x 440mm |
| Backset | 60mm - 70mm |
| Door thickness | 35 - 45mm |
| Roses diameter | 65mm |
| Material for strike plate & face plate | Steel |
| Material for lever | Zinc alloy |
| Material for rose | Brass |
| No. of keys | 3 pcs of nickel kesys - per keyed enterance |
| Material for cylinder housing | Zinc alloy |
| Steel radius or square corner faceplate and strike plate. | |
| Levers turn angles 45 deg. to unlock except L531x and L532x turns 75 degree to unlock. | |
| Series Name | Function | Finish |
| L532 | 7 Enterance 2 Bathroom 1 Passage | US15 Satin Nickel |
| US3 Polished Brass | ||
| US5 Antique Brass | ||
| US11 Antique Copper |
