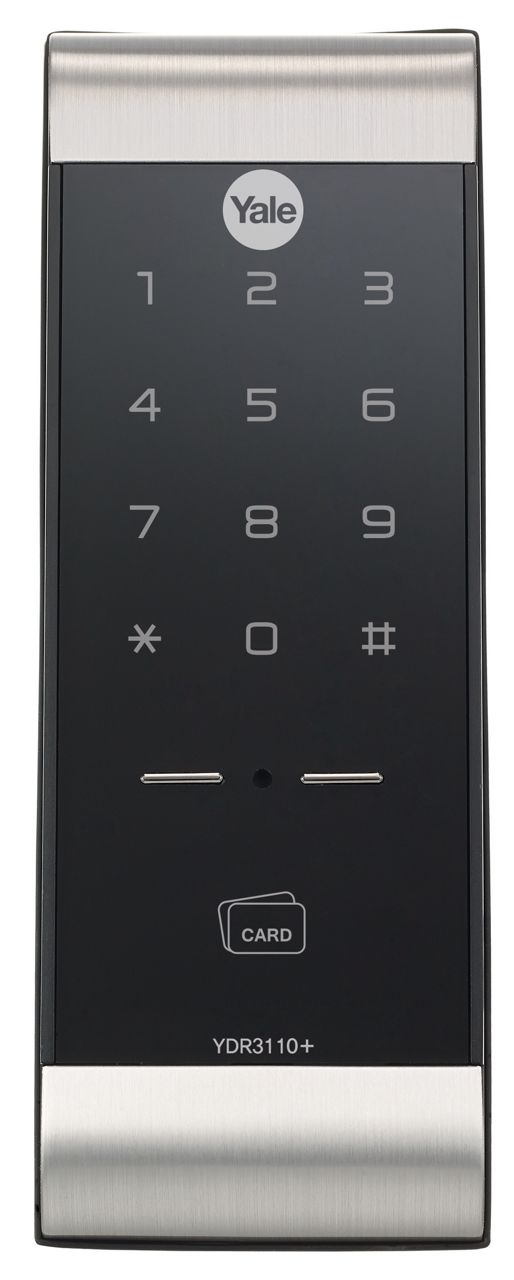

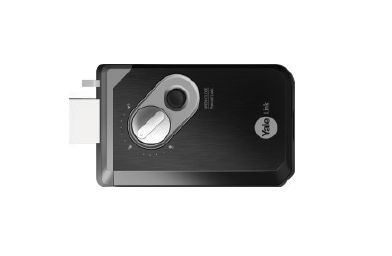

YDR3110A is a smart rim lock solution for residential and commercial applications.
Features & Benefits
The innovative features, such as alarms, temporary PIN code for guests or auto-lock and unlock will provide convenience and increase your home security level. It has 4 access solutions to open your door: RF Card key, PIN code,mobile access via Yale Home APP (optional)* and remote access via Yale Home APP (optional)* .
*Yale Home BLE Module and Yale Connect Bridge (Wifi connection) are required and sold separately.
This model requires installation by Yale Installation Team.
Operation status notification

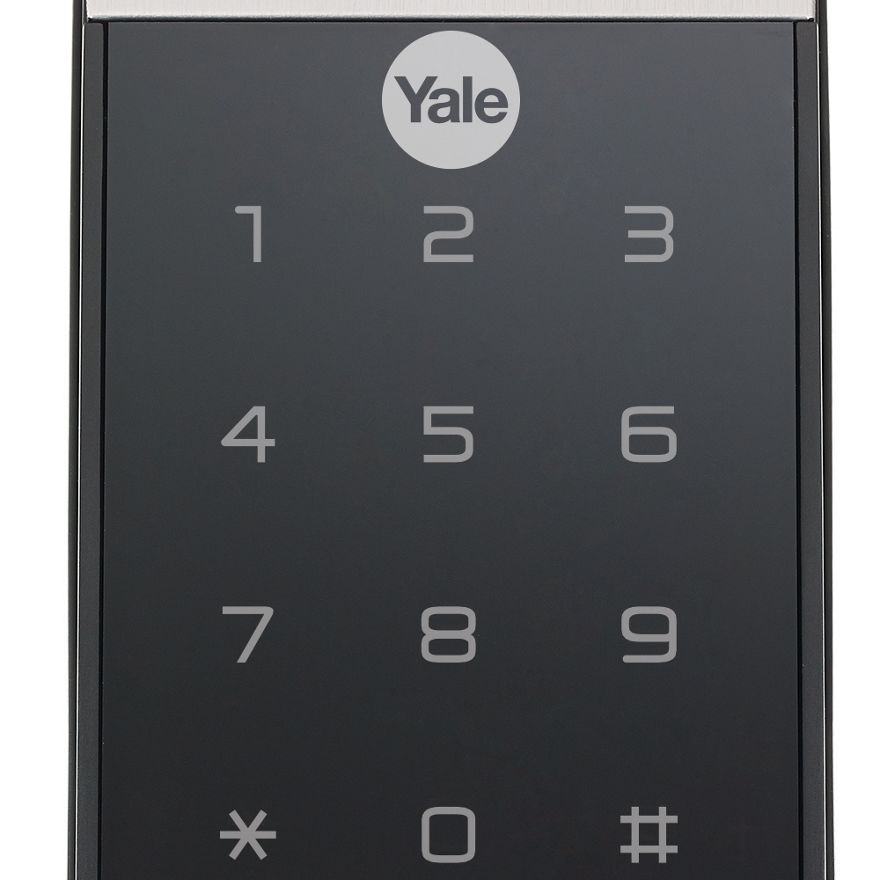

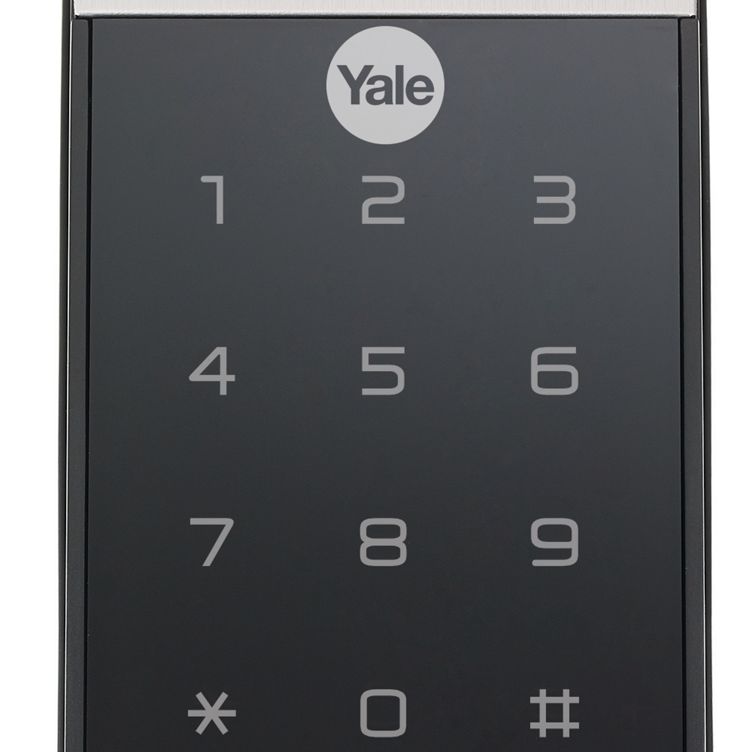

Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.
Missing key invalidation
If you lose your card key, it has no validation once you re-register rest of your keys.
Automatic locking
Yale Digital Door Lock series automatically locks a door after checking it is properly closed. (Manual operation is also available)
Alarm (Break / Damage / Fire)
80dB alarm goes off if anyone attempts to damage the lock or force the door open or the lock detects over 60°C.
Low battery and emergency power
It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.
Remote control (Optional)
Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50m.
Type | Rim Lock |
DDL Access Type | Card/Pin |
Battery Type | AA |
Warranty | 2 |
Body/Case Material | AL Die-casting |
Power Option | Battery |
Connectivity | 2.4GHz 802.11b/g/n WiFi |
Fake PIN | Yes |
Battery Life | 1 Year |
Low Battery Indicator | Yes |
