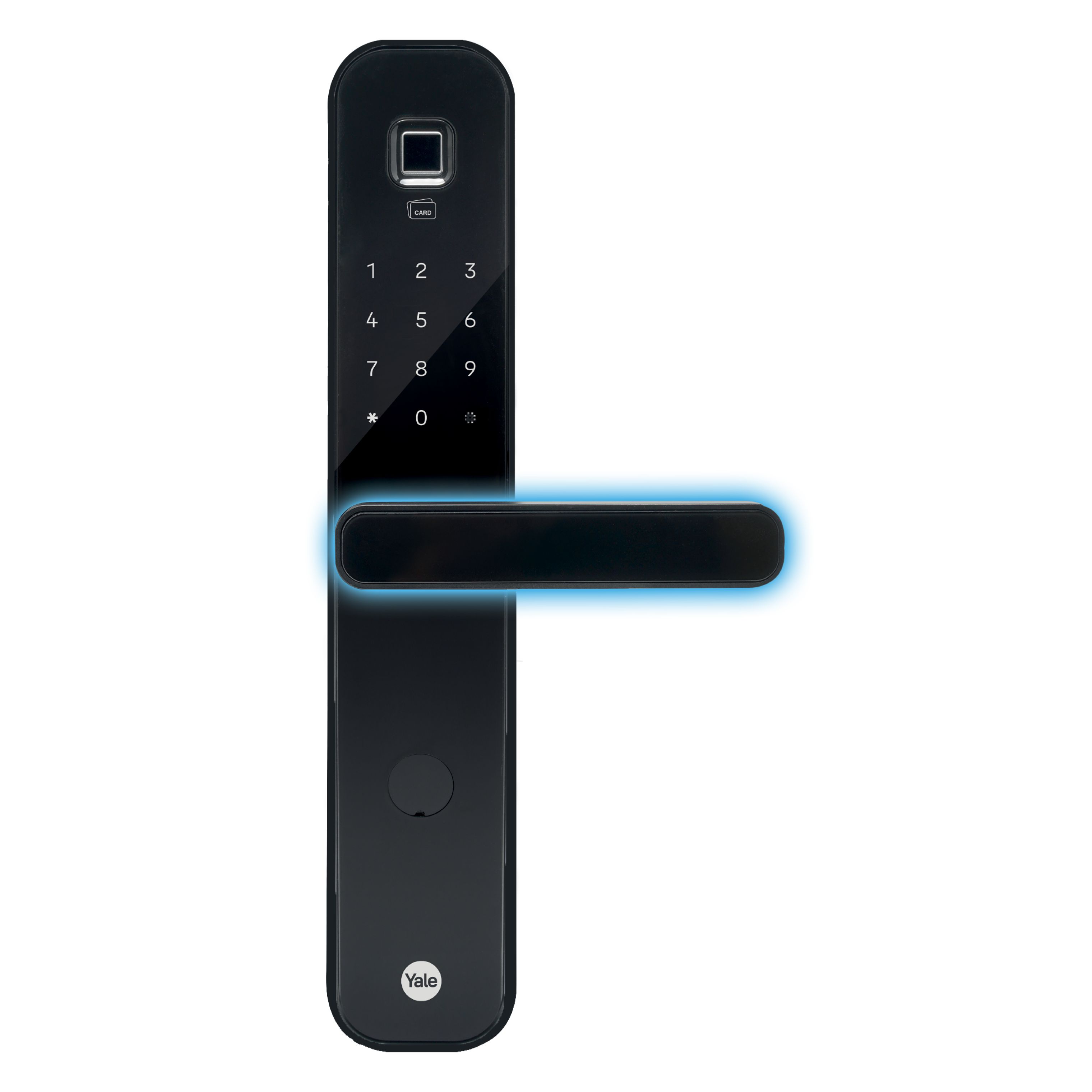

YDM7220 BioSecure™
Yale YDM7220 BioSecure™ (Mortise Smart Lock)

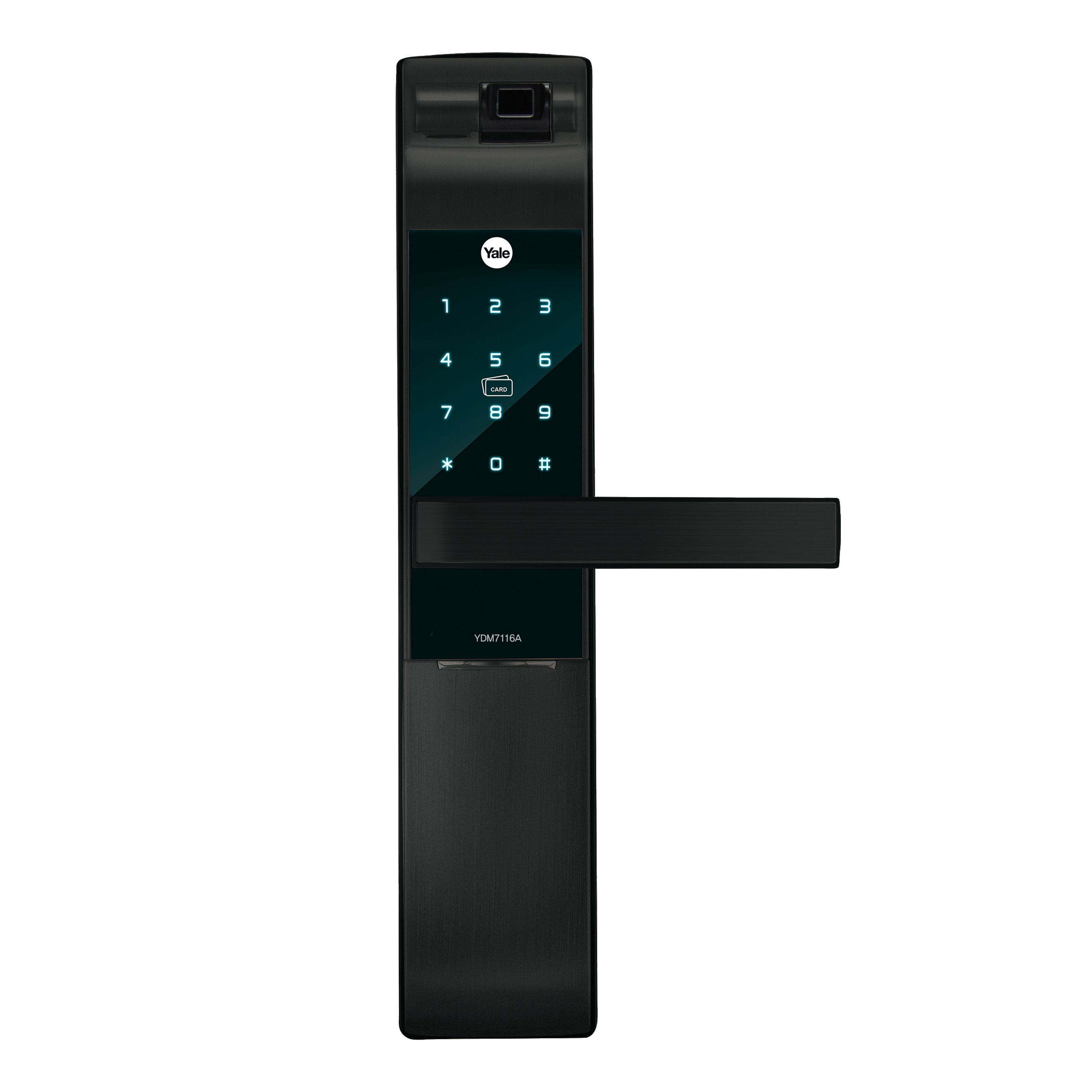

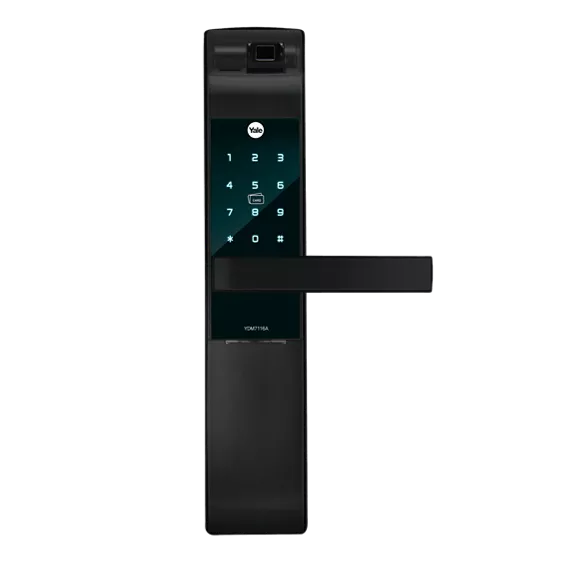

YDM7116A
Yale YDM7116A provides multiple access solutions - Fingerprint, PIN Code, RFID Card, mobile access via Yale Home APP (optional)* and remote access via Yale Home APP (optional)* .
*Yale Home BLE Module and Yale Connect Bridge (Wifi connection) are required and sold separately.
One-touch Fingerprint Verification Method (Easy Scan)
Easy Scan technology has been applied to Conveniently read a fingerprint in one touch to enter conveniently.
Fake PIN Code
To prevent the PIN Code from being exposed, it allows you to enter Fake numbers before or after entering your actual PIN Code.
Mechanical key override (2 keys)
For emergency, it can also be unlocked with a mechanical key.
Bluetooth - via Yale Home app
YDM7116A is compatiable with Bluetooth access available on your Smartphone (with Bluetooth module).
Remote Control (Optional)
Remote control is availble for purchase. It is using Wireless Floating ID technology and works up to 50m.
Normal / Master mode
For multi-user environment, YDM7116 can be to Security (Master) mode that the master can register and delete each user while Normal mode controls all the users at one time.
Voice GuideFeature
As the voice guide is offered that let you know the operation status how to set each features, mode for easier and more convenient use.
Operation status notification
Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.
Internal Forced Lock
It is a security-enchancing function that 'disables' authentication methods such as passwords, RFID cards and fingerprints from outside when setting up functions indoors.
Automatic Locking
The Yale series automatically locks the door after checking it is properly closed. (Manual operation is also available.)
Low battery alarm and emergency power supply terminal
It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.
Alarm (Break-in / Damage)
80dB alarm goes off if anyone attempts to damage the lock or force the door open, or if the lock detects.

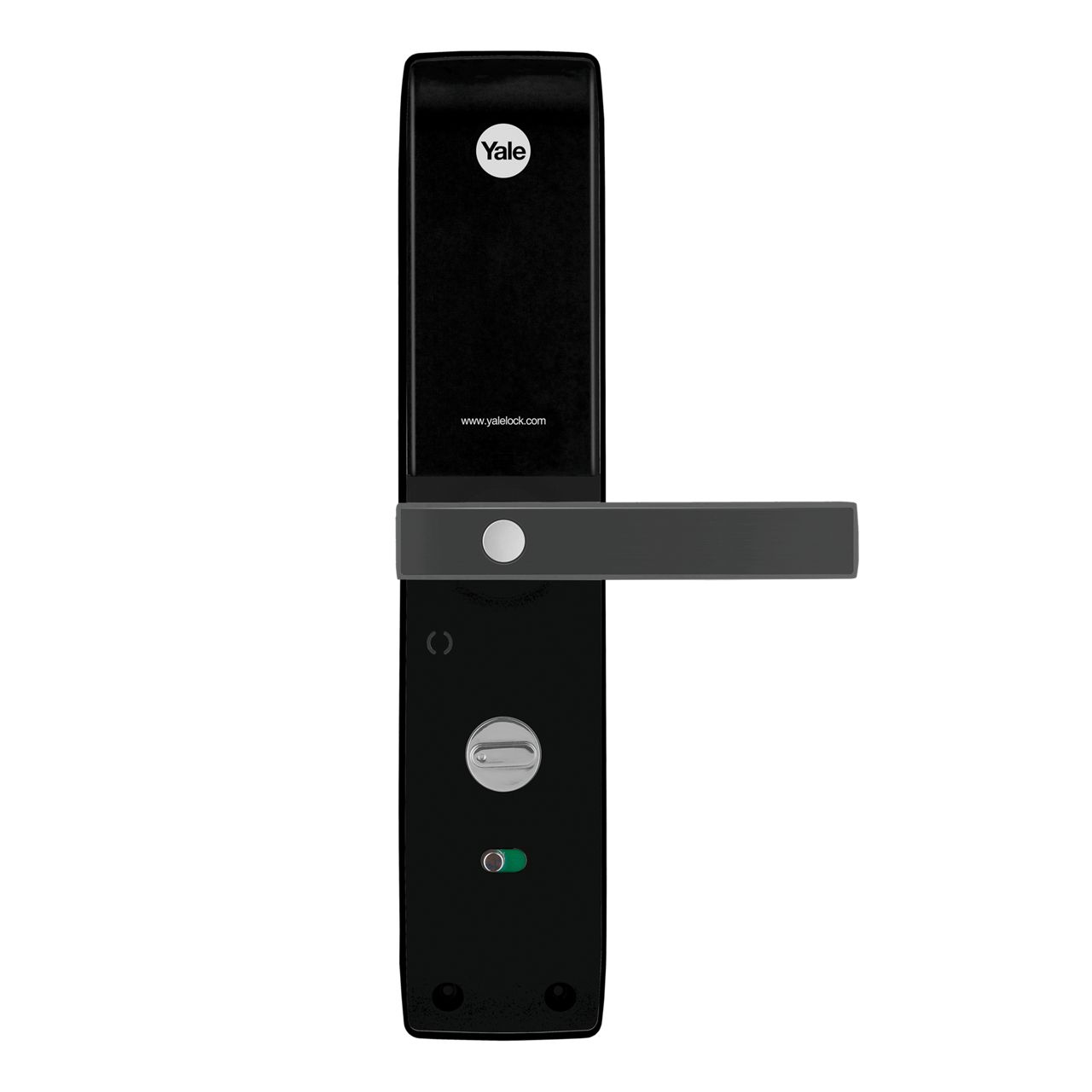

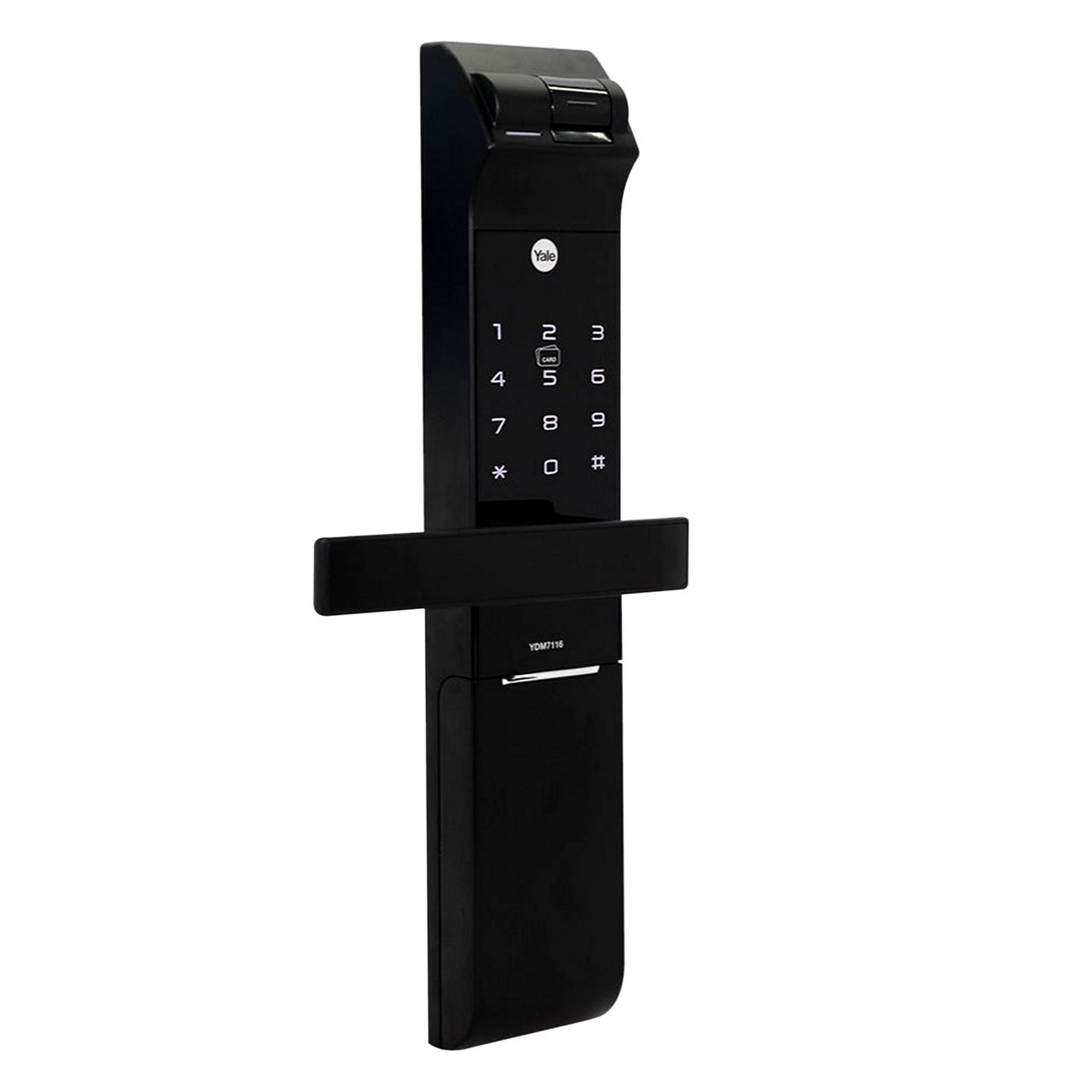

Model: YDM7116A
Color: Black
Locking Type: Mortise
Backset: 60 / 70mm
Door Thickness: 35 - 100mm
Battery: Alkaline (AA x 4)Product Dimension:
- Size (Front): 68(W) x 340(H) x 40.18(D) mm
- Size (Back): 72(W) x 344(H) x 36(D) mm
Access Credential:
- Fingerprints: Available
- PIN Code: Available
- RFID Key Tag: Available
- Mechanical Key Override: Available
- Bluetooth: Available
- WiFi Connection: Available
- Remote Control: Available (Optional - Sold Separately)
Maximum No. of Users:
- Fingerprints: Up to 100 Users
- PIN Code: Up to 100 Users
- RFID Key Tag: Up to 100 Users
- Mechanical Key Override: 2 Keys
- One Time Code: 1 Only
Additional Features:
Always in the know
The activity feed in Yale Home App tracks how and when your door is locked and unlocked.
Control who has access
Let visitors in and out when you are not at home.
Keep your home secure
Check if your door is locked from anywhere.
Monitor access from anywhere
Always know who is coming and when.- Voice Guide
- Automatic Locking
- Alarm (Break-In / Damage)
- Anti-panic Egress
- Fake PIN Code
- Low Battery and Emergency Power
- Remote Control (Optional)
Leaflet
User Manual
Similar products
YDD424A
Yale YDD424A (DeadBolt Smart Lock)YMI70A

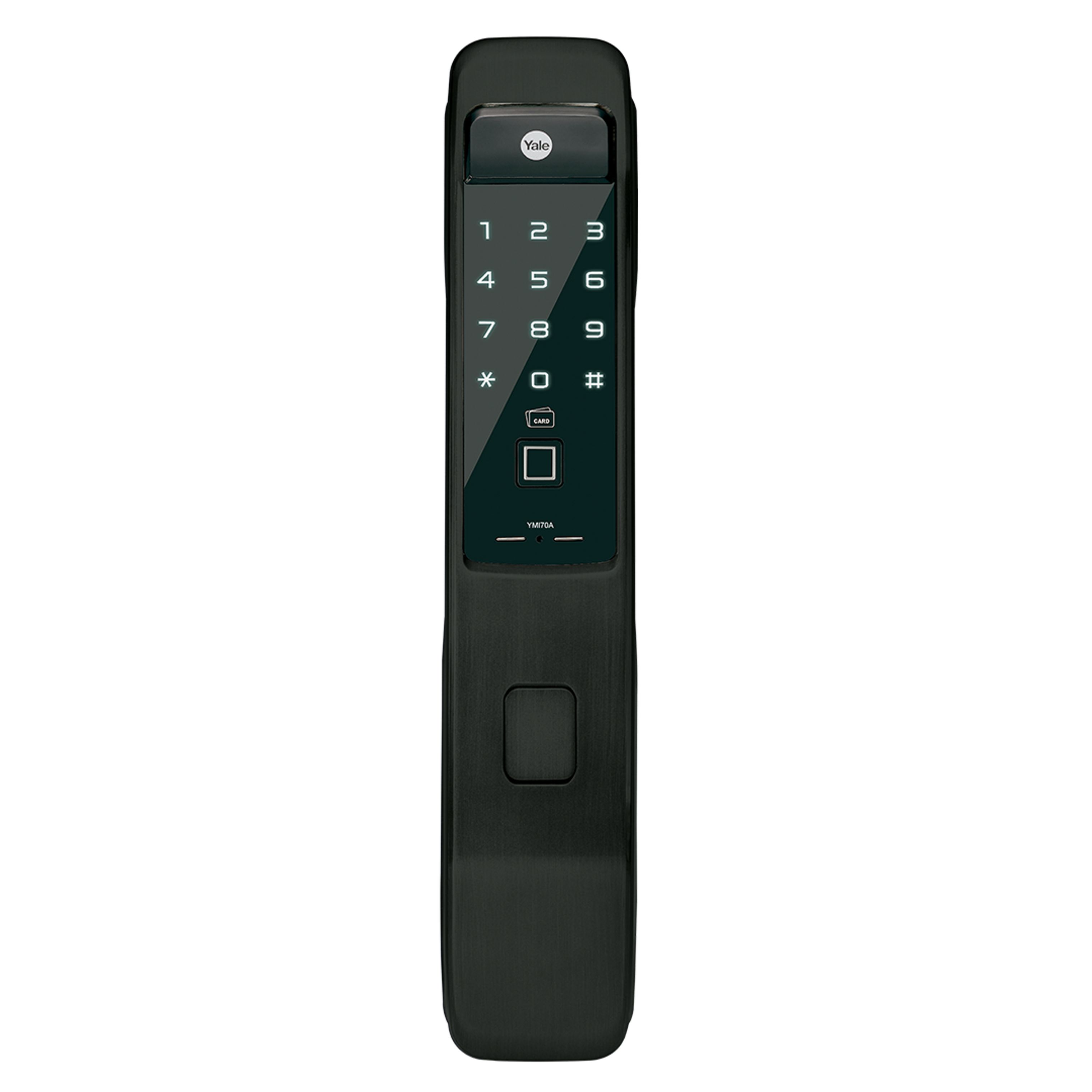

Yale YMI70A (Push Pull Mortise Smart Lock)YDM7116A
