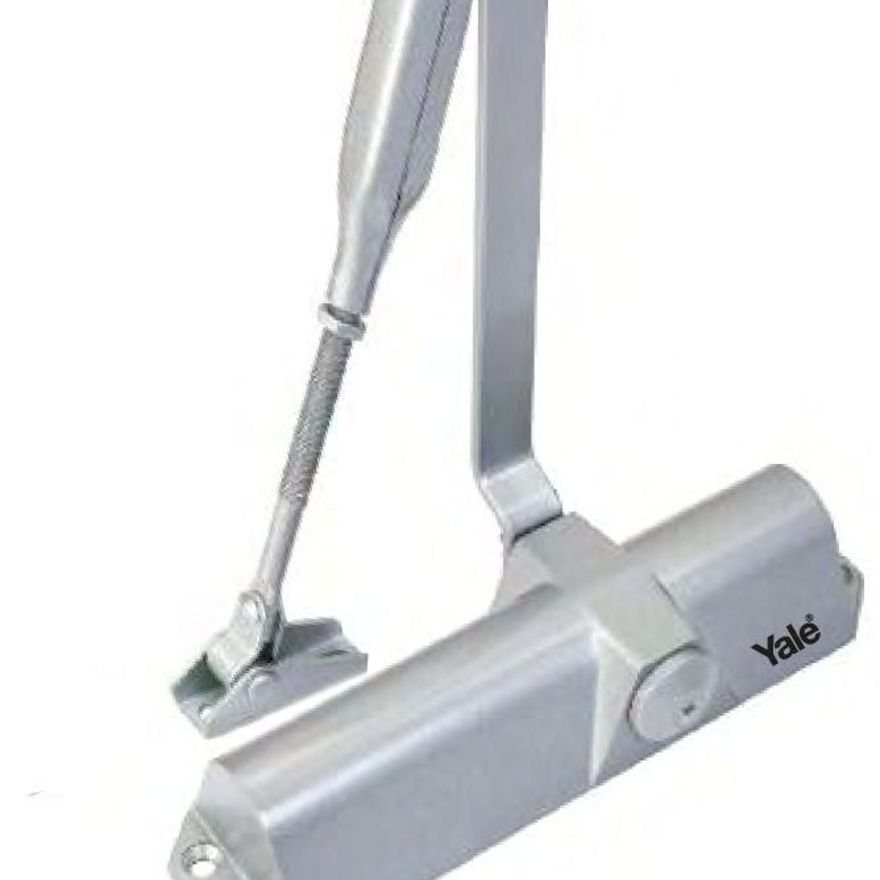

YDC 2022 HO
Door Closer EN Size 2-4, Adjustable HO Arm (Surface Mounted) up to 80kg
Product Description:
Yale YDC 2022 HO Premium door closer suits all types of doors and requirements. It comes with speed control and fire rating for best performances under all circumstances.
Yale Surface Mounted Door Closer applicable for EN Size 2-4, manufactured as per the European standard 1154. Aluminium body with standard arms with adjustment. Suitable for Wooden and Aluminium frame doors.Non Hold open door closer, suitable for instant closing operation. With adjustable closing and latching speed
Technical Specifications
- Suitable for din left and Grade 2 din right handed doors
- Conforms to EN 1154
- 3 Year Warranty
- 5,00,000 Cycle Tested
- Grade 2
| Details | Features |
| Type | R & P |
| Spring Sizes | EN 2 - 4 |
| Arm Assembly Type (Standard / Slide Channel Arm / Hold Open Type) | Std. Arm |
| Adjustments Facility | ✓ |
| Area of Application | Wooden or Metal Doors |
| Back Check | ✖ |
| Hold Open / Slide Arm / Parallel Arm | ✖ |
| Standards | EN 1154 |
| CE Marked | ✖ |
| Suitable for door width | 750 - 1100 mm |
| Suitable for door weights | 80 kgs |
| Cycle Tested | 500000 |
| Finishes | Silver |
