YMG30

Designed for Everyday Life
Push and Pull RFID Smart Lock

The Yale YMG30 is a premium push and pull RFID mortise lock that sets the standard for smart home security solutions . YMG30 has multiple access modes such as RFID Card, PIN Code and Mechanical Key.

Available Colors:

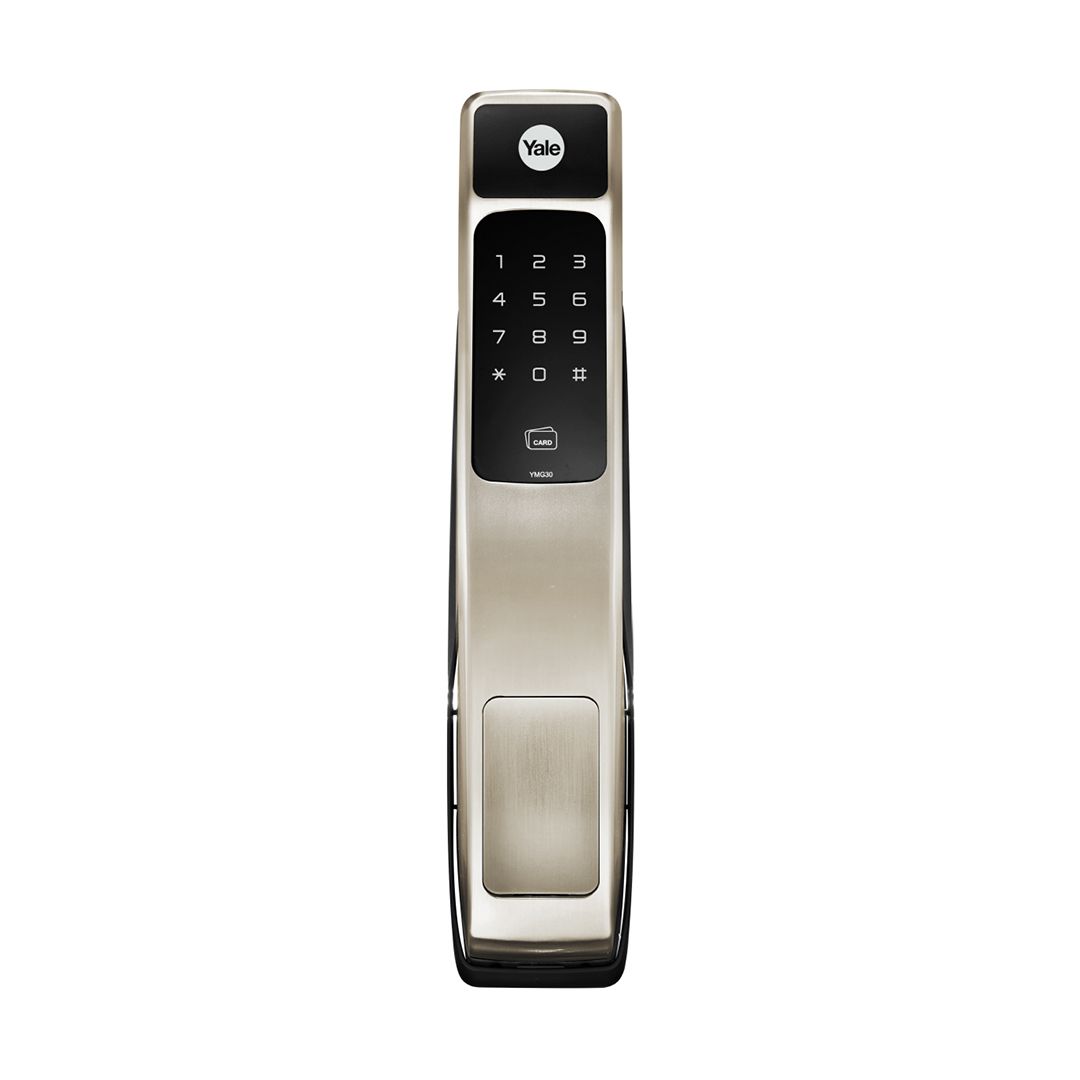

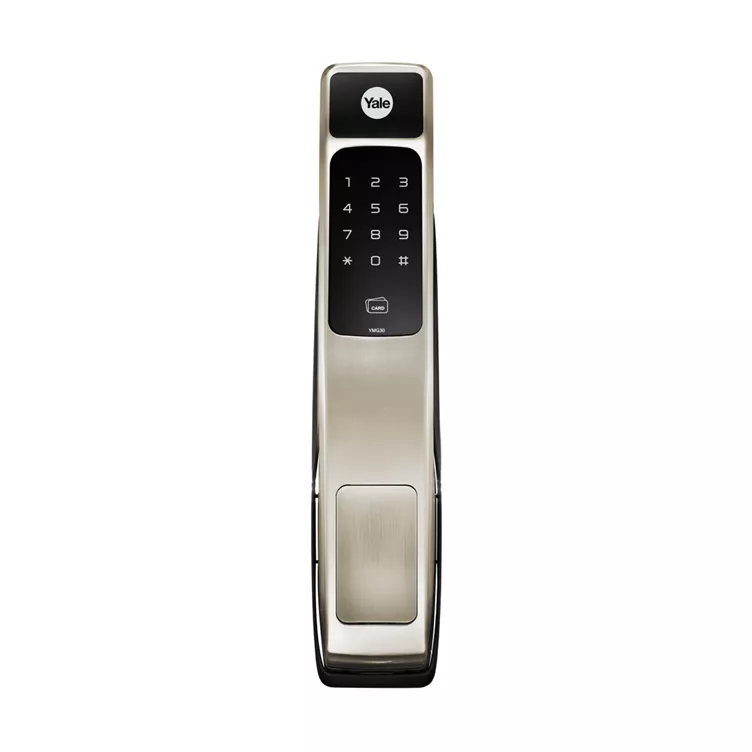

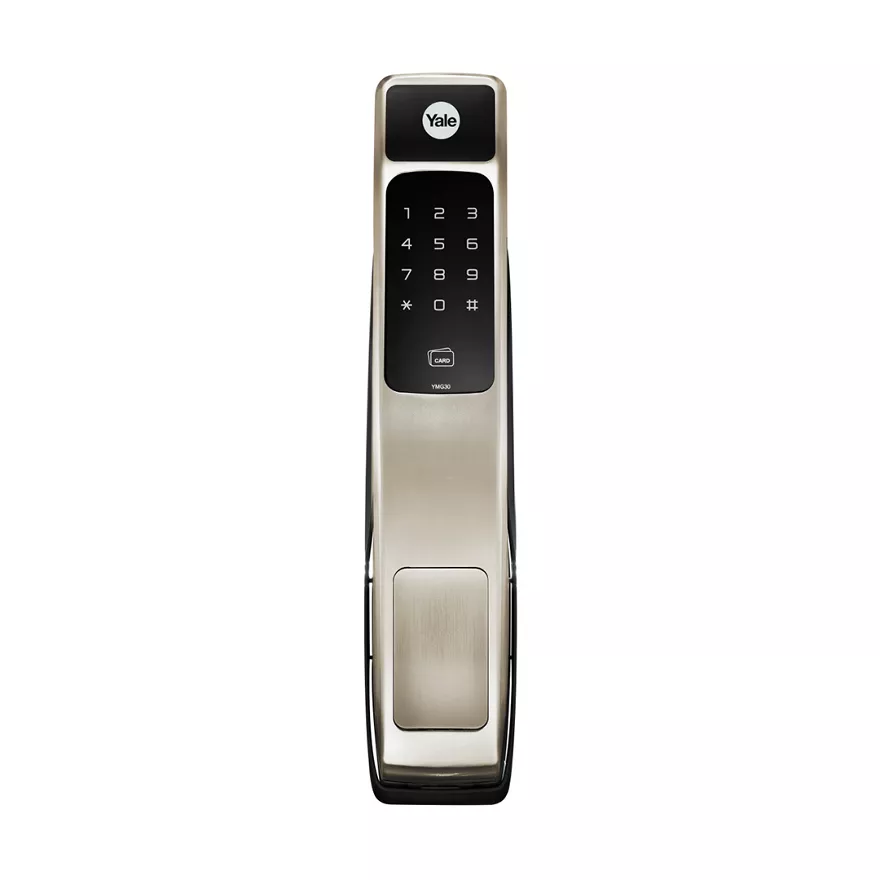

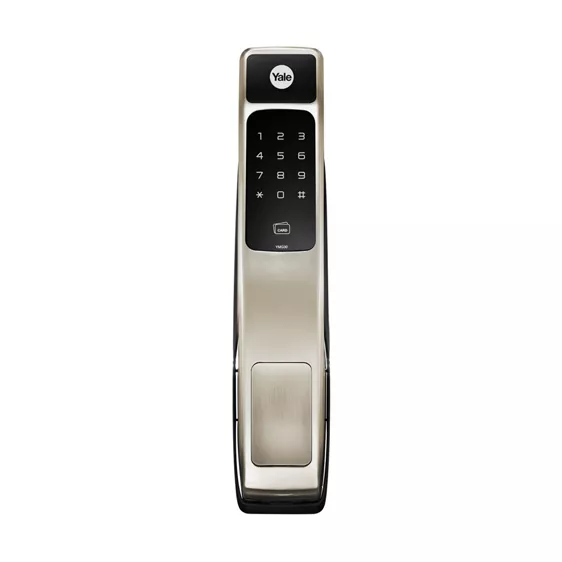

Satin Nickel

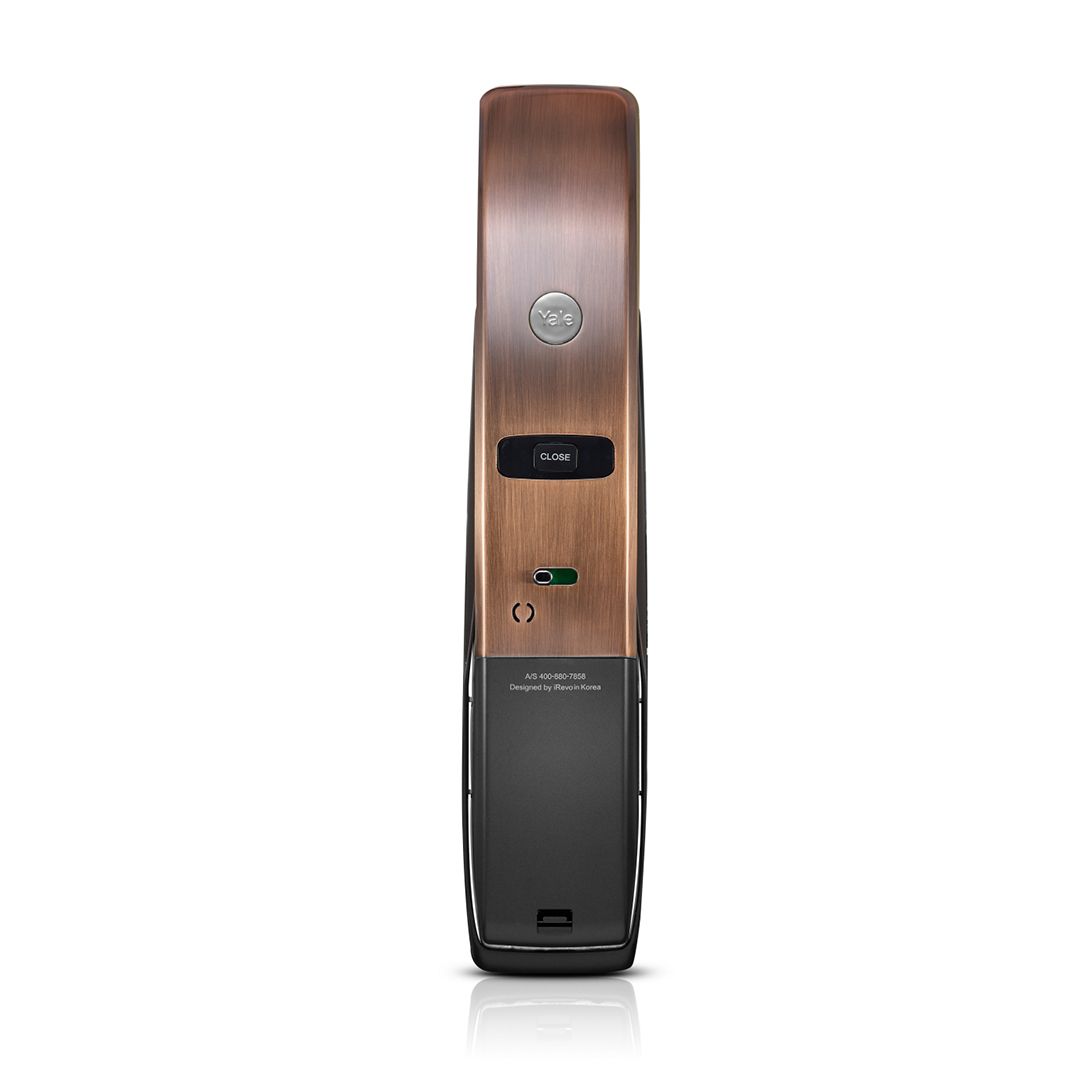

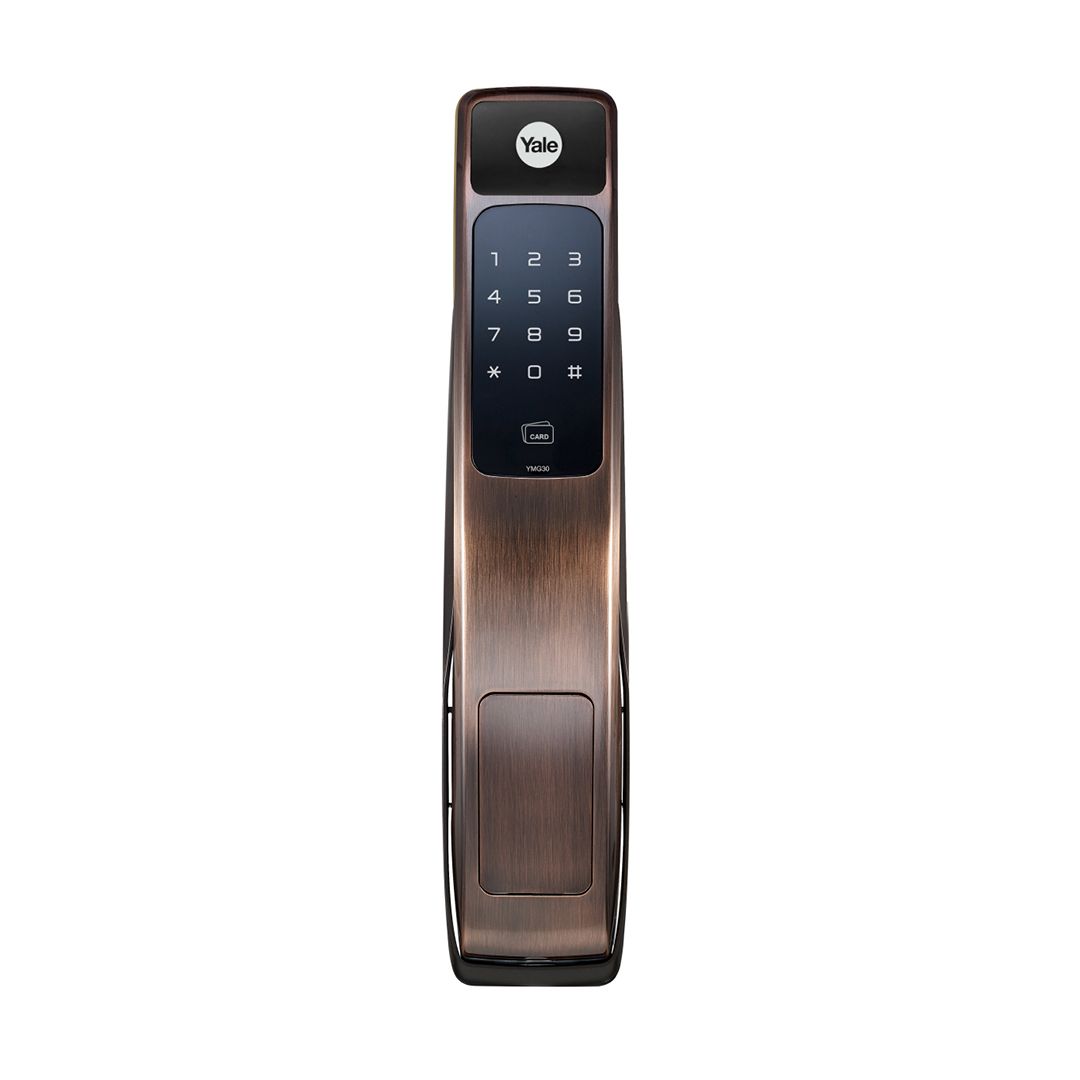

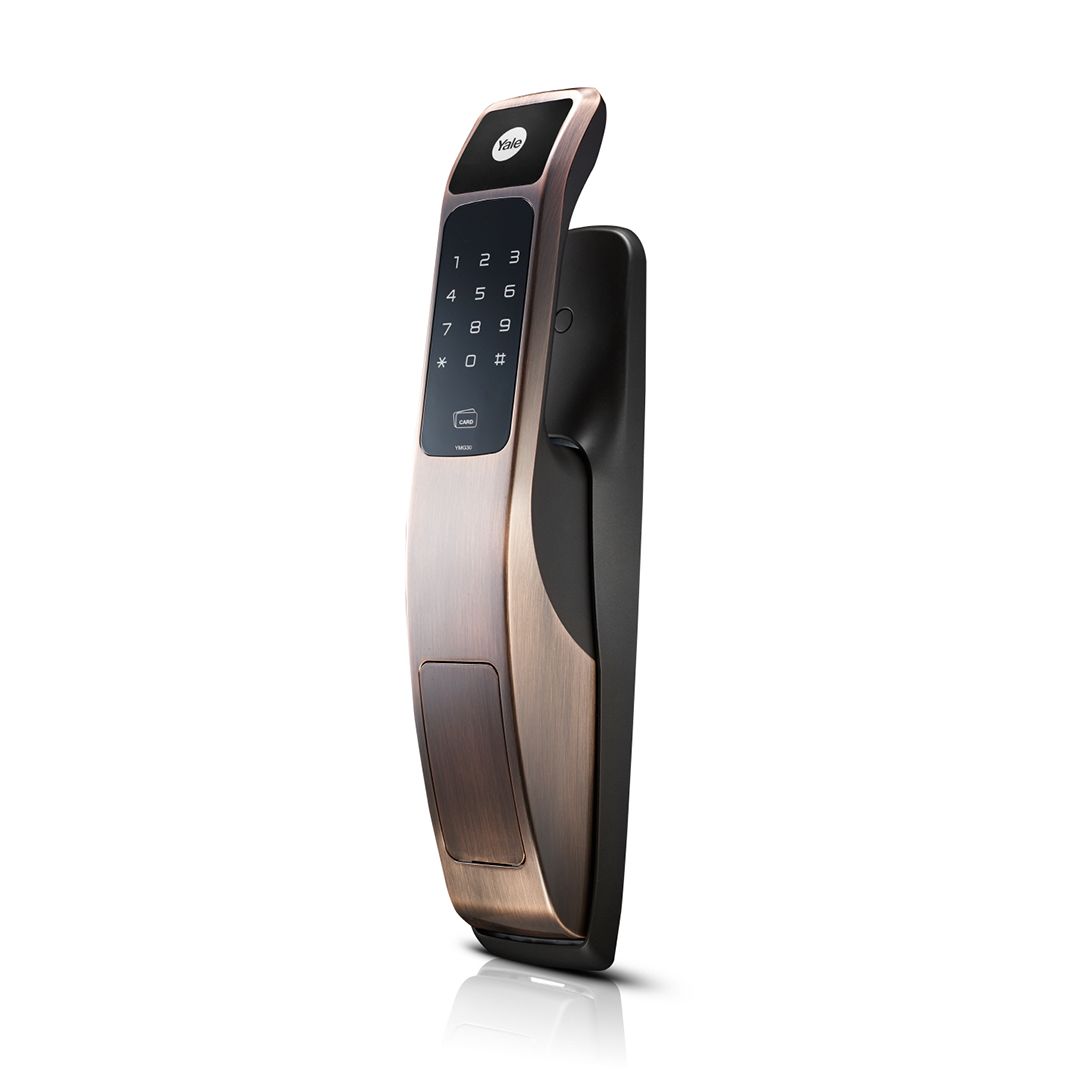

Red Bronze

Shop YMG30 now

Type	Mortise lock
Fingerprint	None
Card	Up to 40 users
Mechanical key	2
PIN code	4 - 10 digits
Color	Red Bronze and Satin Nickel
Thickness	40-80mm
Backset	60mm
Front body dimension	76 (W) x 359.1 (H) x 67.6 (D) mm
Back body dimension	76 (W) x 359.1 (H) x 65.2 (D) mm
Door Type	Wood

YMG30_MANUAL_151210(out)_Ver0_2(PDF, 10 MB)

Life is better without the twists and turns.

YMG30 is a premium push and pull RFID mortise lock that sets the standard for smart home security solutions.

Key Features

Live smart with our home smart lock systems by upgrading your home security system to the all-new Yale Smart Lock. Now you can live smartly by unlocking your door with your fingerprint, RFID key tag, or a pin code.

RFID Card Access
Access using your registered RFID cards. Once you lose a card key, it has no validation as long as you re-register rest of your card keys.
Fake PIN Code
To prevent the PIN Code from being exposed, it allows you to enter fake numbers before or after entering your actual PIN Code.
Alarm (Break-in / Damage)
80dB alarm will be triggered if anyone attempts to damage the lock, force the door open.
Automatic Locking
After the door was closed, Yale smart locks automatically locks after 3 seconds. (Manual operation is also available.)

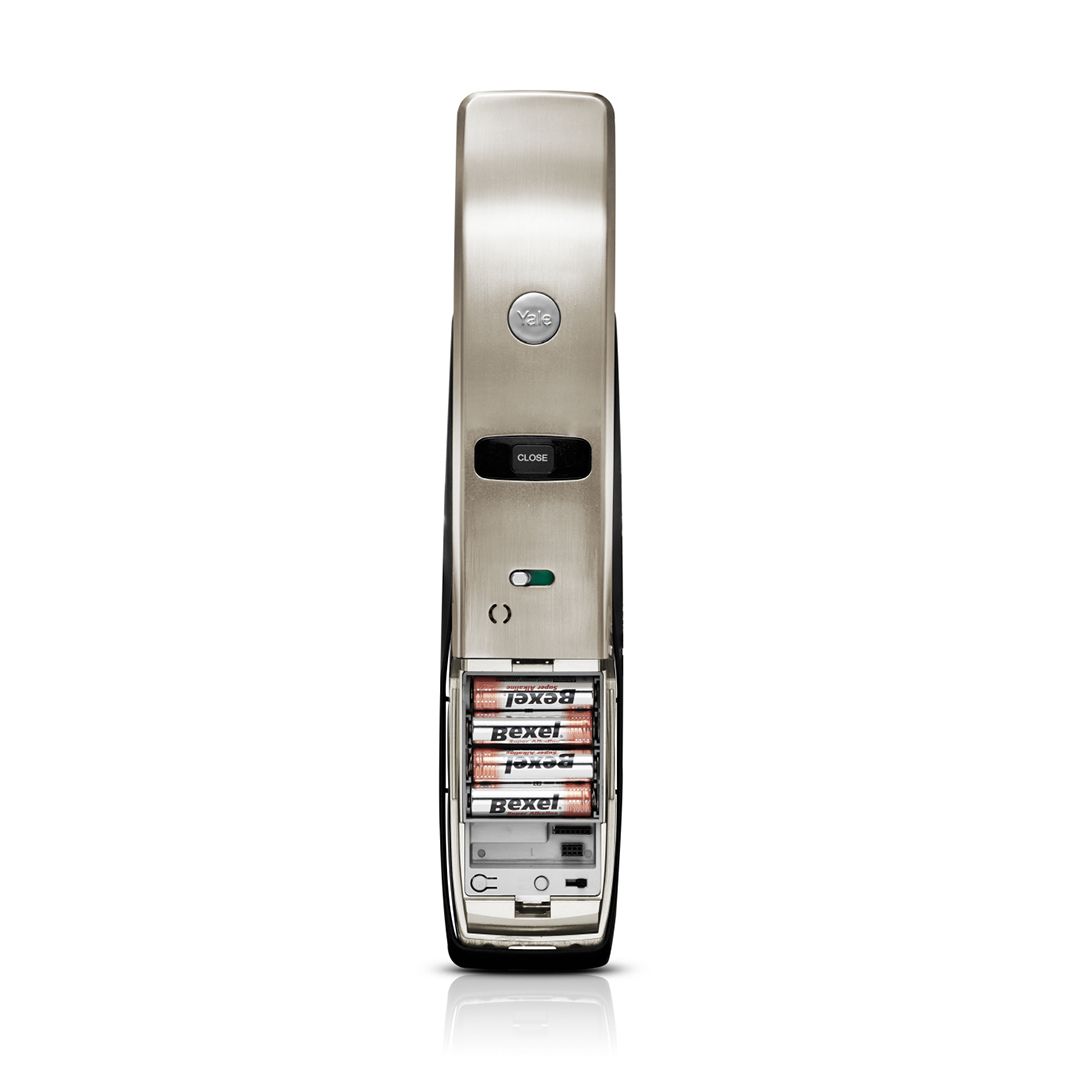

Low battery alarm and emergency power supply terminal
It warns in case of low battery. And when the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.
