8000 Series
| Standard | ANSI / BHMA A156.5.2001 |
| Testing cycles | Tested up to 100,000 cycles |
| Material | |
| - Chassis | Steel |
| - Latch & Bolt | Zinc |
| - Cylinder Housing | Steel |
| - Round Plate | Brass |
| Backset | 60mm / 70mm |
| Door Thickness | 35~50mm |
| Function | Residential application |
| Anti - Sawing Insert | Hardened Steel |
| Cylinder | Solid brass 5-pin tumbler cylinder |
| No. of Keys | 3pcs of nickel plated btass key |
| Finishes | US3 - Polished brass US5 - Antique brass US11 - Antique copper US32D - Polished Stainless Steel US32D - Satin Stainless Steel |

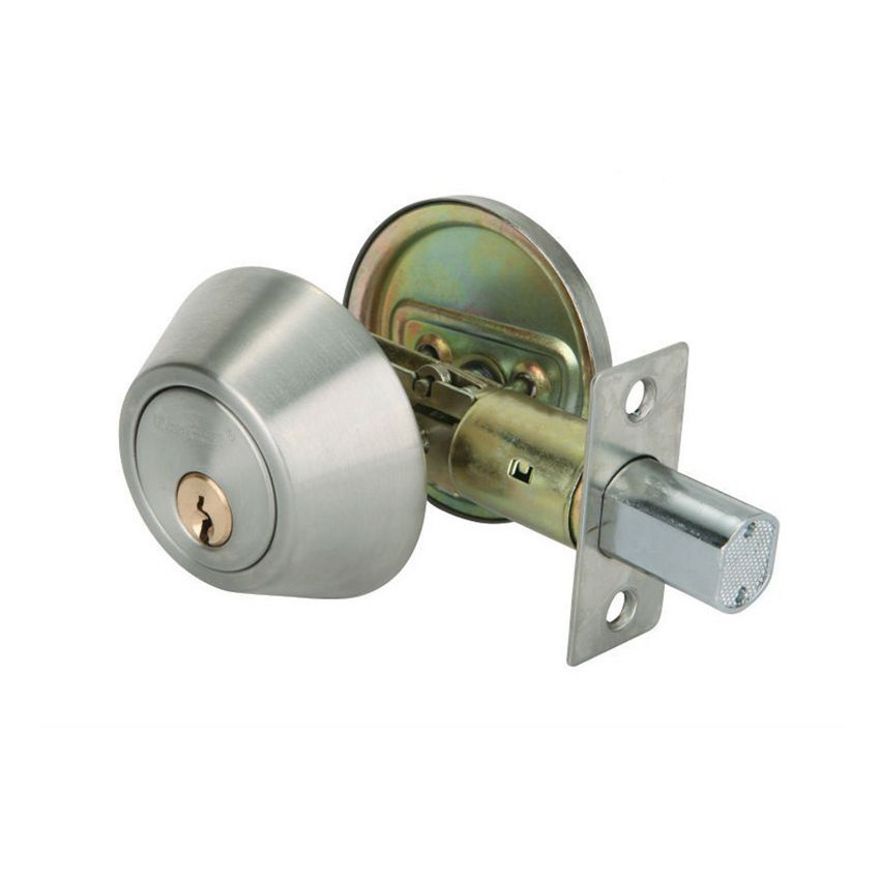

V8011 Single Cylinder

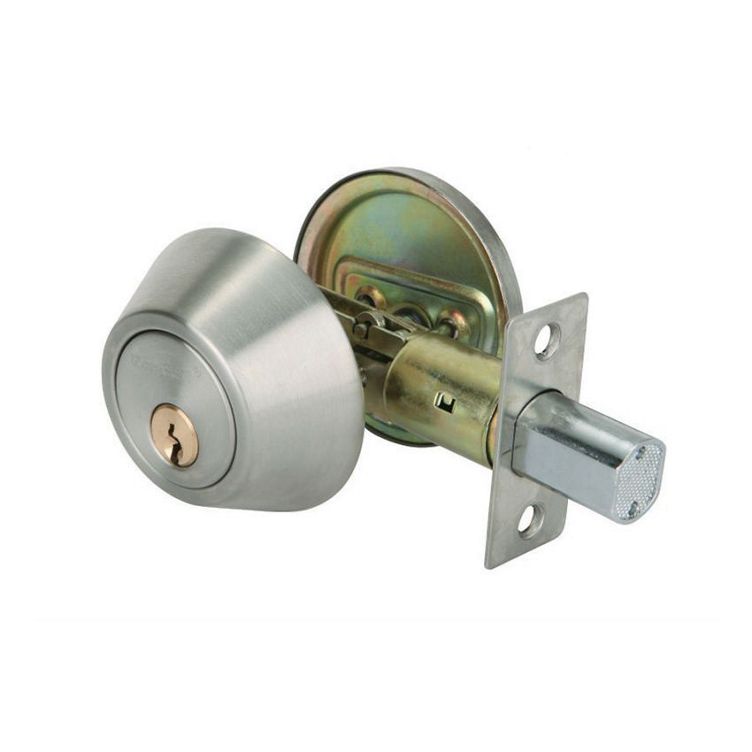

V8011 Single Cylinder

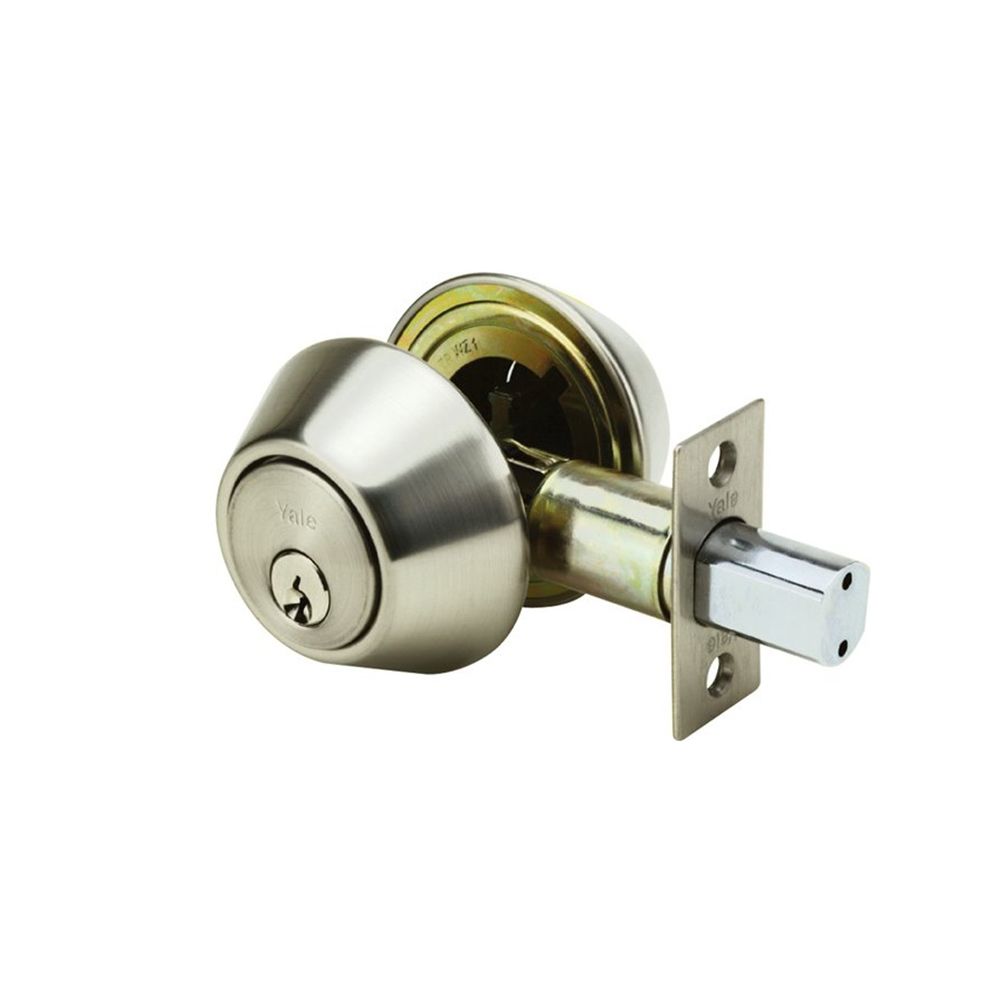

V8021 Double Cylinder
Standard:
Testing cycles:
Material:
Chassis:
Latch & Bolt:
Cylinder Housing:
Round Plate:
Backset:
Door Thickness:
Function:
Anti - Sawing Insert:
Cylinder:
No. of Keys:
Finishes:ANSI / BHMA A156.5.2001
Tested up to 100,000 cycles
Steel
Zinc
Steel
Brass
60mm / 70mm
35~50mm
Residential application
Hardened Steel
Solid brass 5-pin tumbler cylinder
3pcs of nickel plated btass key
US3 - Polished brass
US5 - Antique brass
US11 - Antique copper
US32D - Polished Stainless Steel
US32D - Satin Stainless Steel
