Yale Home App
Yale smart locks and smart window actuators can now be controlled through the use of the Yale Home App, giving you total control over your smart home via your mobile device.

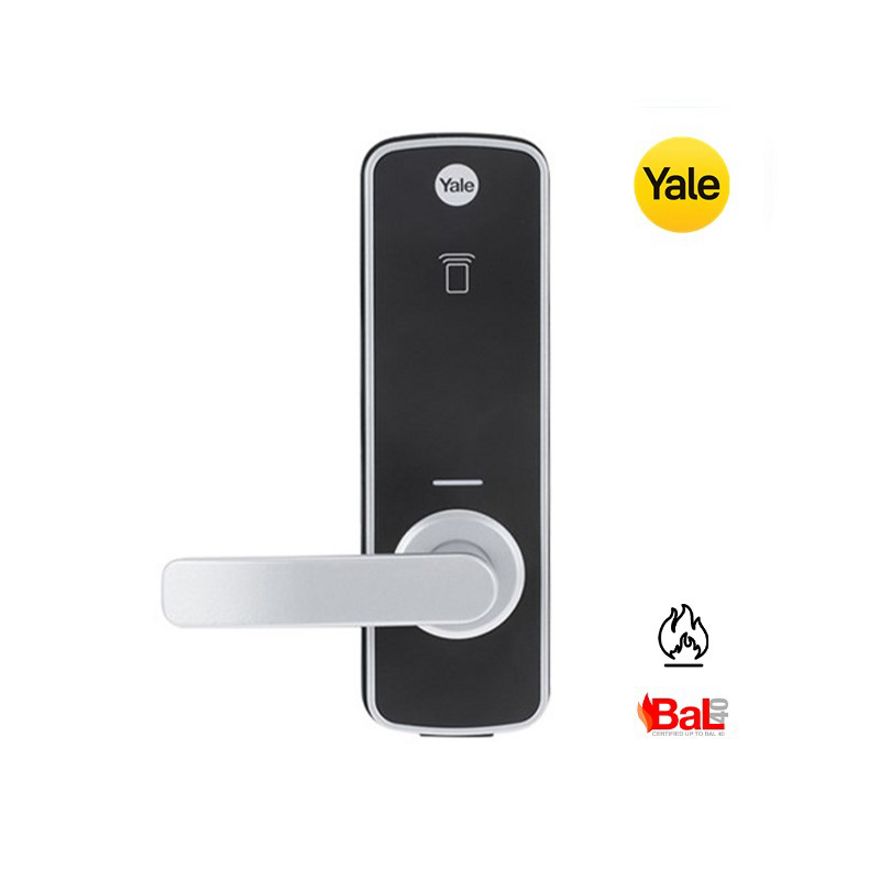

Yale Unity Entrance Lock Fire Rated
Designed for fire door applications, the Yale Unity Entrance Lock Fire Rated has been successfully tested for 2 hours on door assemblies in accordance with Australian Standard AS1905.1-2015 Fire Resistant Doorsets. Offering a solution suited for use in applications such as apartments entry and office doors.
Meeting Australian lock standards AS4145.2:2008, SL8 and D8, you can be sure that the Unity Entrance Lock meets your security needs.
Lock alert indications shows users the lock mode via a built in LED. The lock has two modes, Unlock (Green) and Locked (Yellow).
Controllable by either the Yale Home App, Contactless Key Tag or PIN code using a Yale Smart Keypad*, the Unity Entrance Lock provides you with a range of options to control your lock. The Yale Home App allows you to lock and unlock your door, grant access to others and keep track of visitor access, all via your smartphone. Grant users one time access, access for a set period of time or a date range, avoiding any lost keys or having your keys stolen or copied.
Using varying technologies including Bluetooth, Wi-Fi and GPS as well as the Yale Home App, the auto-unlock feature unlocks your door as you approach.
The door position sensor checks the status of the door and tells you if your door is securely closed and locked giving you the peace of mind your door is secure when locking up.
The Unity Entrance Lock can be upgraded with the Yale Connect Bridge or Yale Connect Plus Hub 2. The Yale Bridge/Hub allows you to remotely manage your lock from anywhere. Allowing you to lock and unlock, change PIN codes and lock settings remotely. The Yale Bridge/Hub, enables ‘Works with’ ability, integrating into your Google, Samsung or Alexa smart home hubs. The Unity Entrance Lock is also Apple HomeKit compatible (see Lock Compatibility Table).
With the Yale Smart Keypad you can lock and unlock your door via PIN codes.
*Yale Connect Bridge, Yale Connect Plus Hub 2, and Yale Smart Keypad sold seperately
Features
Lock Alert
Lock status indicated via LED, showing the lock mode: Secure (red), Locked (yellow) and Unlocked (green).
Digital Deadlocking
Digitally deadlock your door through the secure lockset mode, securely locking from both the inside and outside.
Auto Unlock
Auto unlock your door as you walk up without the need to take out your phone. The door position sensor tells you if your door is open or closed.
Tailor User Access
Use either the Yale Home App, Yale Key Tags or upgrade with the Yale Smart Keypad to access your lock.
Key Free
100% key free. No cylinder means no lost keys and no pick and bump break-ins.
Yale Connect Plus Hub 2
Unlock and lock your door from wherever you are. Allows you to integrate the Yale Unity Entrance Lock with smart home ecosystems.
Yale Smart Keypad
Lock & unlock your lock using your Yale Smart Keypad.
Part number: 05/301000/BL
*The Yale Connect Wi-Fi Bridge or Yale Connect Plus Hub 2 is required for integrations into smart home hub.
Yale Connect Hub Plus 2
Features
RFID key tag
Unlock your door with RFID key tag. Register up to 100 users.
Guest access
Grant access to others for a few weeks, a few hours, or a few minutes. Never worry about your lost or stolen keys again.
Tamper Alarm
The tamper alarm is a security feature that alerts you when your lock has been tampered with .Yale Home App users will also receive a notification via the App whenever the tamper alarm sounds.
Australian Standard Certified to SL8 (Security) Australian Lock Standard (AS4145.2:2008)
Certified to D8 (Durability) Australian Lock Standard (AS4145.2:2008)
Certified to BAL-40 Bushfire Level (AS1530.8.1 2018)
Certified to Fire Resistant Doorsets (AS1905.1.2015)Compliance Regulatory Compliance Mark (RCM) for Australia and New Zealand Lock Type 530 Latch Door Thickness 35-60mm Backset 60-70mm backset (70mm latch sold separately – Y530-2SC) Finish Silver powdercoat with black nylon RFID Yes (2 x Contactless Key Tags) Power 4 x AA Alkaline batteries Battery Life on lock approximately 12 months Low Battery Warning 20% Volume Settings Mute, Low, High Operating Temperature -25-70°C Humidity 0-95% IP Rating IP54 Use Entry doors where a fire rating is required (e.g. apartments or offices). Not for use on doors where the internal escutcheon will be exposed to outdoor environments. Item Part number Barcode Yale Unity Entrance Lock Fire Rated Silver YUR/DEL/FR/SIL 9348313045129 Yale Smart Keypad 05/301000/BL Yale Connect Plus Hub 2 YAR/SWAA/HUB/-I-D
How-to Videos
Install Unity Entrance Lock
Retrofit Unity Entrance Lock
