Features

Yale Home AppYale Home App

Yale Home App

Yale smart locks and smart window actuators can now be controlled through the use of the Yale Home App, giving you total control over your smart home via your mobile device.

PIN CodePIN Code

PIN Code

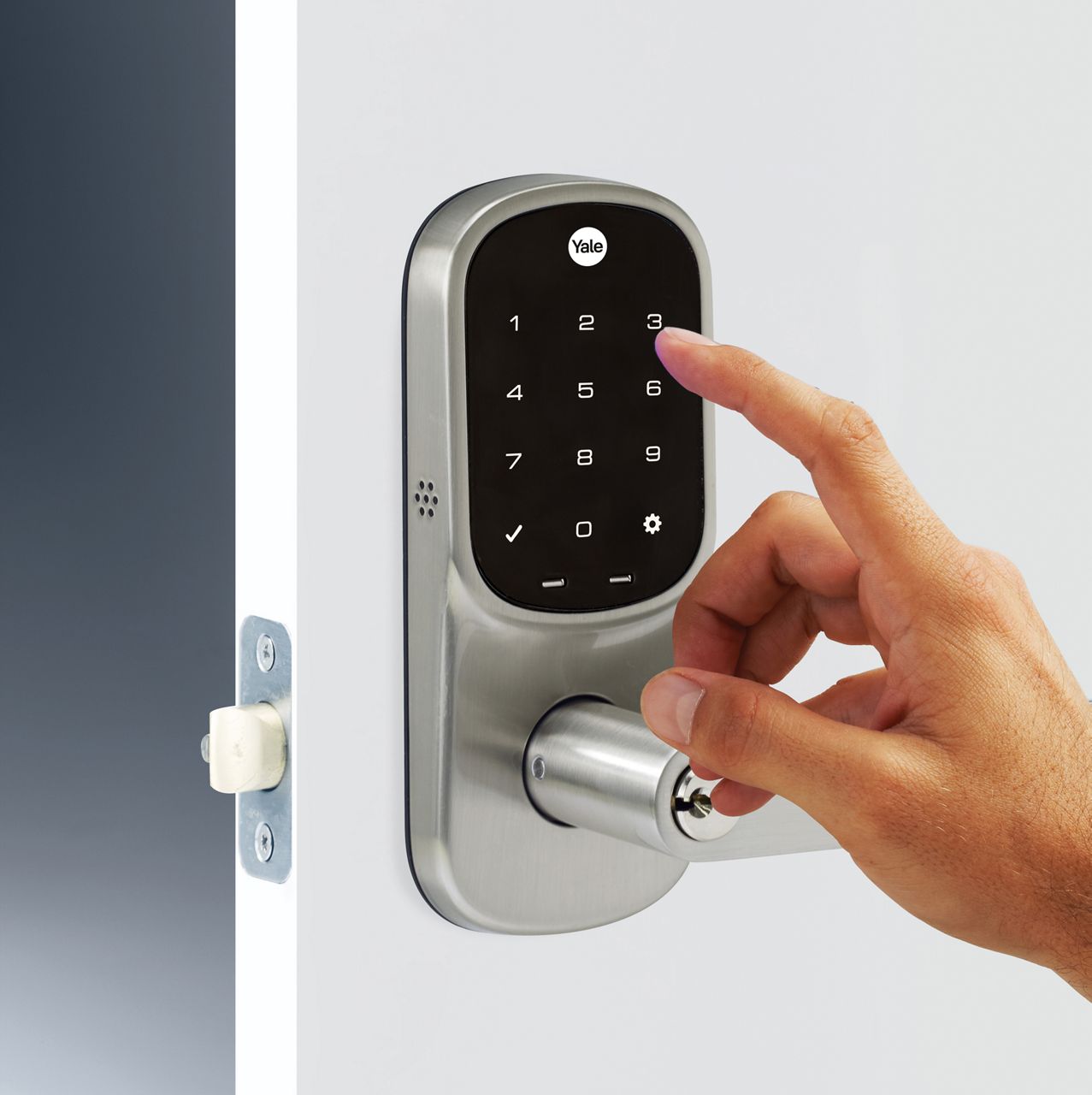

Unlock your door with a personalised PIN code. Register up to 100 users.

Guest accessGuest access

Guest access

Grant access to others for a few weeks, a few hours, or a few minutes. Never worry about your lost or stolen keys again.

Tamper AlarmTamper Alarm

Tamper Alarm

The tamper alarm is a security feature that alerts you when your lock has been tampered with .Yale Home App users will also receive a notification via the App whenever the tamper alarm sounds.

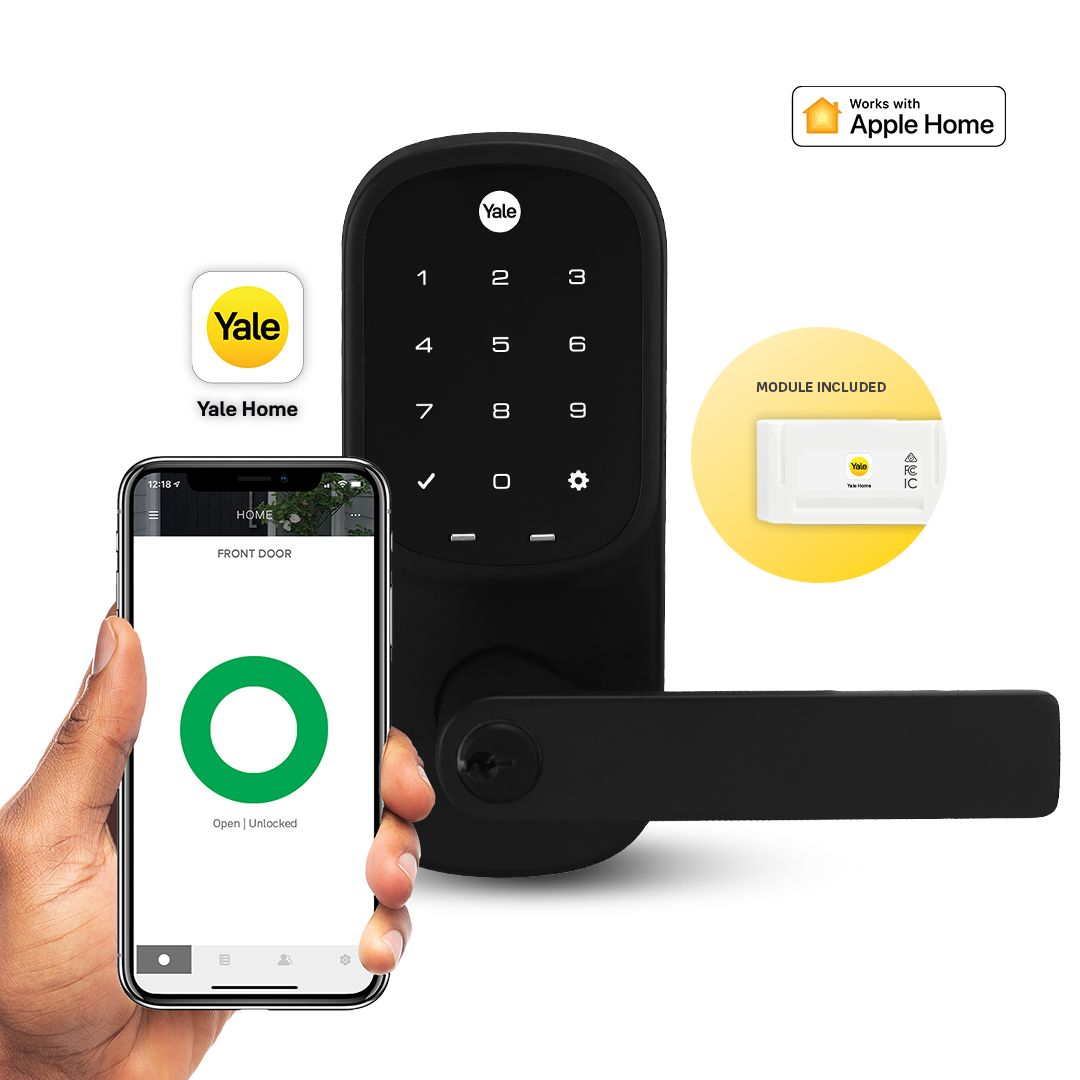

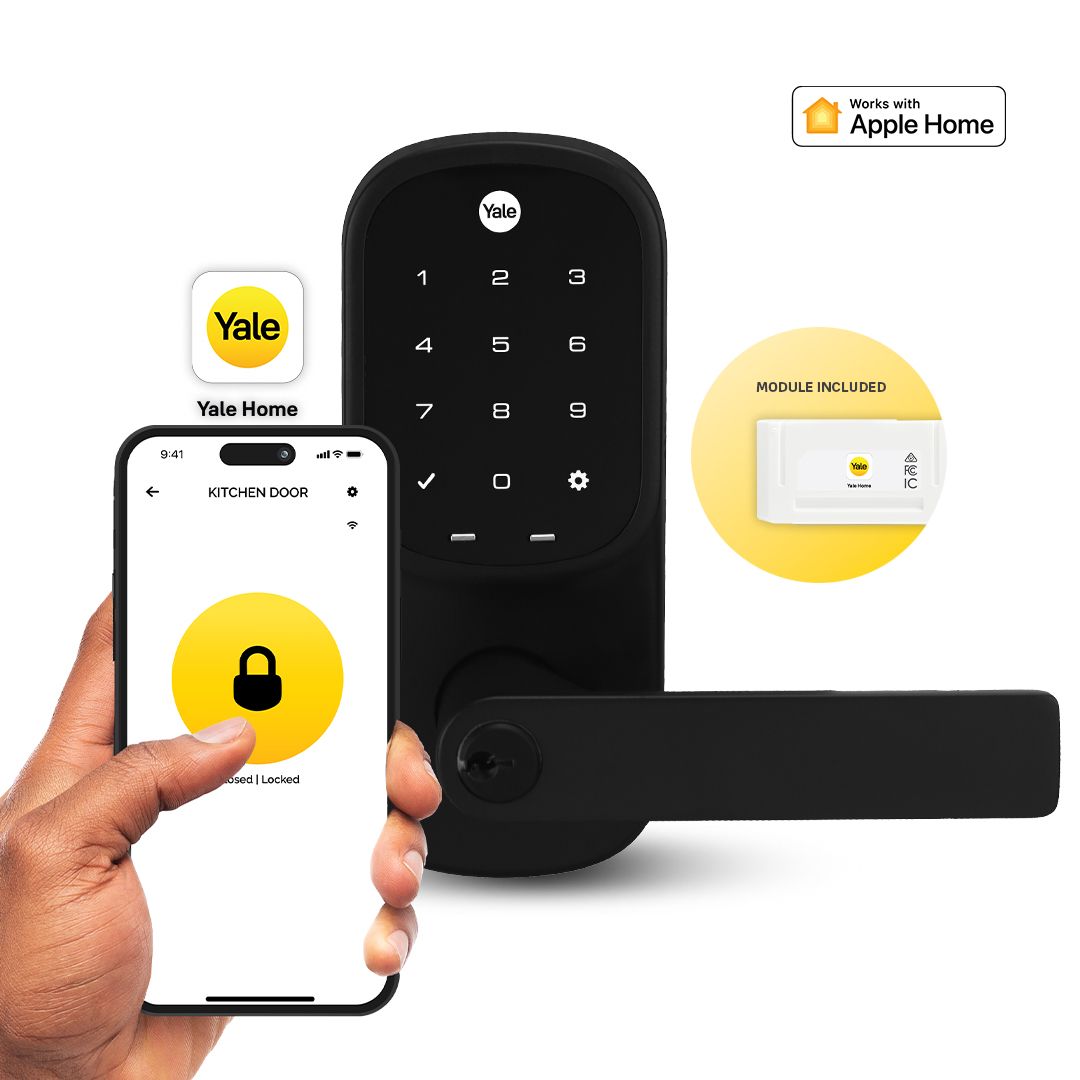

Yale Home App

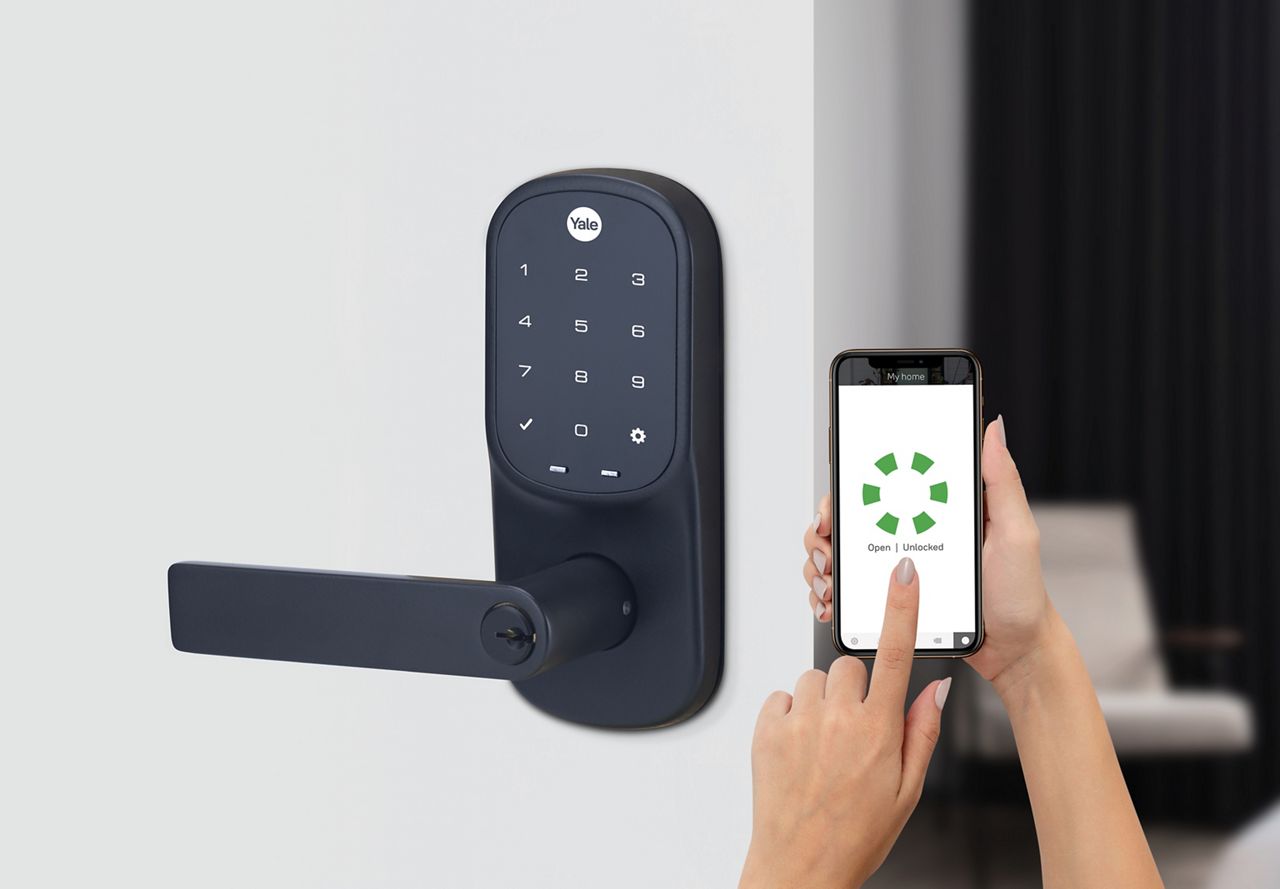

Yale smart locks can now be controlled through the use of the Yale Home App, giving you total control over your lock. You are able to lock and unlock your door, grant access to others and keep track of visitor access all via your mobile device.

Download on the App Store

Get it on Google Play

  • Backset Adjustable 60-70mm
    Power 4 x AA Alkaline batteries
    Body / Case Material Zinc
    Lock Type / Function Deadlatch Lever
    Door Thickness Range 35mm to 45mm
    Door Preparation 25mm latch hole and 54mm lock hole
    Lock Type Deadlatch
    Finish
    • Matt Black
    • Satin Nickel
    Warranty / Guarantee
    • Yale 3 year Electromechanical
    • Yale 10 Year Mechanical Warranty
    Key Profile C4
    Operational Temperature Range -25C to 60C
    Operating Humidity up to 95%
    Approvals
    • RCM Compliant (EN 61000.6.3 2012 & EN 55032 2016)
    • ANSI/BHMA A156.39 RESIDENTIAL LOCKSETS AND LATCHES (Grade A)
    IP Rating IPX4

    Dimensions

    Products Supplied in Box

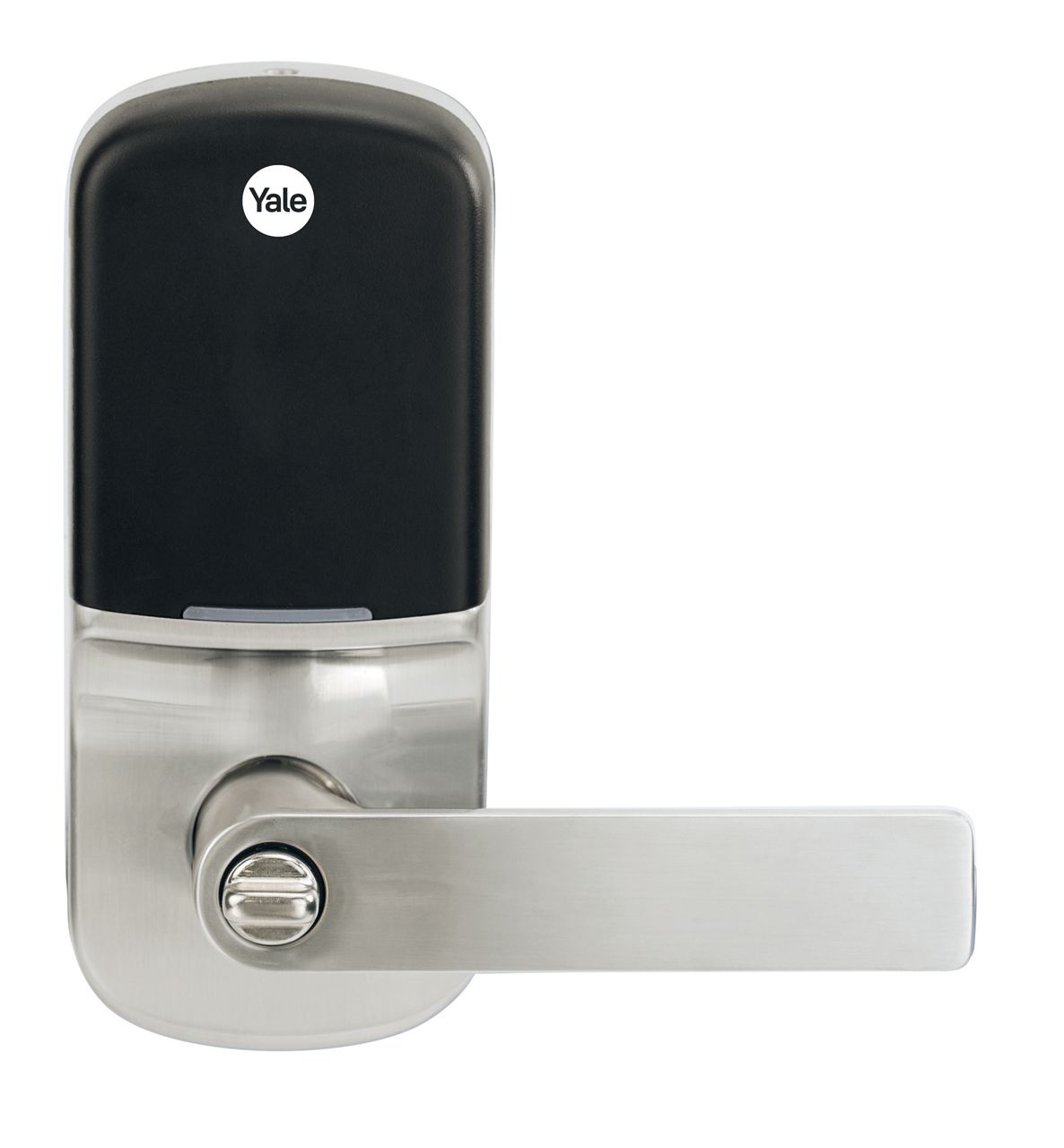

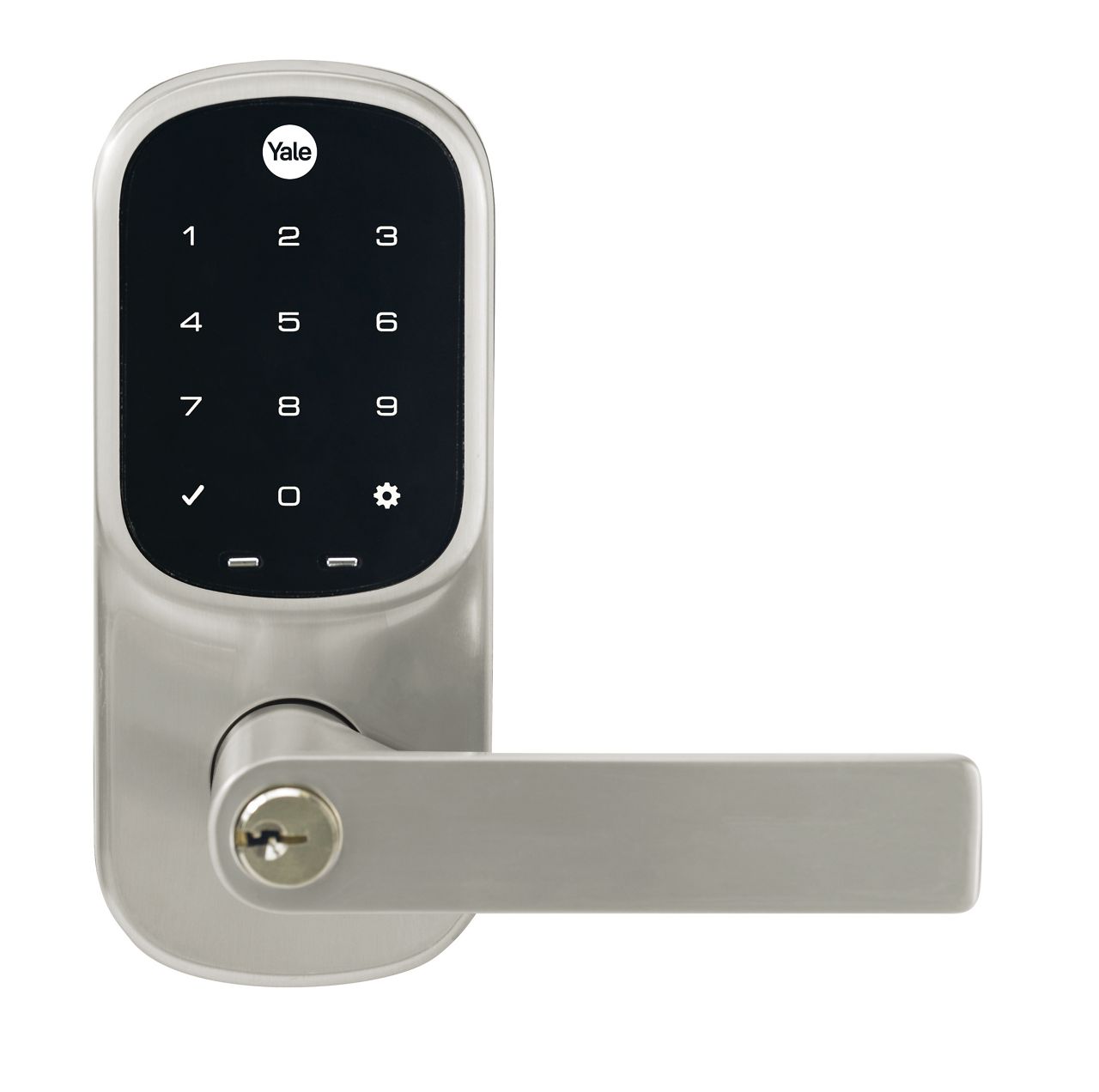

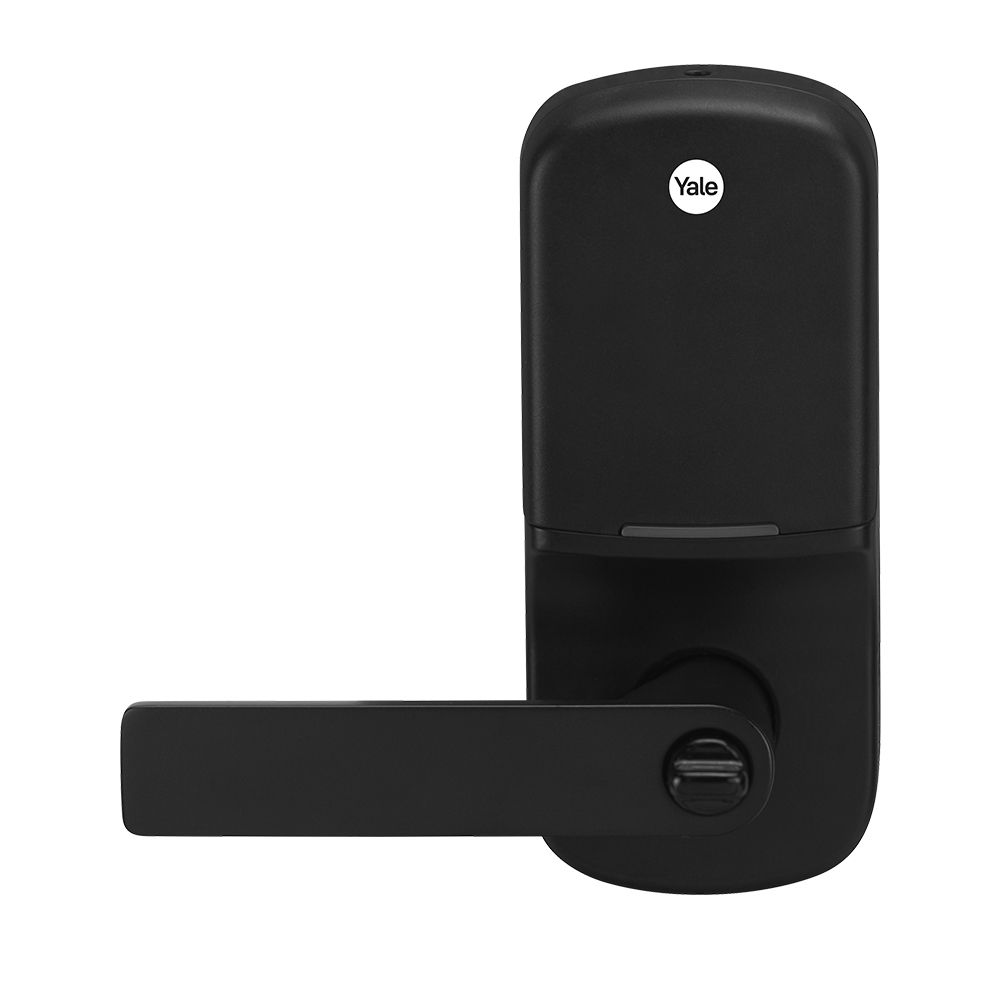

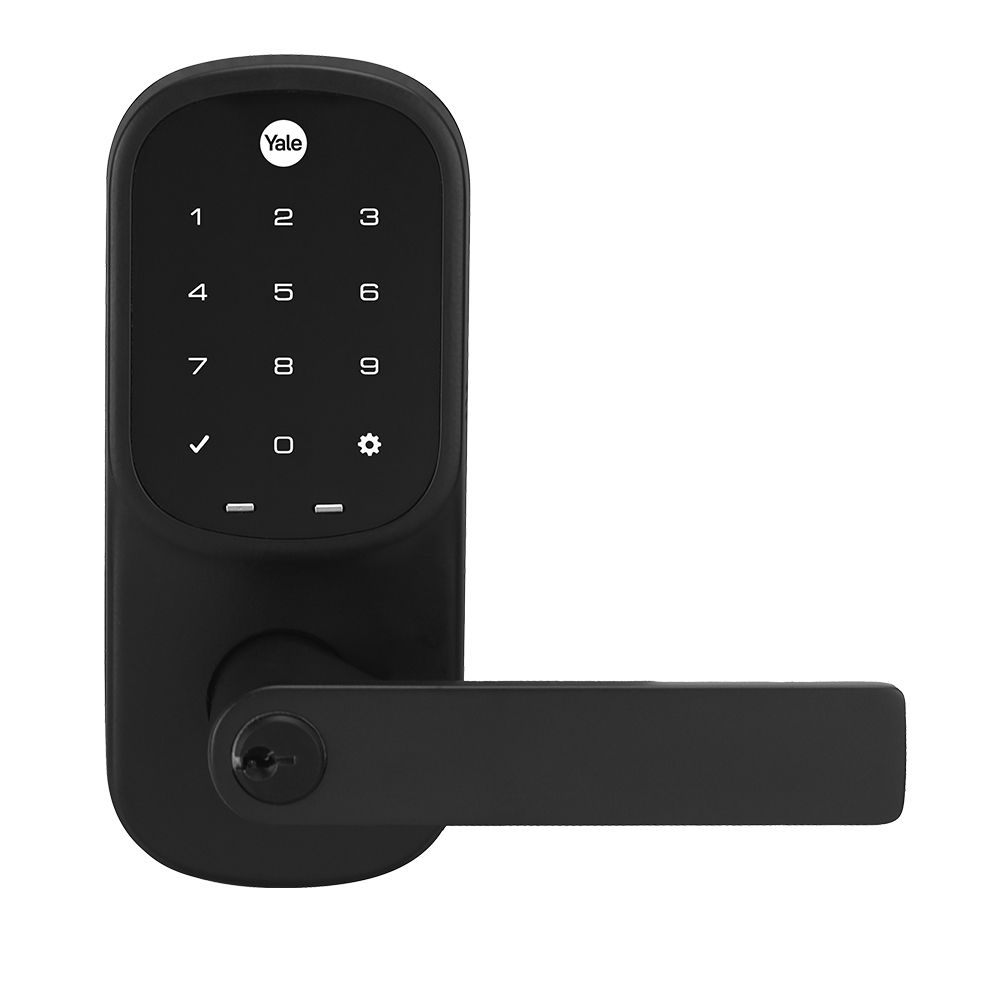

    • Yale Assure Lock® Lever
    • Yale Home App Module and Door Sense
    • Installation Guide
    • Mounting Screws
    • Door Template
    • 4 AA Batteries
  • DescriptionPart numberFinish

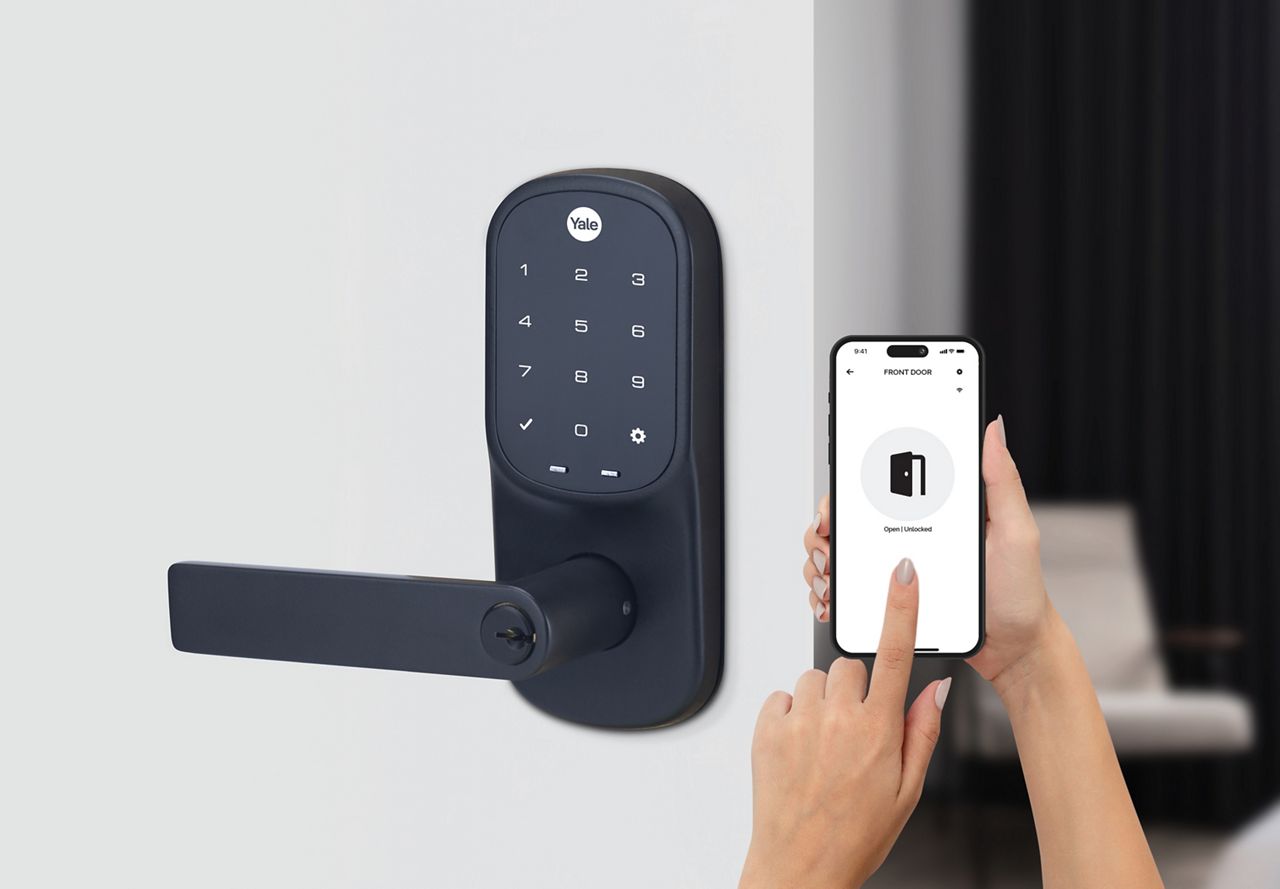

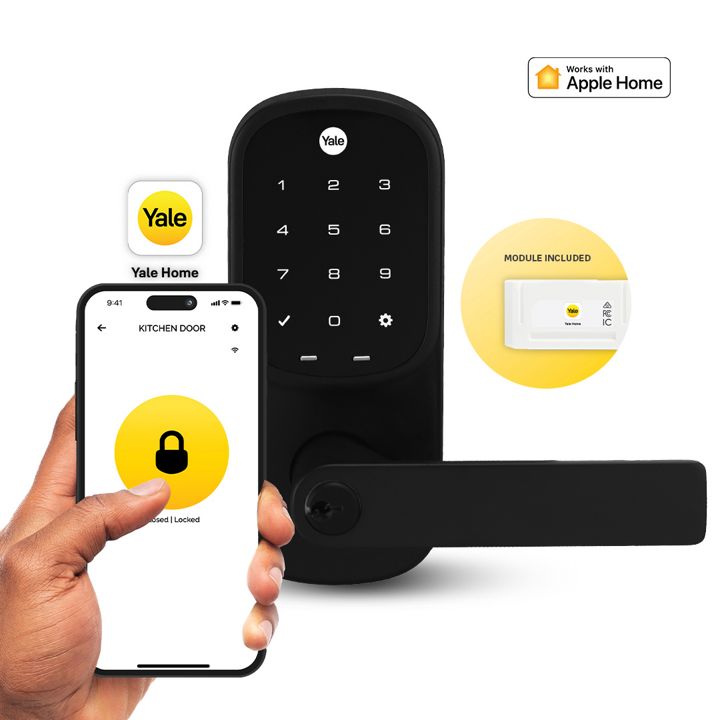

    Assure Lock® Lever KeyedYRL226HKMBKMatt Black

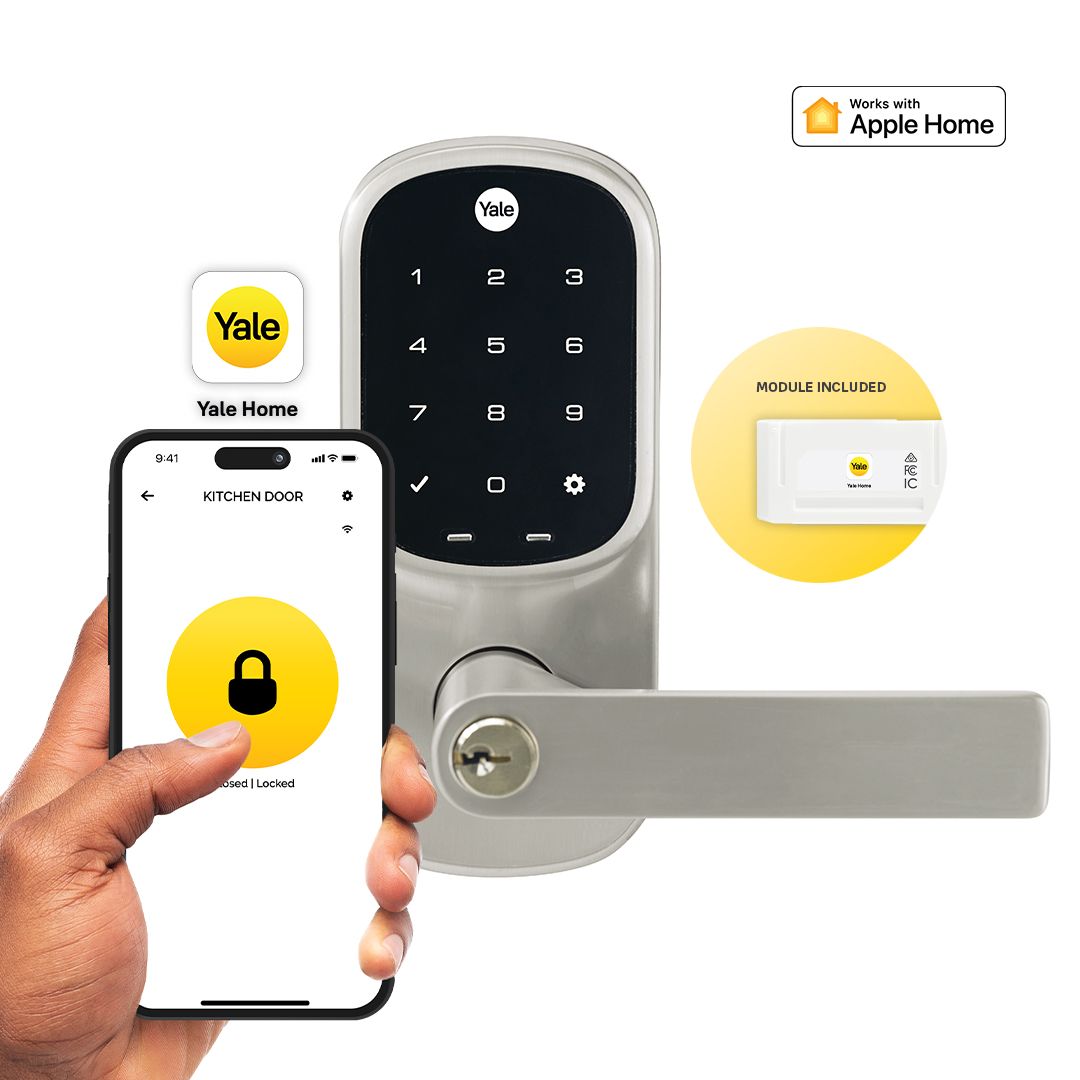

    Assure Lock® Lever KeyedYRL226HKSNSatin Nickel
    Yale Connect Plus Hub 2YAR/SWAA/HUB/-I-D
    Yale Assure Zigbee Network ModuleYRD-ZBM-1
    Yale Assure Z-Wave Network ModuleYRD-ZWM-1
