Simplicity Series Door Kits
The Yale Simplicity Series is total door solution specifically targeted at the multi-residential development new construction market. Supplied in a consolidated door kit the Yale Simplicity Series incorporates a range of stainless steel rose door furniture, a mortice lock and door closer specifically intended for use on apartment doors.
Benefits
- Lock, door furniture and door closer all site handable and provided in a consolidated entry door kit simplifying the supply and installation process
- 2 hour fire rated
- Complimented with passage and privacy lever sets for a total apartment solution
Door Thickness
32mm to 45mm
Fire rating
Yale Simplicity Series Leversets, Mortice Locks and Door Closers have been successfully tested up to 2 hours on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets.
Simplicity Mortice Lock:
Application
A cylinder mortice lock specifically designed for use in multi-residential apartment entry door applications.Benefits
Simple lock handing
Uses industry standard door preparation and cylinders for simple installation and keying.Features and Specifications
The Australian designed Simplicity Series Cylinder Mortice Locks are made from quality materials to meet the durability and strength requirements of apartment entry doors.Case and Faceplates
High purity zinc alloy material case
Stainless steel faceplatesBackset
60mm backsetLatch Bolts
Latch bolts are made with stainless steel, 15mm in size
Deadlatching is achieved by an auxiliary stainless steel latch bolt
Reversible for both left and right hand doors,
Separate auxiliary bolt moves into lock case simultaneously with latch bolt
Radius bolt provides greater deadlatch throw and smoother closing actionDoor Clearance
To ensure correct functioning of the deadlatching mechanism and security for all locks, the clearance between the door and the frame should be 3mm. The deadlatching will operate up to 5mm.Security
Conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008).Durability
Conforms with Level D6 (Durability) Australian Lock Standard (AS 4145.2-2008).Anti-Corrosion
Conform with Level C6 (168 hours) Australian Lock Standard (AS4145.2-2008).Cylinder
Requires standard Australian oval shaped cylinders.
Functions require the use of different cams and adaptors.Finishes
Stainless Steel SSAnti-lockout
Anti-lockout function is achievable anti-lockout adaptor. Sold SeparatelySimplicity Series Door Closer:
The Yale Simplicity Door Closer compliments the entire Yale Simplicity suite in offering an appealing design aesthetic as well as providing for the unassuming functionality that is expected in a fire rated door closer.
Application
Ideally suitable for multi-residential projects and supplied only with the Yale Simplicity Kit inclusive of mortice lock and door furniture.
Pull side installation only.
Suitable for doors up to 950mm in width
60kg maximum door weightFunctionality
Backcheck as standard
Independent 2 Stage Valve AdjustmentMaterials
Aluminum cast body, high quality steel internal componentry, aluminum slide rail assembly.Standards

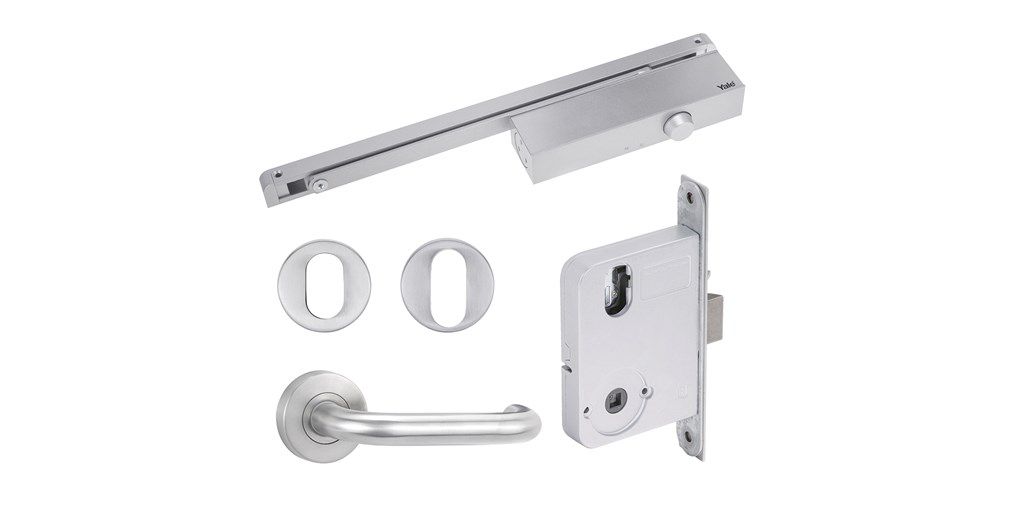

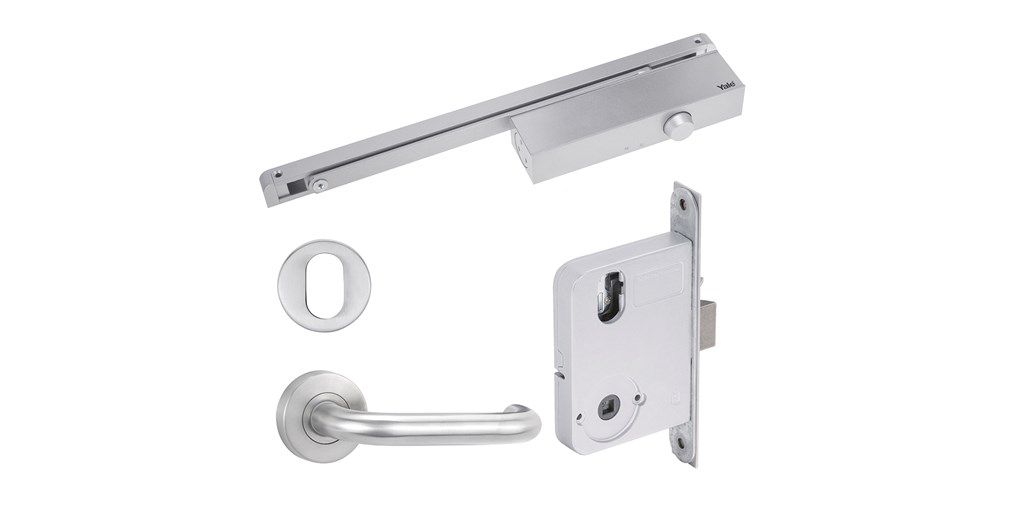

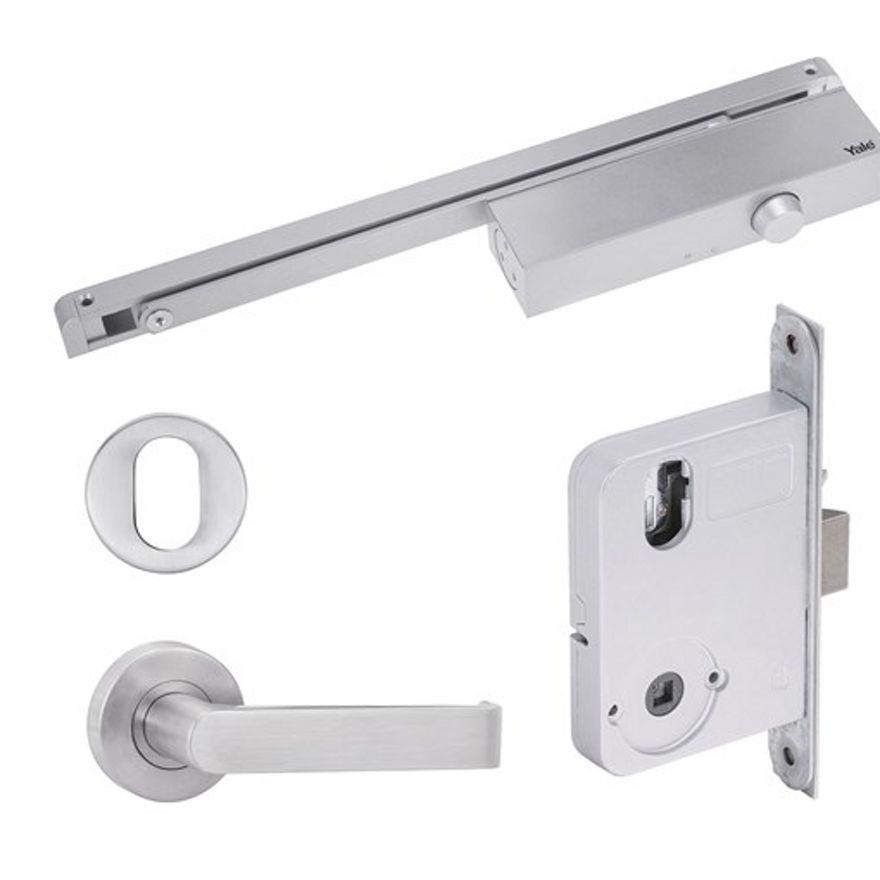

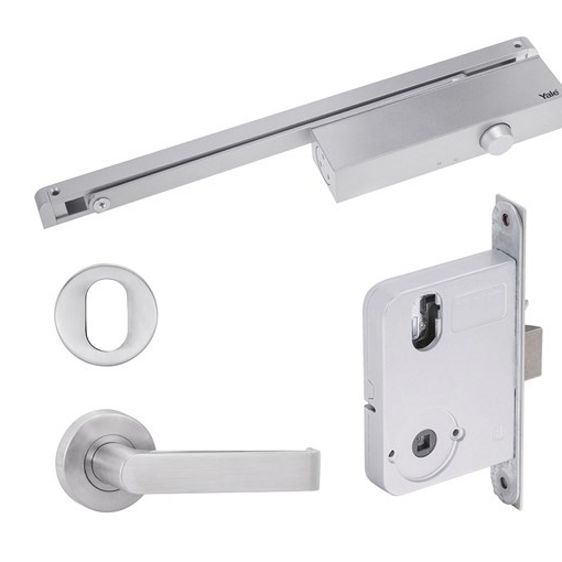

CE Certified Size EN3 (Pull Side Only)Description Part number Barcode Yale Simplicity Kit Mortice Lock, Size 3 Slide Rail Door Closer, S1 Lever Set With Escutcheon YSK/S1SS 9348313026050 Yale Simplicity Kit Mortice Lock, Size 3 Slide Rail Door Closer, S1 Lever Set With Escutcheon & Turn YSK/S1TSS 9348313026067 Yale Simplicity Kit Mortice Lock, Size 3 Slide Rail Door Closer, S2 Lever Set With Escutcheon YSK/S2SS 9348313026074 Yale Simplicity Kit Mortice Lock, Size 3 Slide Rail Door Closer, S2 Lever Set With Escutcheon & Turn YSK/S2TSS 9348313026081
