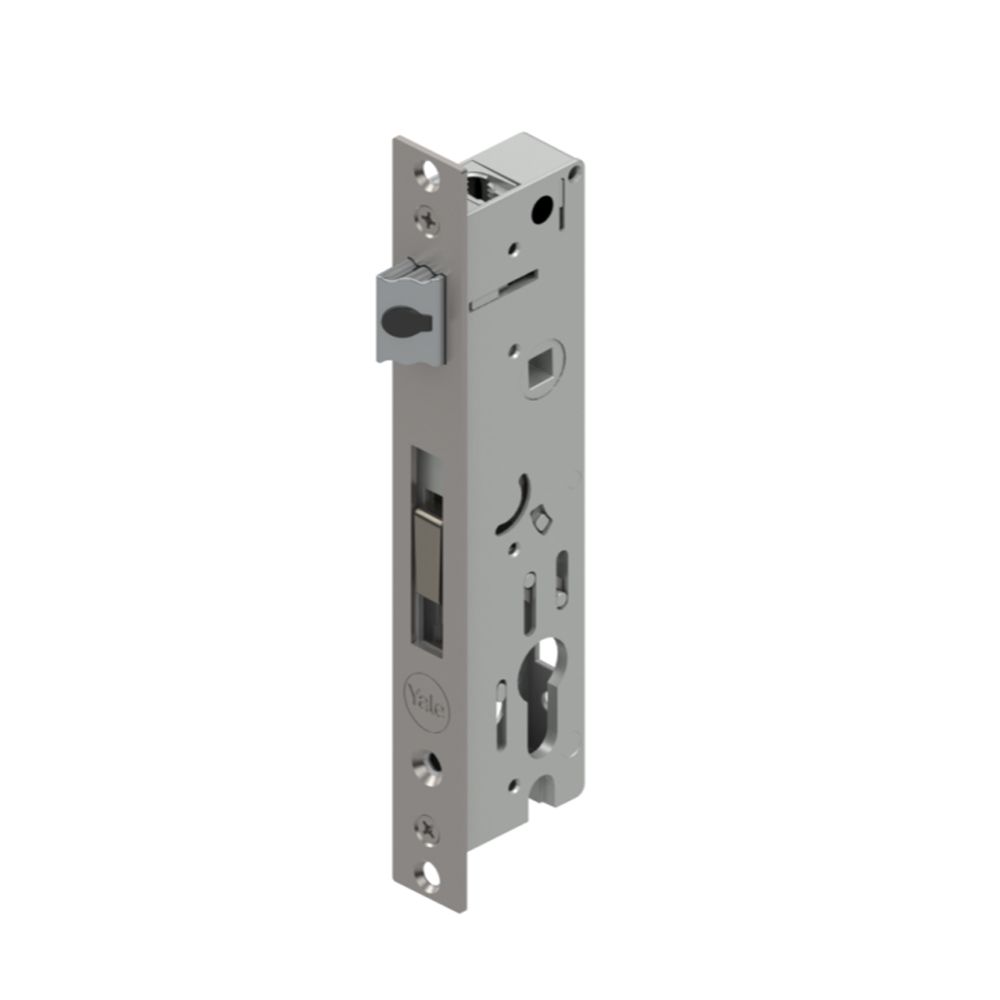

Induro® 4-Point Mortice Lock

The Induro® 4-Point Mortice Lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Induro® 4-Point provides increased security with up to four points of locking. The shootbolt provides added security and seal compression, designed specifically for the New Zealand environment.

The Induro® 4-Point Hinged Door Mortice Lock offers a new and improved locking system with added security and sealing compression for increased thermal efficiency. With four points of locking, there is increased security compared to a 2-point lock, but with the new Induro® 4-point, security has also been increased above any of the 4-point lock predecessors. The lift-bolt operation also improves sealing compared to a conventional projection bolt by compressing the door against the stile.

The Yale Induro® replaces the Optimum Mortice Lock, with upgraded features and specifications.



Features

  • Upgraded furniture option features a safety snib for at home security, enabling easy exit if required

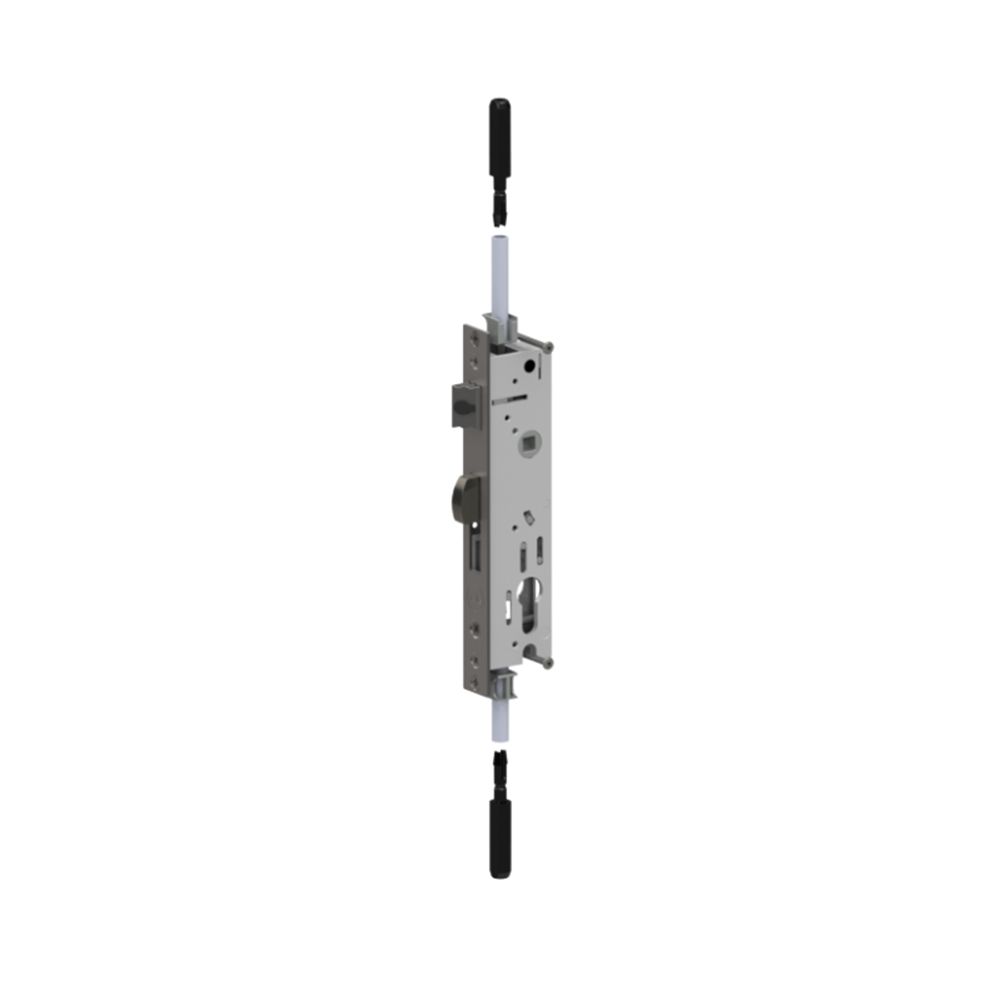

  • Features four points of locking including the latch, deadbolt and shootbolts
  • Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown)
  • When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
  • The handing of the lockset is adjusted by reversing the orientation of the latch bolt
  • Standard kits are supplied with furniture and keyed cylinder
  • Can be keyed alike to other ASSA ABLOY CYL4™ 5-Pin locks for one key convenience
  • Achieves Australian Standards AS4145: 1993 (Part 2) Security Level S2 and Durability Level D2
  • New Zealand made

New and improved design and sealing capabilities

When you're looking for a new lock, you want to make sure that it's going to deliver on its promises. That's why we've designed the Yale Induro® 4-Point Hinged Door Mortice Lock to be more durable and resistant to the elements than its predecessor, while still maintaining the same level of efficiency and ease of use.

With its new reinforced design, the Yale Induro® 4-Point Hinged Door Mortice Lock is an ideal choice for anyone looking to upgrade their current locks - whether they are seeking increased environmental friendliness or simply want a better-performing product.
    • Available with 30mm, 40mm, 50mm, or 60mm backset
    • Short Throw 4-Point
    • Long Throw 4-Point
    • Available with standard Verona and Palladium furniture or upgrade to Palladium Xtra with LockAlert™ and safety snib
    • Double cylinder, cylinder and turnknob, half-cylinder or half turnknob

    Operation Modes

    • Single point - Latch
      Latching mode operates like a regular passage door, with just the single-point latch in operation. Conventional handle-down retracts latch to open the door, and on door closing, the lock will self-latch without any additional input.
    • 4-Point / Multi-point – Lift bolt and projection bolts/remotes
      Multi-point compression locking is activated manually by lifting the handle.
      Lifting the handle throws the lift bolt and the shoot bolts.
      Pulling the handle down retracts all locking points together in a single operation.

    Lock Status

    • Passage Mode
      Passage mode gives convenient access from inside and outside without the need for a key.
    • Safety Mode
      Safety mode is activated and deactivated by operating the snib lever from inside and requires the key to unlock from outside
    • Secure Mode
      Handles are locked securely from both inside and outside and require a key to unlock from either side.
  • 202211_YA_INDURO4P-FLY(PDF, 1 MB)

How do you operate a 4-point lock?

Step 1: Lift the door lever/handle; this will engage locking rods at the top and bottom of the door into the door frame.

Step 2: lock the door with your key; this will engage a throw bolt and secure the latch and rods.

Similar products

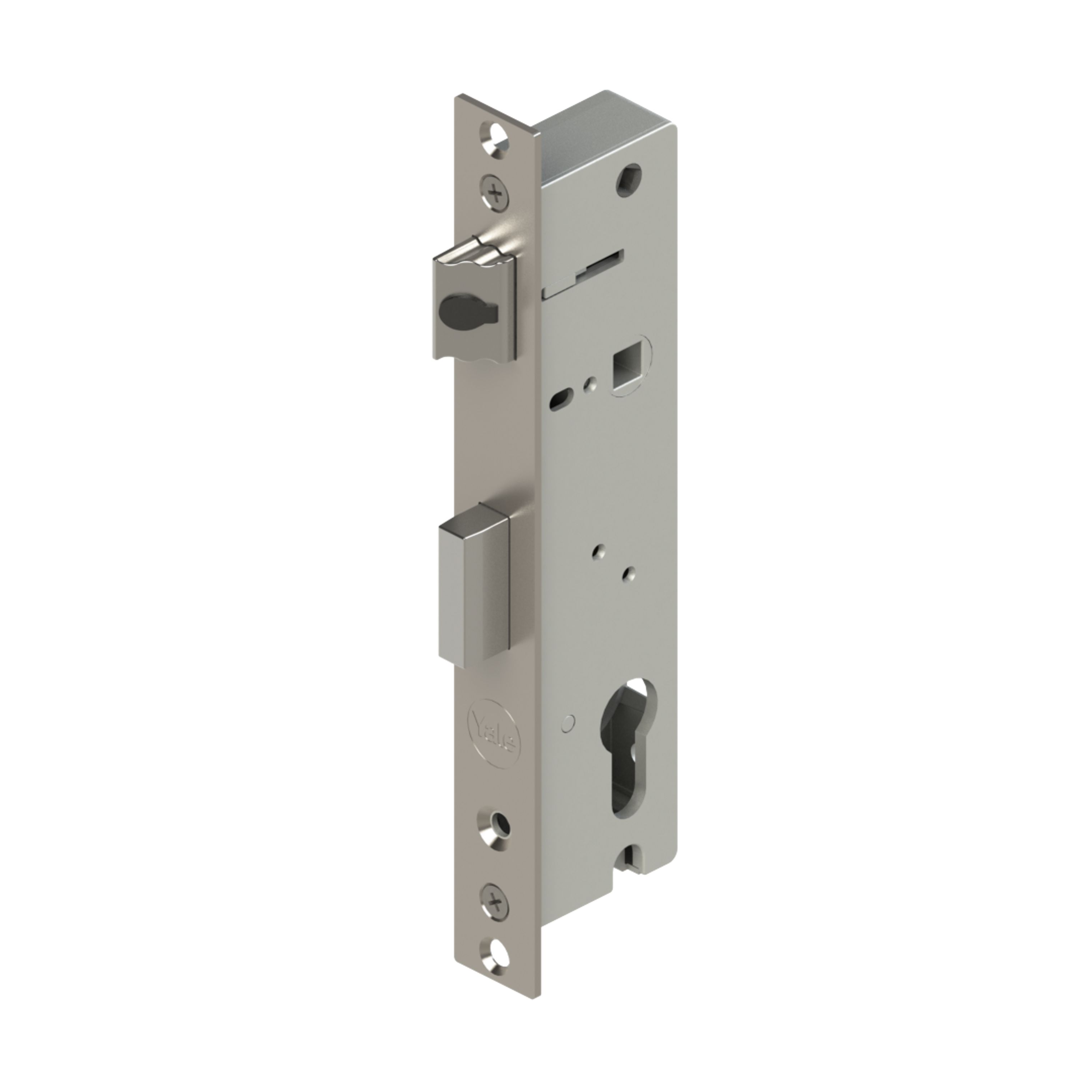

  • Induro® 2-Point Mortice Lock
