• VL5340 Series

    Knob Style

    VL

    Model No.

    534

    Function

    2 - Privacy, Bedroom or Bathroom



    7 - Entrance

    Finish

    US15 - Satin Nickel

    Backset Code

    B60 = 60mm



    B70 = 70mm

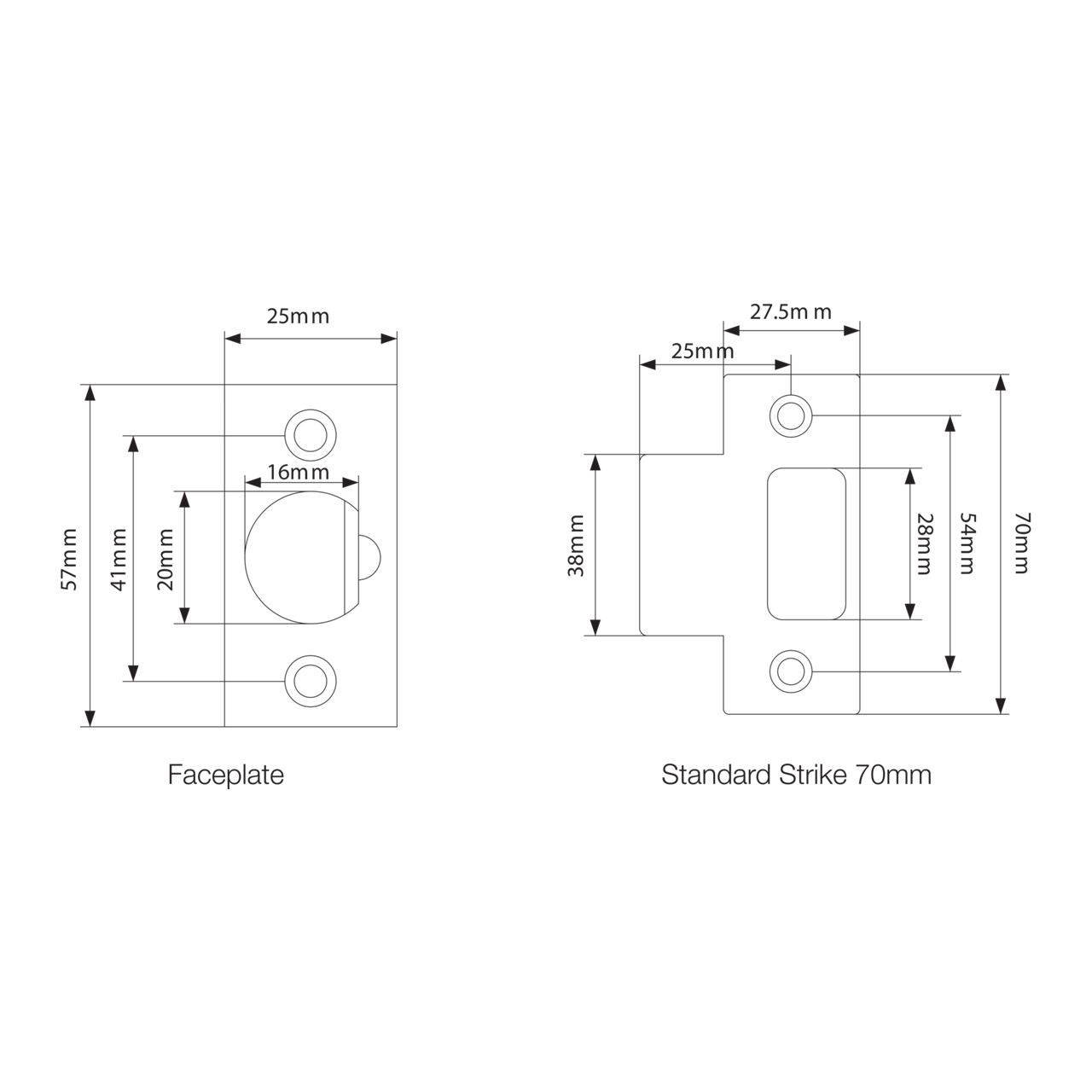

    Strike Code

    S70 Strike Length = 70mm (Standard Offering)

    Backset

    60 / 70mm

    Door Thickness (T1)

    35 - 50mm

    Standard

    ANSI / BHMA A 156.2 2003 Grade 3

    Testing Cycles

    200,000 Cycles Tested Guaranteed

    Material

    - Chassis: Steel



    - Latch and Bolt: Zinc



    - Strike: Stainless Steel / Steel



    - Knob: Stainless Steel / Brass



    - Rose: Stainless Steel / Brass

    Anti-Sawing Insert

    Hardened Steel

    Cylinder

    Solid Brass Tumble Cylinder

    No.of Pin

    5 Pins

    No. of Key

    3 pcs of Nickel-Plated Brass Key

  • NameFunction
    VL5342 US15 Privacy
    VL5342 US15 Entrance

Similar products

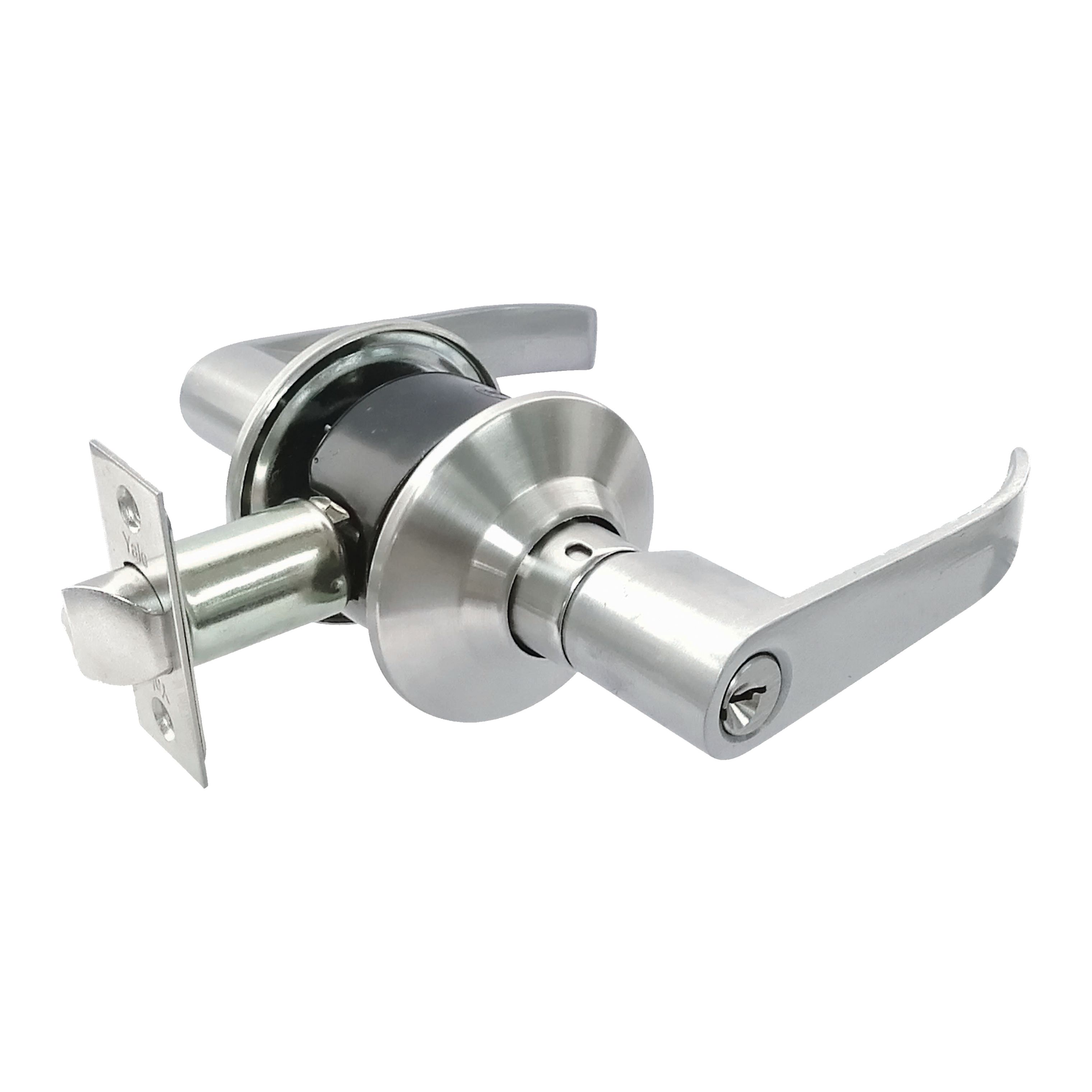

  • VL4420 Essential Series

    Standard Duty Cylindrical Leverset. Economic choice for light duty residential applications.
