Yale

Smart Mortice Locks

3 results

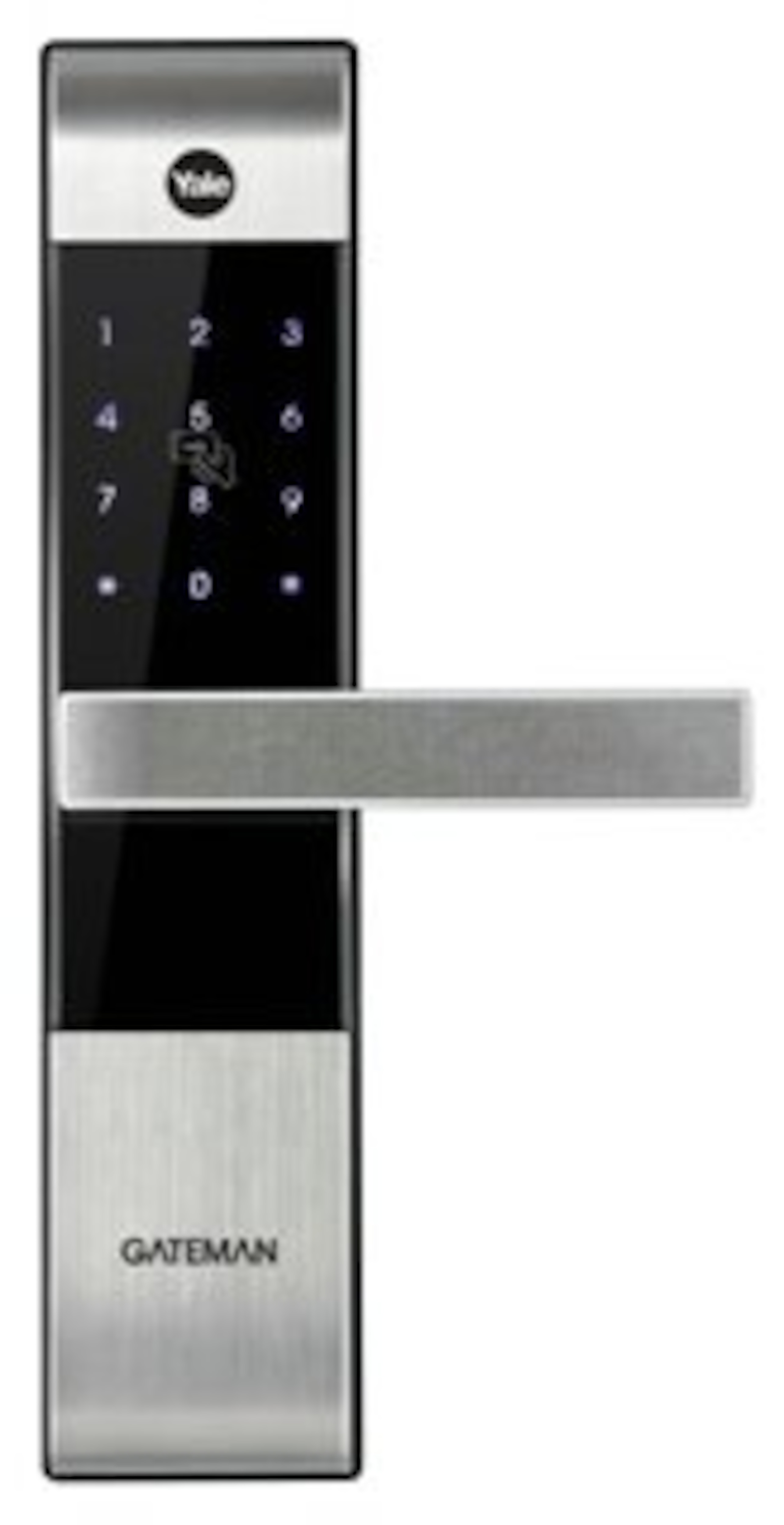

  • Smart Door Lock YDM3168

    YDM3168 is a digital door lock, suitable for steel and wooden doors (40 to 105mm). Its a 3 deadbolts motorized lock featuring 2 access options: RF card key & PIN code. Other features include alarm, fake code, automatic locking and integration.


    Features

    • PIN code: 6-12 digits
    • Proximity cards up to 40 users
    • Zigbee and Zwave integration module available (optional)
    • Mechanical keys override
    • Voice guidance available
    • Built-in 80db burglar alarm
    • Easy installation
    • Scramble code
    • Available in silver finish
    • Smart touchpad
    • Anti-panic egress with safe handle
    • Fake PIN Code
    • Automatic locking
    • Low battery alarm
    • Emergency power with 9V battery
    • Remote control (optional)



    Specifications

    • Motorized mortice lock
    • Backset: 60mm
    • Door Thickness: 40 to 105mm
    • 4 x AA batteries
    • Available for wooden and steel doors
    • Automatic lock mode
    • Operation temperature: -15 to +55C
    • Suitable for left or right opening
    • Dimensions: front body 311 (D) x 64 (W) x 26 (H) mm; back body 311 (D) x 72(W) x 31 (H)mm
    • Compatiable for both Left and Right side door opening.

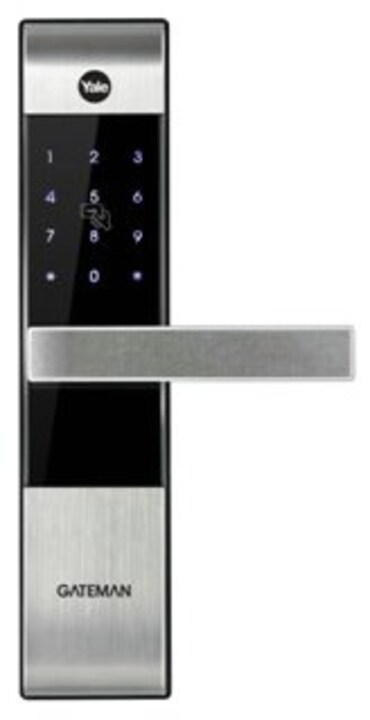

  • Smart Door Lock YDM3109

    YDM3109 mortice lock is a smart solution for residential & light commercial applications. 2 access solutions to open your door: RF Card key & PIN code. With innovative features such as alarm, fake code detection and automatic locking, YDM3109 offers you secure access and peace of mind.



    • Various access options - Yale YDM3109 has two access solutions, PIN code or proximity card key for your convenience.
    • Fake PIN code - You can make an instant PIN code for security.
    • Operation status notification - Whenever any operation is made, the keypad informs you what has happened through different alignment of the numbers.
    • Mechanical key override - For emergency, it can also be unlocked with a mechanical key.
    • Missing key invalidation - Once you lose your key, it has no validation as long as you re-register your keys.
    • Automatic locking - The Yale Digital Door Locks series automatically locks the door after checking it is properly closed. (Manual operation is also available.)
    • Anti-panic egress with Safe handle - For convenience and in case of emergency, the door is automatically unlocked whenever the inner lever handle is used. And also safe handle will protect from any break-in attempts.
    • Alarm (Break-in/ Damage) - 80dB alarm goes off if anyone attempts to damage the lock or force the door open, or if the lock detects.
    • Low battery and emergency power - It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with the standard 9V battery.
    • Remote Control (Optional) - Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50 m.



    Specifications

    • Type: Mortice lock
    • Proximity Card keys: 4 (Max 40)
    • Mechanical keys: 2
    • PIN Code: 6-12 digits
    • Finish: Silver
    • Suitable for left or right opening

  • Smart Door Lock YDM4109

    YDM4109 mortice lock is a smart solution for residential & light commercial applications. It offers 2 access solutions to open your door: fingerprint & PIN code. It's innovative features such as alarm, fake code detection and automatic locking provide secure access and peace of mind.



    • One-touch Fingerprint Verification Method (Easy Scan) - Easy scan technology has been applied to coveniently read a fingerprint in one shot without the need to open or close the cover to enter a fingerprint.
    • Voice Guide Feature - This feature lets you kknow the operation status and how to set each feature and mode for easier and more convenient use.
    • Smart Touchpad - To prevent the password from being exposed due to residual fingerprints after opening a door, a new technology has been adopted to complete the door opening process by touching the keypad with a palm after entering the password.
    • Anti-panic egress with Safe handle - For convenience and in case of emergency, the door is automatically unlocked whenever the inner lever handle is used. Safe handle will also protect from any break-in attempts.
    • Scramble code - You can add meaningless number prior to or after the right code when there is a chance of exposing is to others.
    • Alarm (Break-in/Damage) - 80dB alarm goes off if anyone attemptsto damage the lock or force the door open, of if the lock detects.
    • Security/Normal mode - For multi-use environment, YDM4109 can be turned to Security (Master) mode that the master can register and delete each user while Normal mode controls all the users at one time.
    • Operation Status Notification - Whenever any operation is made, the keypad informs you what has happened through different alignment of the numbers.
    • Low battery alarm and emergency power supply terminal - It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with the standard 9V battery.





    Specifications

    • Type: DIN type mortise lock
    • Pin code (6-12 digits)
    • Fingerprint reader (up to 20 users)
    • Mechanical key: 2
    • Center distance: 72mm
    • Backset: 60mm
    • Door thickness: 40-80mm
    • IP 55
    • Operating temperature: -15 to +55 °C
    • Suitable for left or right opening

Showing 3 of 3
