Yale

Linus® Adjustable Cylinder

Make your door smarter with Linus® Smart Lock L2 designed to secure and simplify your life. Depending on what kind of euro profile cylinder is currently in your door, you may need to change it in order to be compatible with the Linus® Smart Lock.

The Linus® Adjustable Cylinder is guaranteed to work with the Linus® Smart Lock.There is no need to measure your door as the adjustable cylinder is designed to expand to fit your door.

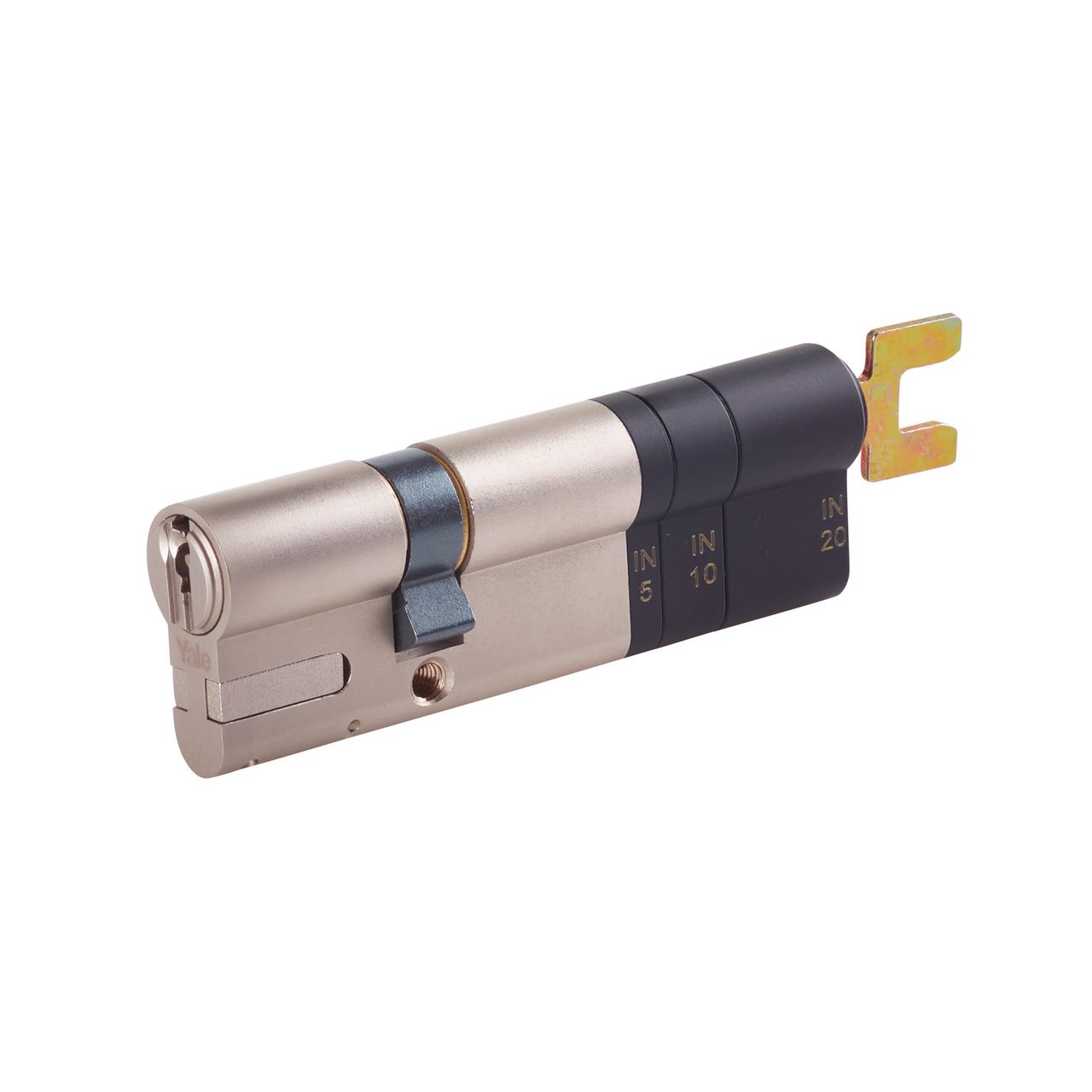

Make the Linus® Adjustable Cylinder the same length as your current euro profile cylinder using the appropriate external and internal spacers.

  • Features:

    YALE LINUS ADJUSTABLE CYLINDER
    - Guaranteed to work with the Linus® Smart Lock. Depending on what cylinder lock is currently in your door, you may need to change it in order to be compatible with the Linus® Smart Lock.

    ONE SIZE FITS ALL
    - Designed to replace almost any sized cylinder lock. Refer to our compatibility checker on our website to see if you can install Linus on your existing cylinder lock. Make the Linus® Adjustable Cylinder the same length as your current cylinder lock using the appropriate external and internal spacers.

    ALLOWS THE YALE LINUS® TO WORK ON THE FOLLOWING DOORS
    - Where the Euro profile cylinder lock has no emergency function, meaning that the cylinder lock can't be operated from the outside when there is a key inserted on the inside of the existing cylinder.
    - Where there is a thumbturn on the existing cylinder lock.

    SAFE AND SECURE
    - 6 pin sawn key cylinder certified in accordance with DIN EN 1303:2015. Our Linus Adjustable cylinder includes impact protection such as anti-pick, anti-drill, anti-bump and anti-pull cylinder.

    EASY TO INSTALL
    - It takes just 15 minutes on average to install on your door, and 2 allen keys (included) and a screwdriver is all you’ll need. Refer to our how to video to install your Linus Smart Lock on the adjustable cylinder.

    LENGTH-ADJUSTABLE
    - Internal cylinder lengths:30mm minimum - 65mm maximum & 5mm size increments.
    - External cylinder lengths: 30mm minimum - 60mm maximum & 5mm size increments.

    2 KEYS INCLUDED
    - Option to order spare keys on our website with the code displayed on your security card.

    Specifications:

    • 30+30 Shortest cylinder variant: Internal cylinder lengths (30mm minimum - 65mm maximum | 5mm size increments)
    • 60+65 Longest cylinder variant: External cylinder lengths (30mm minimum - 60mm maximum | 5mm size increments)
    • EN1303:2015 standard
    • Classification code: 1 6 0 B 0 C 5 D
    • 6 pin sawn key cylinder
    • Anti-pick
    • Anti-drill
    • Anti-bump
    • Anti pull (7kN)

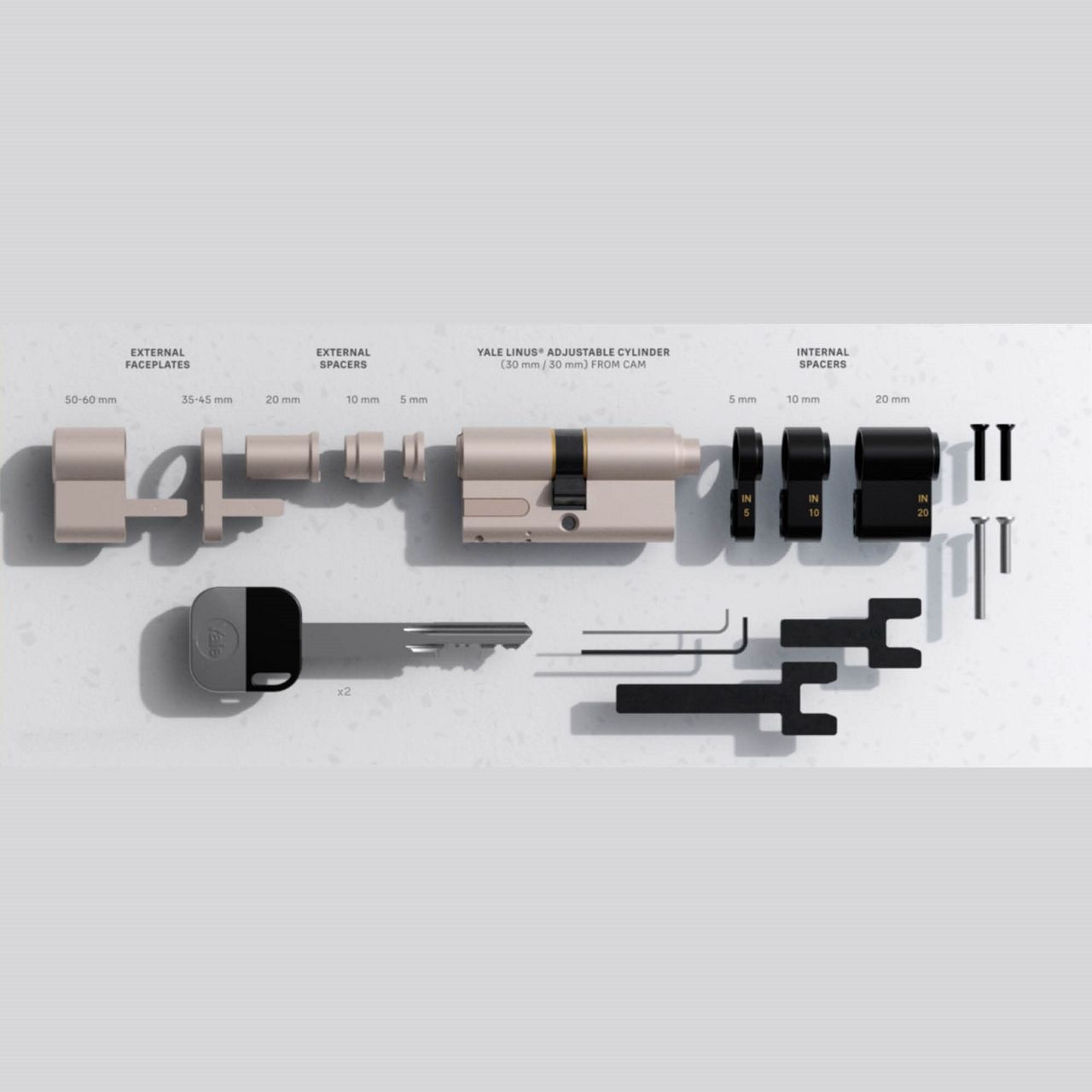

    What's in the box?

    • Yale Linus Adjustable Cylinder x1
    • Internal spacers x3
    • External spacers x3
    • External faceplates x2
    • Allen keys x2
    • Tail-bar x2
    • Screws x4
    • Keys x2
    • Key card x1
    • Quick start guide x1
