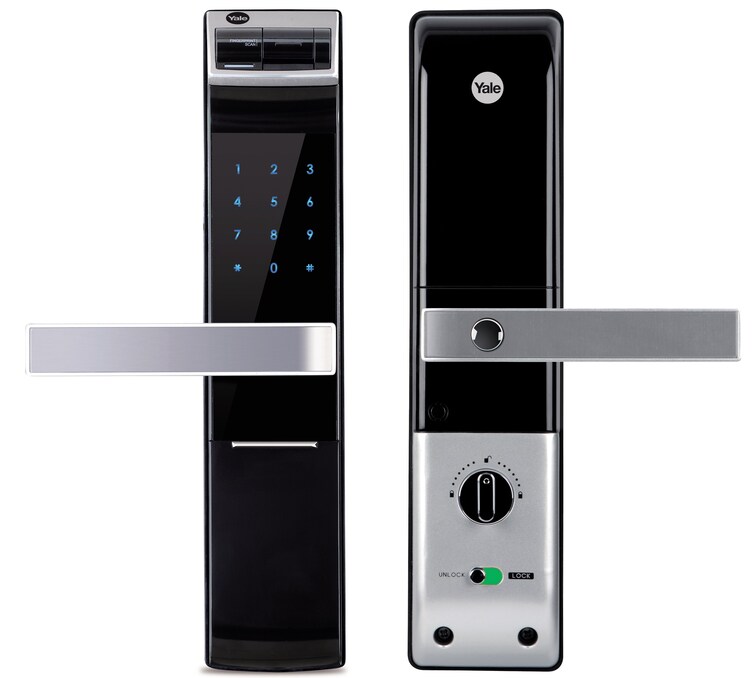

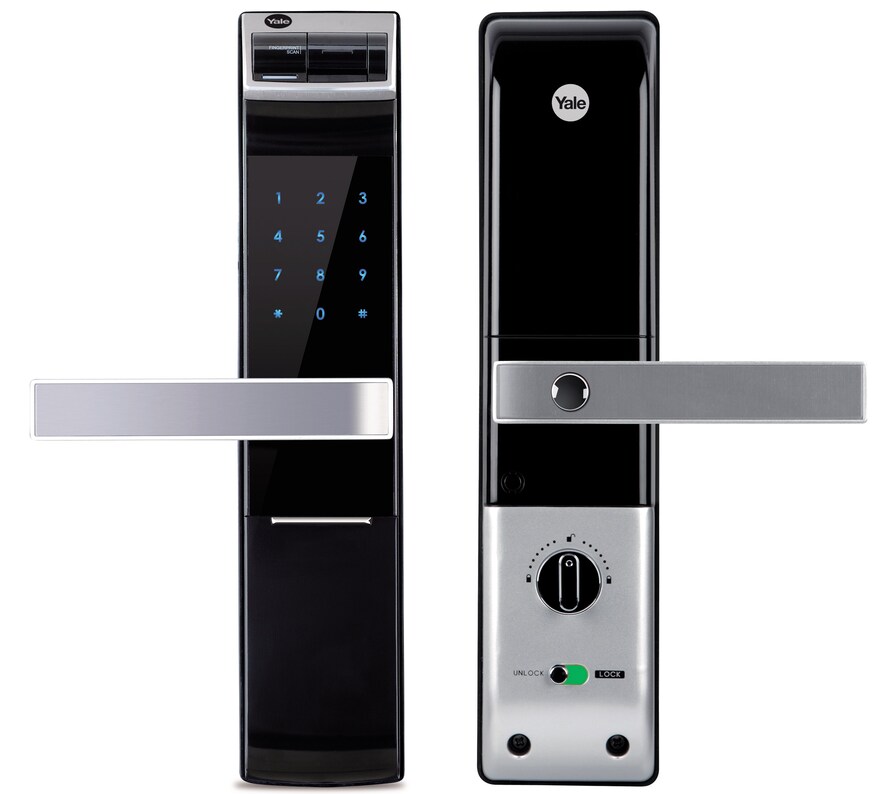

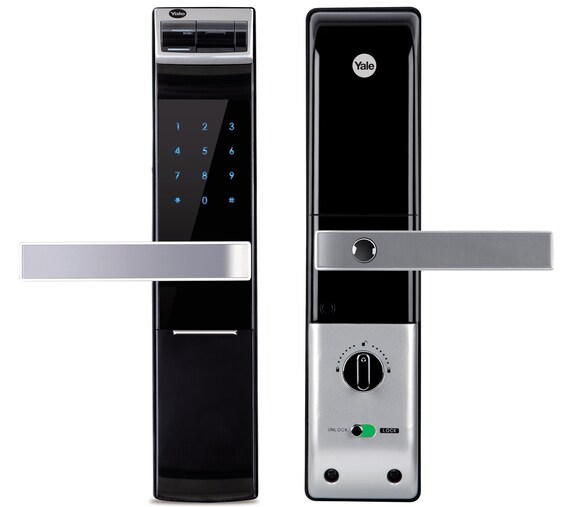

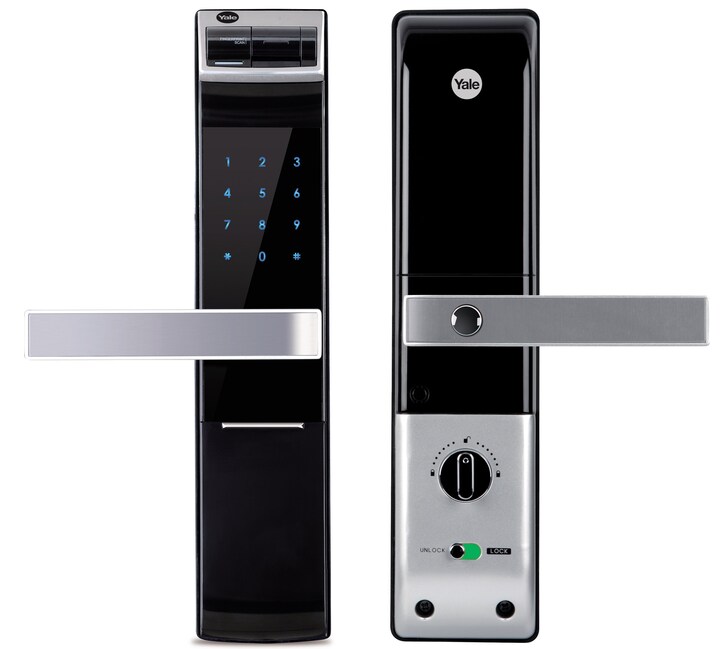

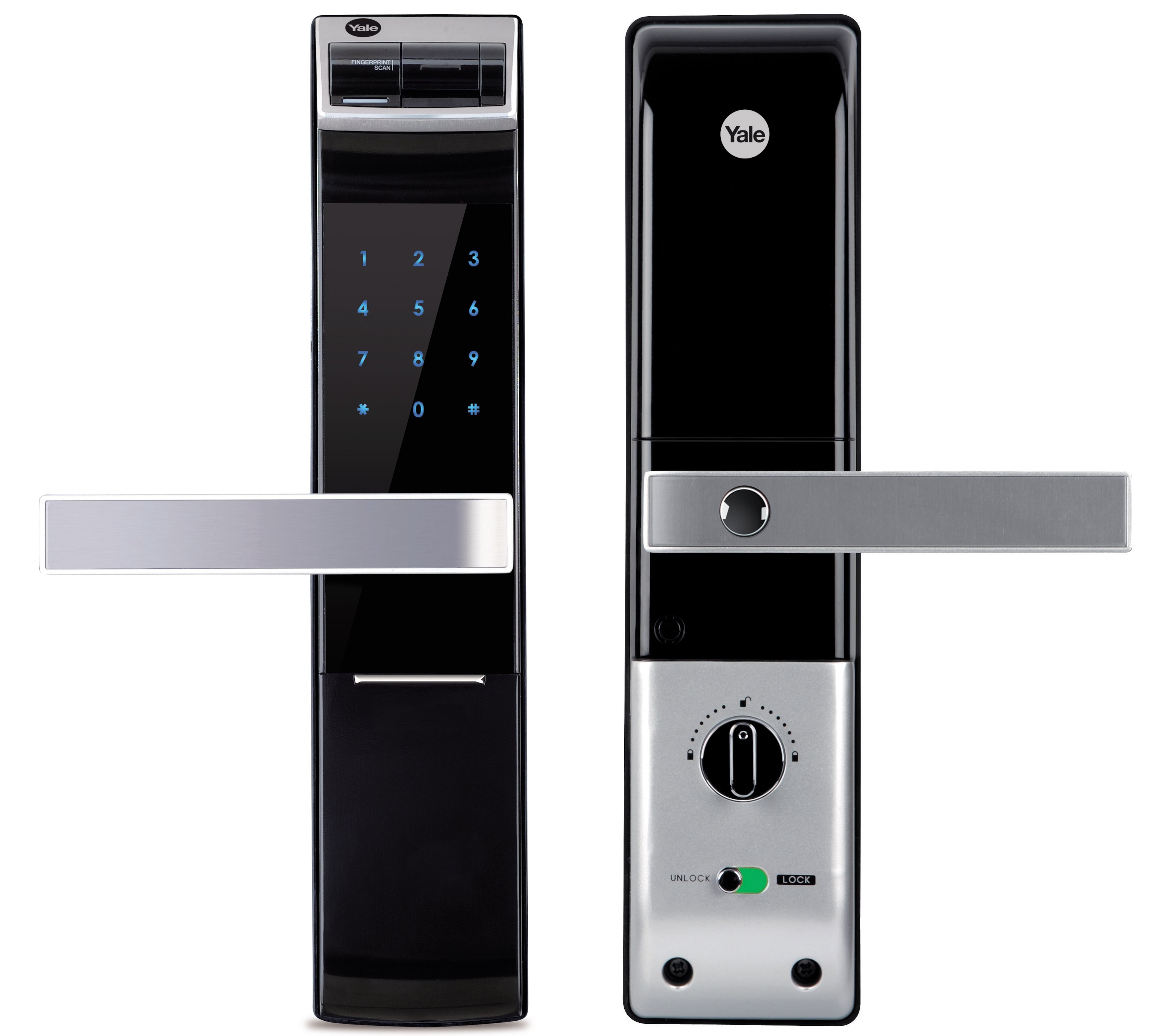

YDM4109

YDM3168 mortice lock is a new smart solution for residential & "light" commercial applications. High level of security with the 3 deadbolts motorized lock and 2 access solutions: RF card key & PIN code. The innovative features, such as alarms, fake code, automatic locking and integration feature, will provide comfort and will increase your feeling of security.

Specifications:

• Motorized mortise lock
• Backset: 60mm
• Door Thickness: 40 to 105mm
• 4 x AA batteries
• Available for wooden and steel doors
• Automatic lock mode
• Operation temperature: -15 to +55C
• Suitable for left or right opening
• Dimensions: front body 311 (D) x 64 (W) x 26 (H) mm; back body 311 (D) x 72(W) x 31 (H)mm

Features:

• PIN code: 6-12 digits
• Proximity cards up to 40 users
• Zigbee and Zwave integration module available (optional)
• Mechanical keys override
• Voice guidance available
• Built-in 80db burglar alarm
• Easy installation
• Scramble code
• Available in silver finish

YDM3109 mortice lock is a smart solution for residential & “light” commercial applications. 2 access solutions to open your door: RF Card key & PIN code. Innovative features, such as alarms, fake code or automatic locking, YDM3109 will provide comfort and will increase your feeling of security.

Specifications:

• Type: DIN type mortise lock
• Credentials:
  - Pin code (6-12 digits)
  - Proximity card: 4 (up to 40 users)
• Mechanical key: 2
• Center distance: 72mm
• Backset: 60mm
• Colour: silver
• Door thickness: 40-80mm
• Dimensions: front body 27 (D) x 68.6 (W)x306.6 (H)mm; back body 37(D)x72.8 (W9x 306.6 (H)mm
• Integration: available upon request-RF link
• IP 55: water resistant
• Suitable for left or right opening

Features:

• Double credentials (PIN code & RF Card key)
• Fake PIN code
• Operation status notification
• Mechanical key override
• Missing key invalidation
• Automatic locking
• Anti-panic egress with safe handle
• Alarm (break-in/damage)
• Low battery alarm & emergency power with 9v battery
