Yale 300
Light duty power selectable door closer.
- Rack and pinion mechanism
- Selectable size 2,3 & 4
- Adjustable closing and latching speed
- Max door width: 1100mm
- Max door weight: 85 kg
- Can be installed with standard or hold open arm
- Hold open type should not be installed on fire doors
- Available in silver & black
Black - Standard Arm Door Closer

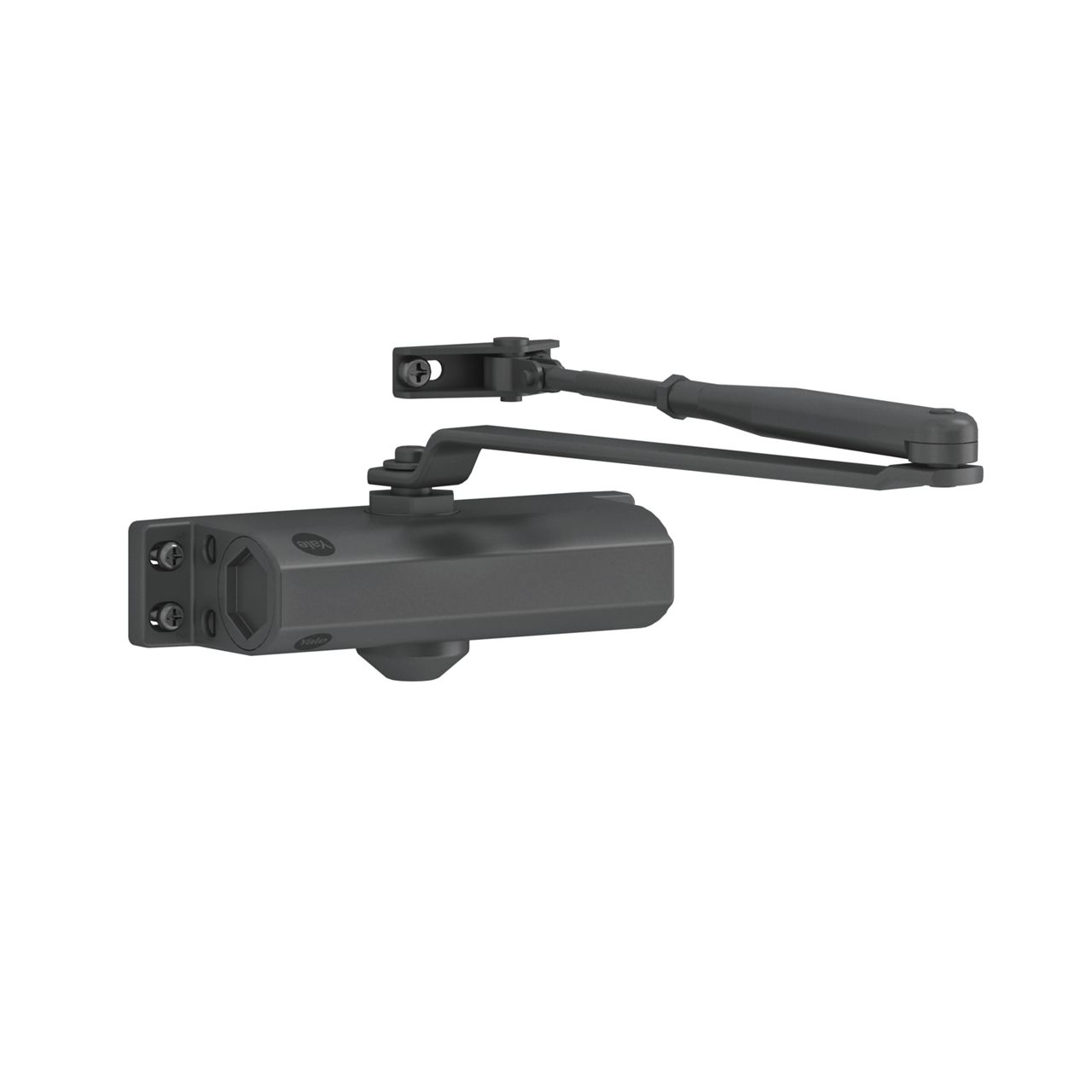

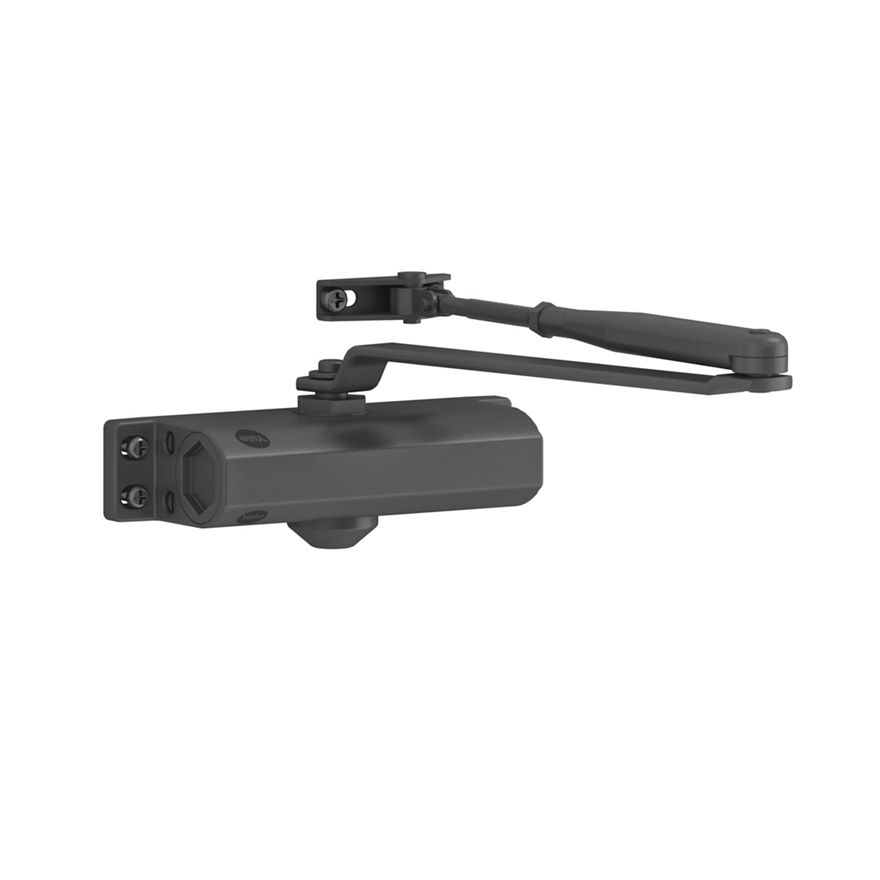

- Black - Standard Arm Door Closer

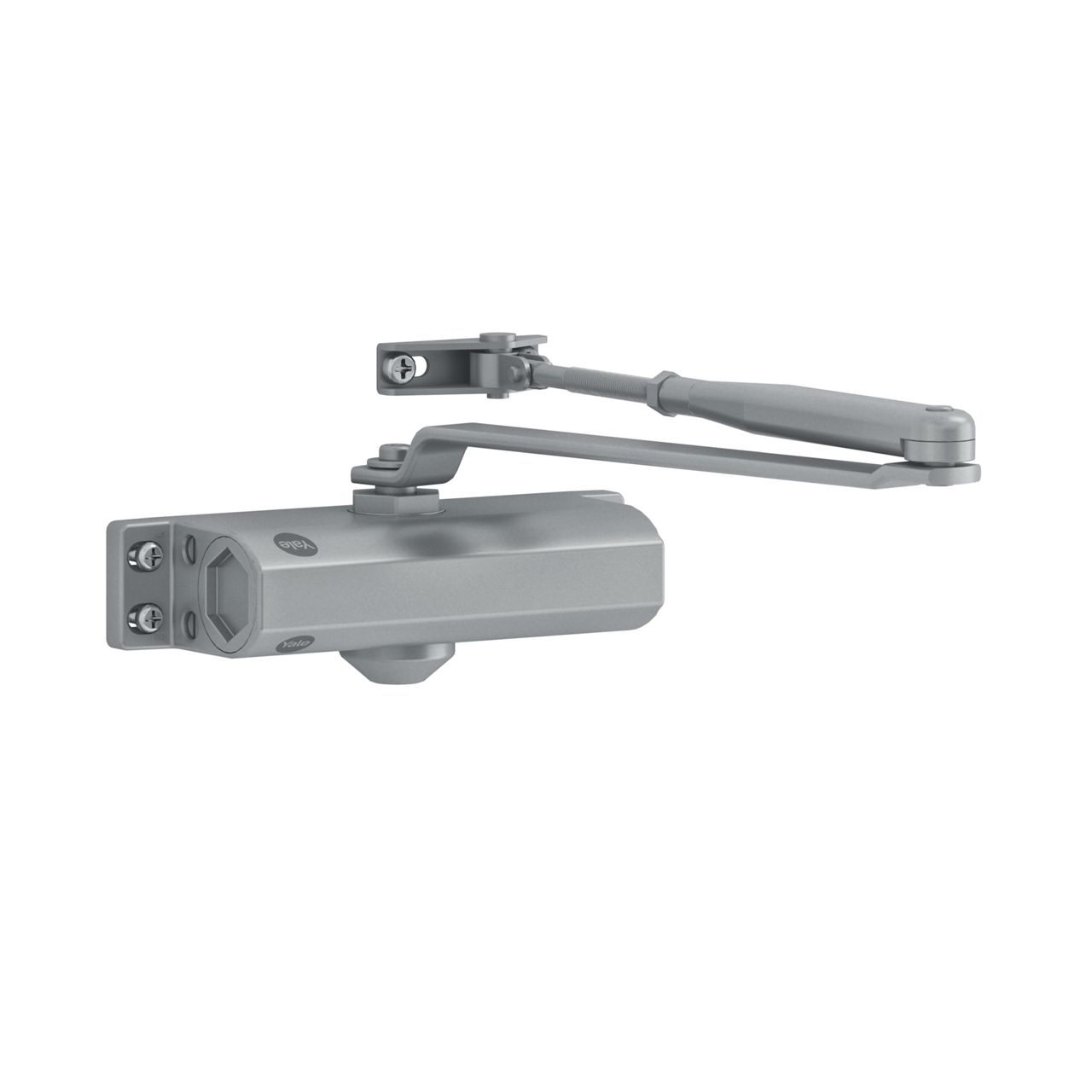

- Silver - Standard Arm Door Closer

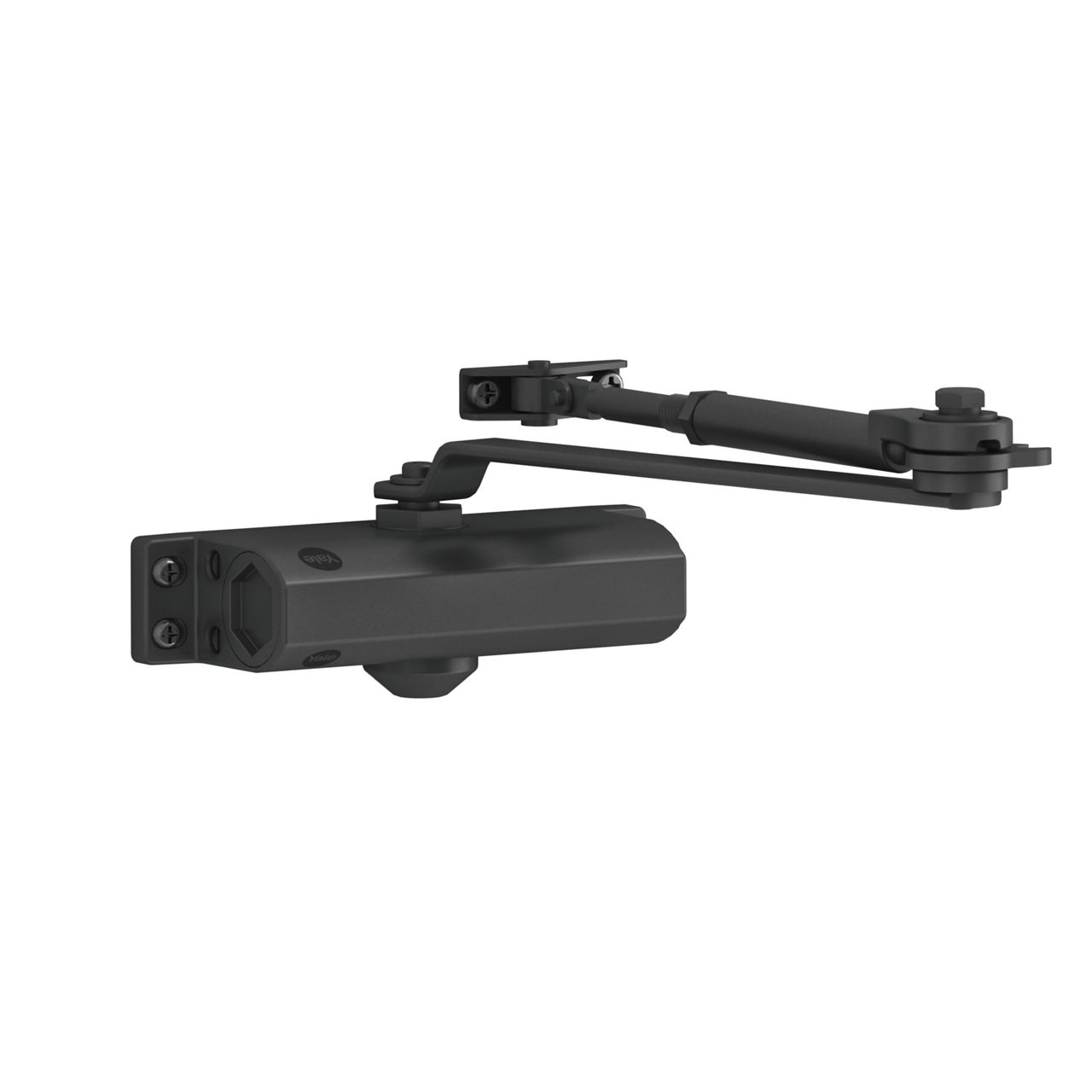

- Black - Hold Open Arm Door Closer

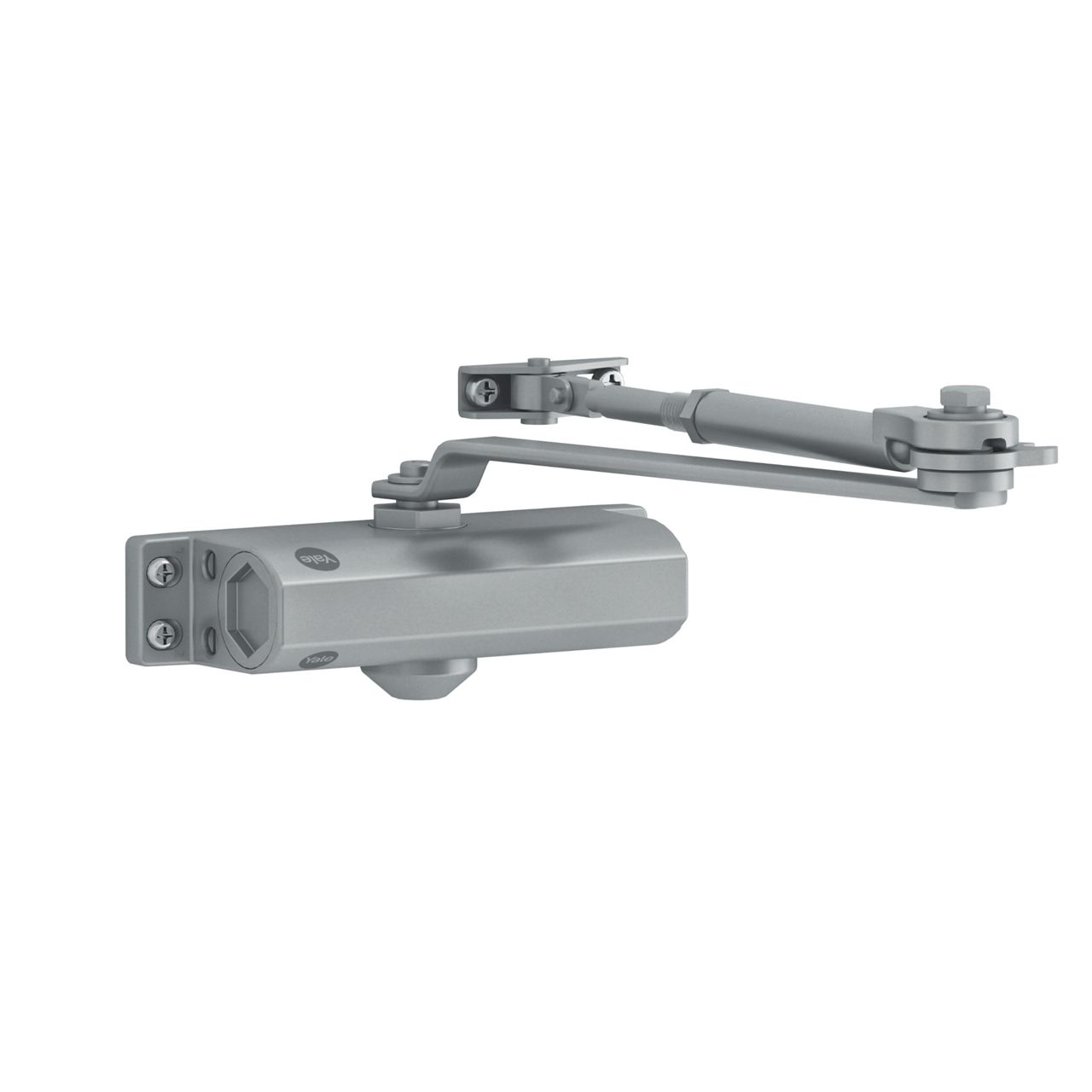

- Silver - Hold Open Arm Door Closer
Technical Details
| Details | Features |
| Type | Rack & Pinion |
| Spring Sizes | EN 2/3/4 by template |
| Arm Assembly Type | Standard / Hold Open Arm |
| Adjustments Facility | ✓ |
| Area of Application | Wooden or Metal Doors |
| Back Check | X |
| Hold Open Arm | Option Available |
| Standards | EN 1154 |
| Suitable for door width | 850 - 1100 mm |
| Suitable for door weights | 25 - 85 kg |
| Cycle Tested | 500000 |
| Finishes | Silver, Black |
- Ul listed
- Casted aluminum body
- Non handed installation
Contacts
Item Code Item Description 30-0300-0001-00-55-11 YALE 300 SERIES R&P CLOSER with Standard ARM, SIZE 2/3/4 BY POSITION, Black 30-0300-0001-00-60-11 YALE 300 SERIES R&P CLOSER With Standard ARM, SIZE 2/3/4 BY POSITION, SIL 30-0300-0004-00-55-11 YALE 300 SERIES R&P CLOSER With Hold Open ARM, SIZE 2/3/4 BY POSITION, Black, 30-0300-0004-00-60-11 YALE 300 SERIES R&P CLOSER With Hold Open ARM, SIZE 2/3/4 BY POSITION, SIL
