YDM3109+YDM3109+
  • Model: YDM3109+
    Color: Silver
    Locking Type: Mortise Lock
    Backset: 60mm
    Door Thickness: 40 - 65mm
    Battery: Alkaline (AA x 4)

    Product Dimension:

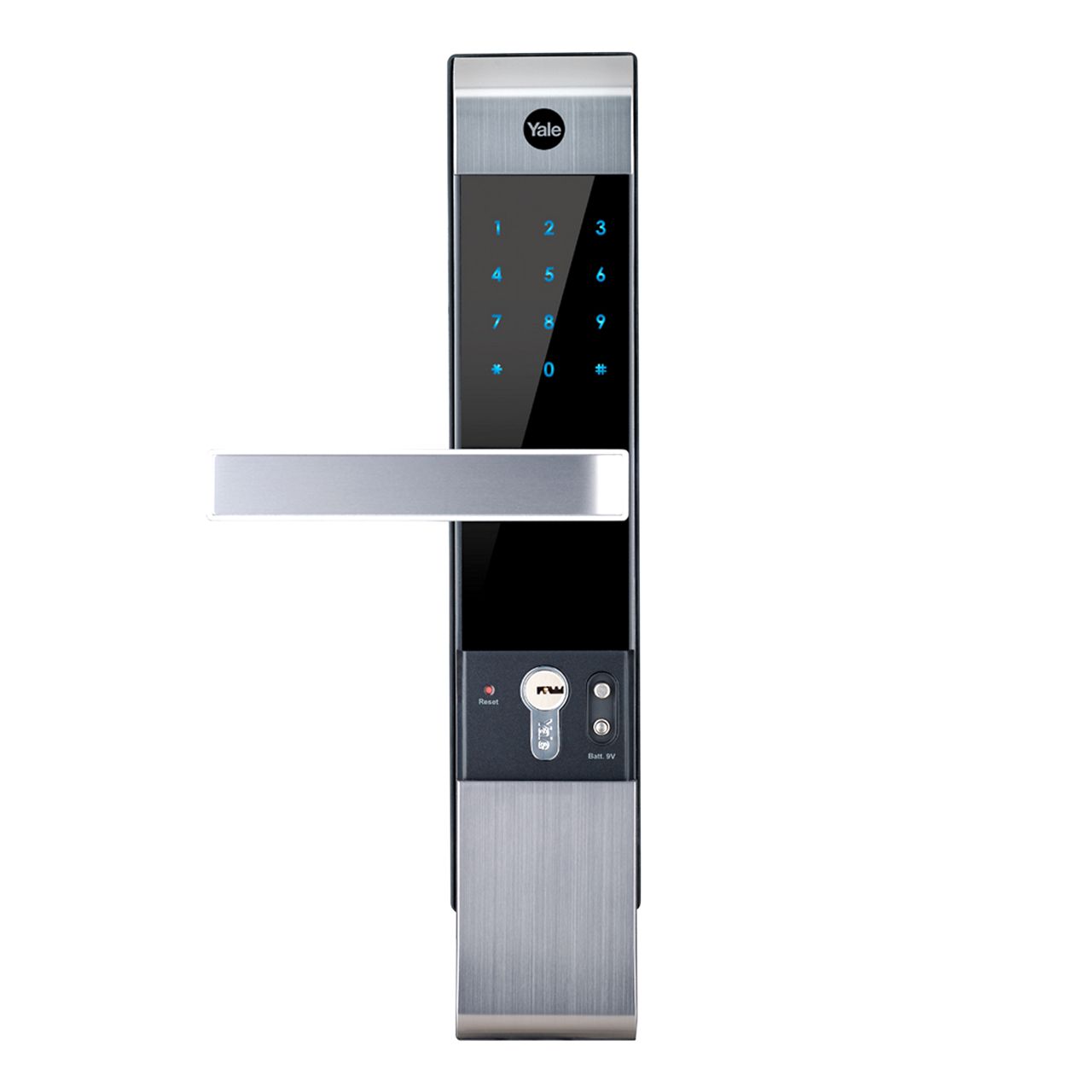

    • Size (Front): 68.6(W) x 306.6(H) x 27(D) mm
    • Size (Back): 72.8(W) x 306.6(H) x 37(D) mm

    Access Credential:

    • Fingerprints: No
    • PIN Code: Available
    • RFID Card: Available
    • Mechanical Key Override: Available
    • Bluetooth: Available
    • WiFi Connection: Available
    • Remote Control: Available (Optional - Sold Separately)

    Maximum No. of Users:

    • Fingerprints: No
    • PIN Code: Up to 30 Users
    • RFID Card: Up to 40 Users
    • Mechanical Key Override: 2 Keys
    • One Time Code: 1 Only

    Additional Features:

    Voice Guidance
    Whenever any opeartion is made, the keypad informs you what is happened though different alignment of the numbers.

    Automatic Locking
    Yale Digital Door Lock series automatically locks a door after checking it is properly closed. (Manual operation is also available)

    Anti-Panic Egress
    For convenience and in case of emergency, the door is automatically unlocked whenever the inner lever handle is used. The safe handle will protect from any break-in attempts.

    Alarm (Break / Damage)
    80dB alarm goes off if anyone attempts to damage the lock or force the door open, or the lock detects over 60°C.

    Fake PIN code
    To prevent the PIN code from being exposed, it allows you to enter FAKE numbers before or after entering your PIN code.

    Low Battery and Emergency Power
    It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.

    Operation Status Notification
    Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.

    Remote Control (Optional)
    Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50m.

    Bluetooth Module (Optional)
    Bluetooth communication module allows lock to communicate and be controlled via a Smart Phone (within Bluetooth range of the lock) using the Yale Link Apps.

    App Link Apps (Optional)
    Works with Yale Link Apps to access your lock remotely (To access Yale Link Apps function, user would need Yale Wifi Bridge and Yale Bluetooth Module available under Accessory Section)
