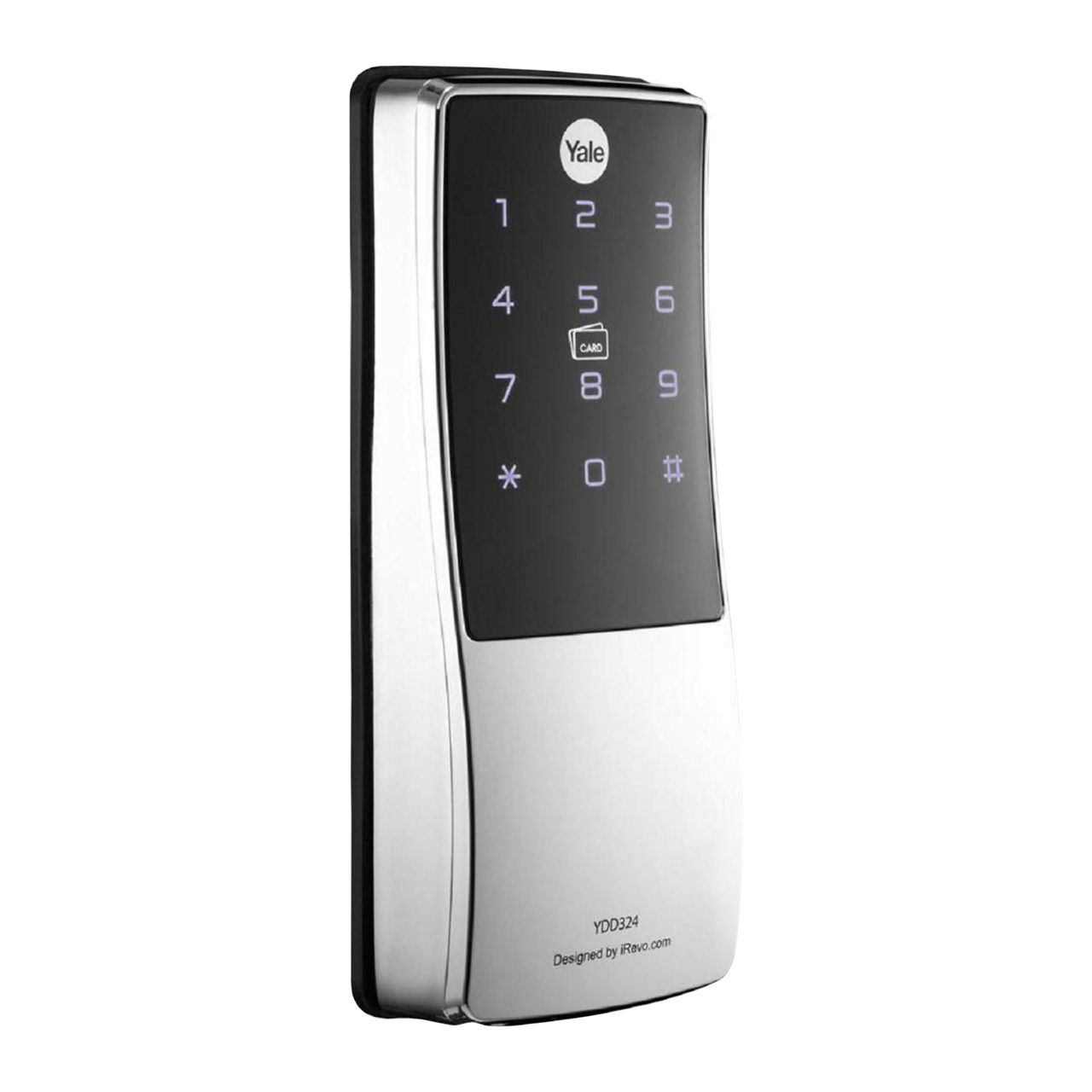

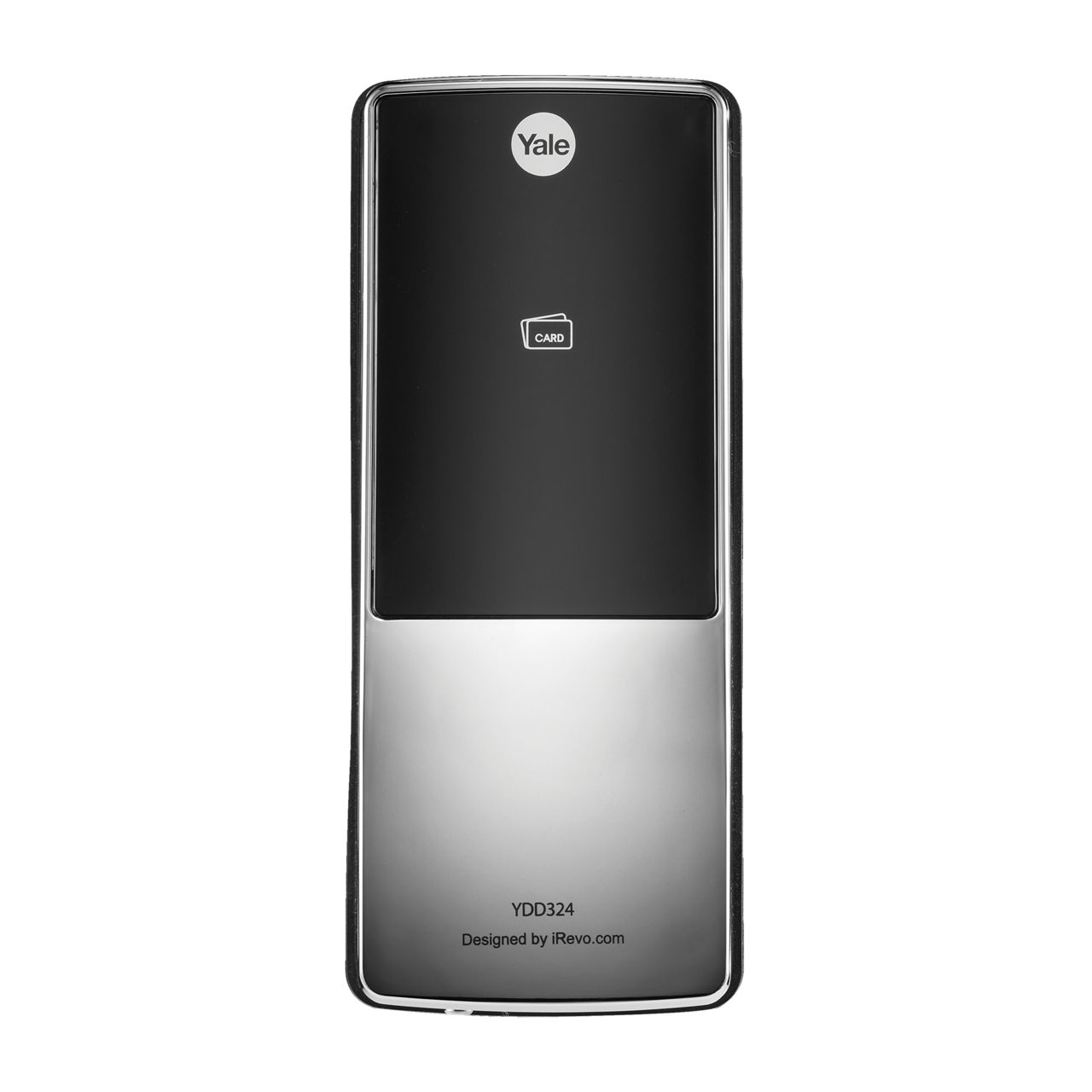

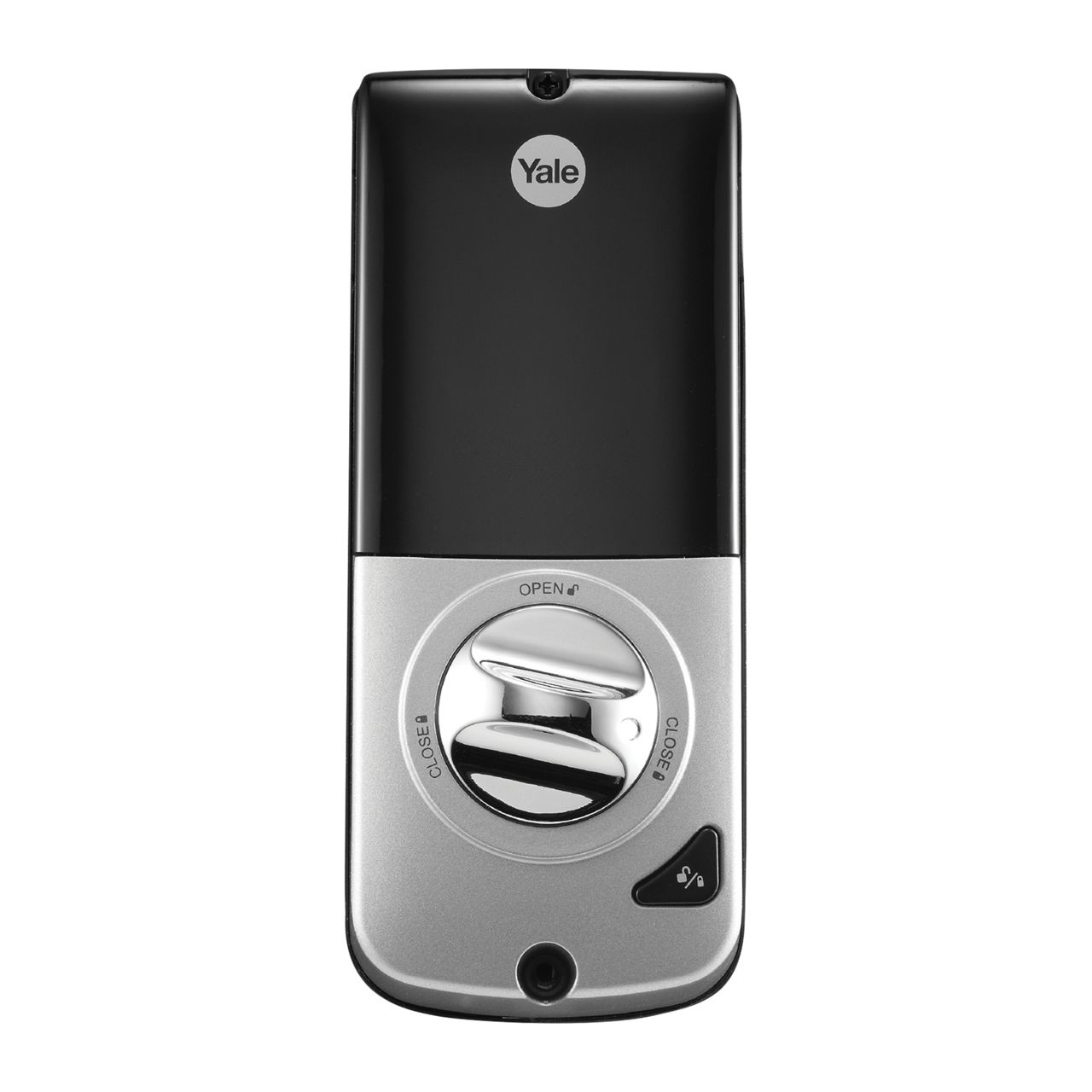

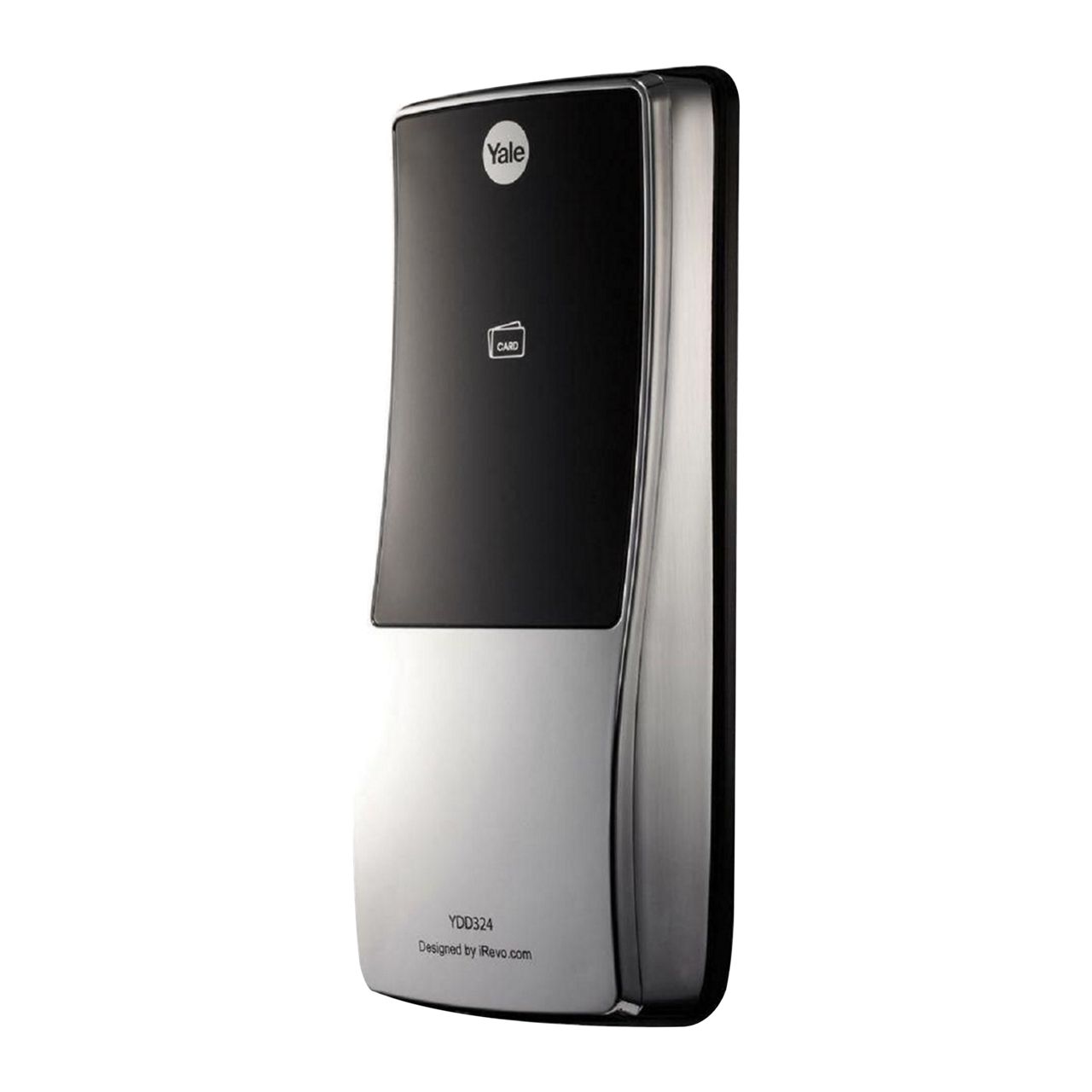

YDD324
Deadbolt Smart Lock
YDD324
Deadbolt Smart Lock
Main Feature:
- RFID Card
- PIN Code
- Mechanical Key Override
Model: YDD324
Color: Silver
Locking Type: Deadbolt
Backset: 60 / 70mm
Door Thickness: 45 - 57mm
Battery: Alkaline (AA x 4)Product Dimension:
- Size (Front): 66(W) x 162(H) x 27(D) mm
- Size (Back): 70(W) x 170(H) x 35(D) mm
Access Credential:
- Fingerprints: No
- PIN Code: Available
- RFID Card: Available
- Mechanical Key Override: Available
- Bluetooth: No
- WiFi Connection: Available
- Remote Control: Available (Optional - Sold Separately)
Maximum No. of Users:
- Fingerprints: No
- PIN Code: Up to 100 Users
- RFID Card: Up to 40 Users
- Mechanical Key Override: 3 Keys
- One Time Code: 1 Only
Additional Features:
Automatic Locking
The Yale series automatically locks the door after checkinng it is properly closed. (Manual operation is also available.
Alarm (Break / Damage)
80dB alarm goes off if anyone attempts to damage teh lock or force the door open, or if the lock detects over 60˚
Fake PIN Code
To prevent the PIN code from being exposed, it allows you to enter Fake numbers before or after entering your PIN Code.
Low Battery and Emergency Power
It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with the standard 9v battery.
Remove Control (Optional)
Remove control type is also available. Wireless floating ID technology is adopted and works up 50 m.
