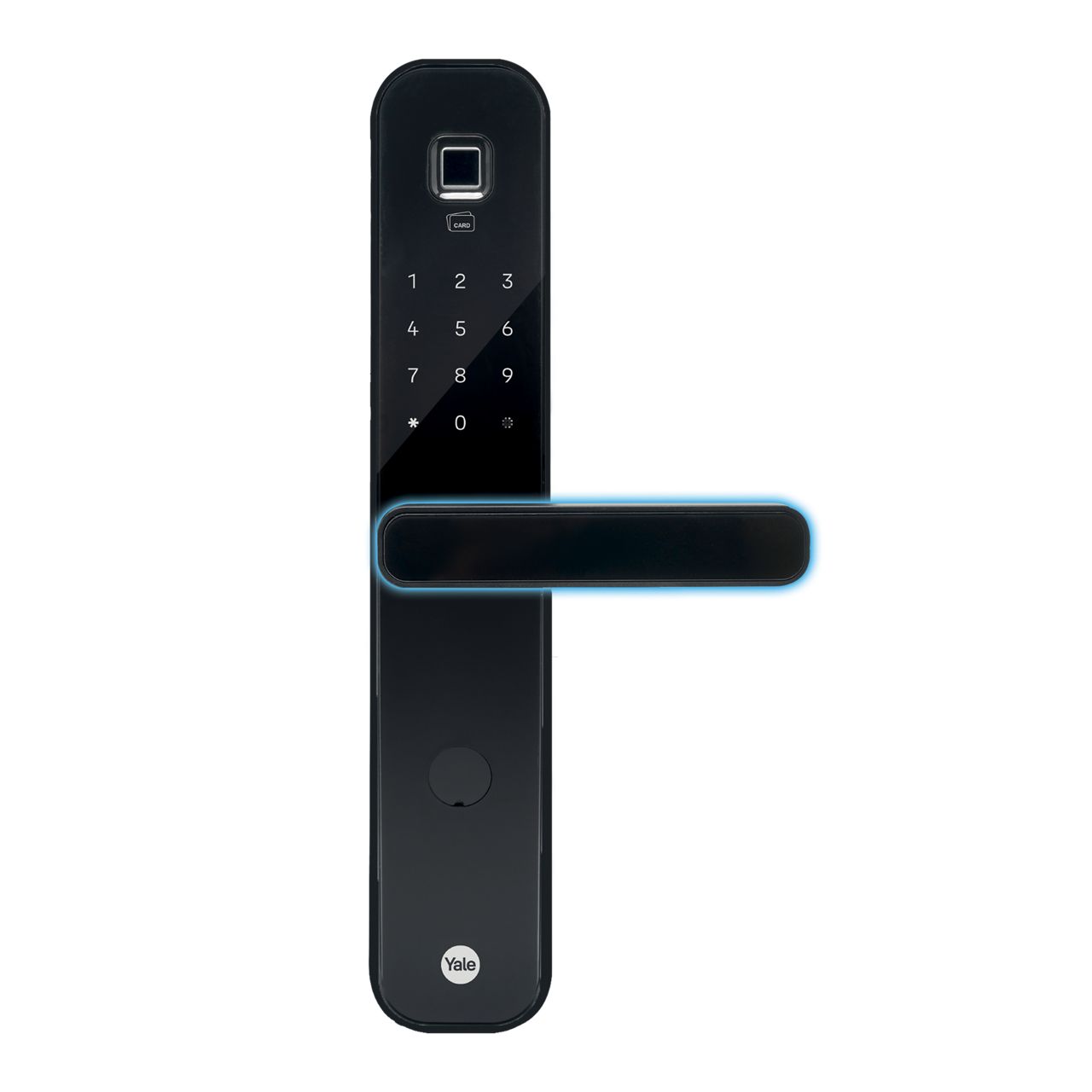

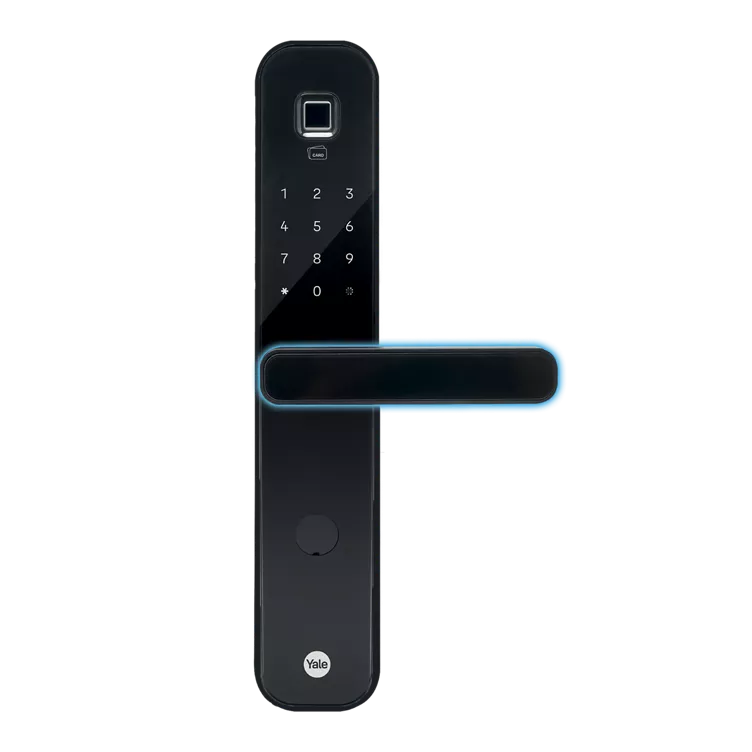

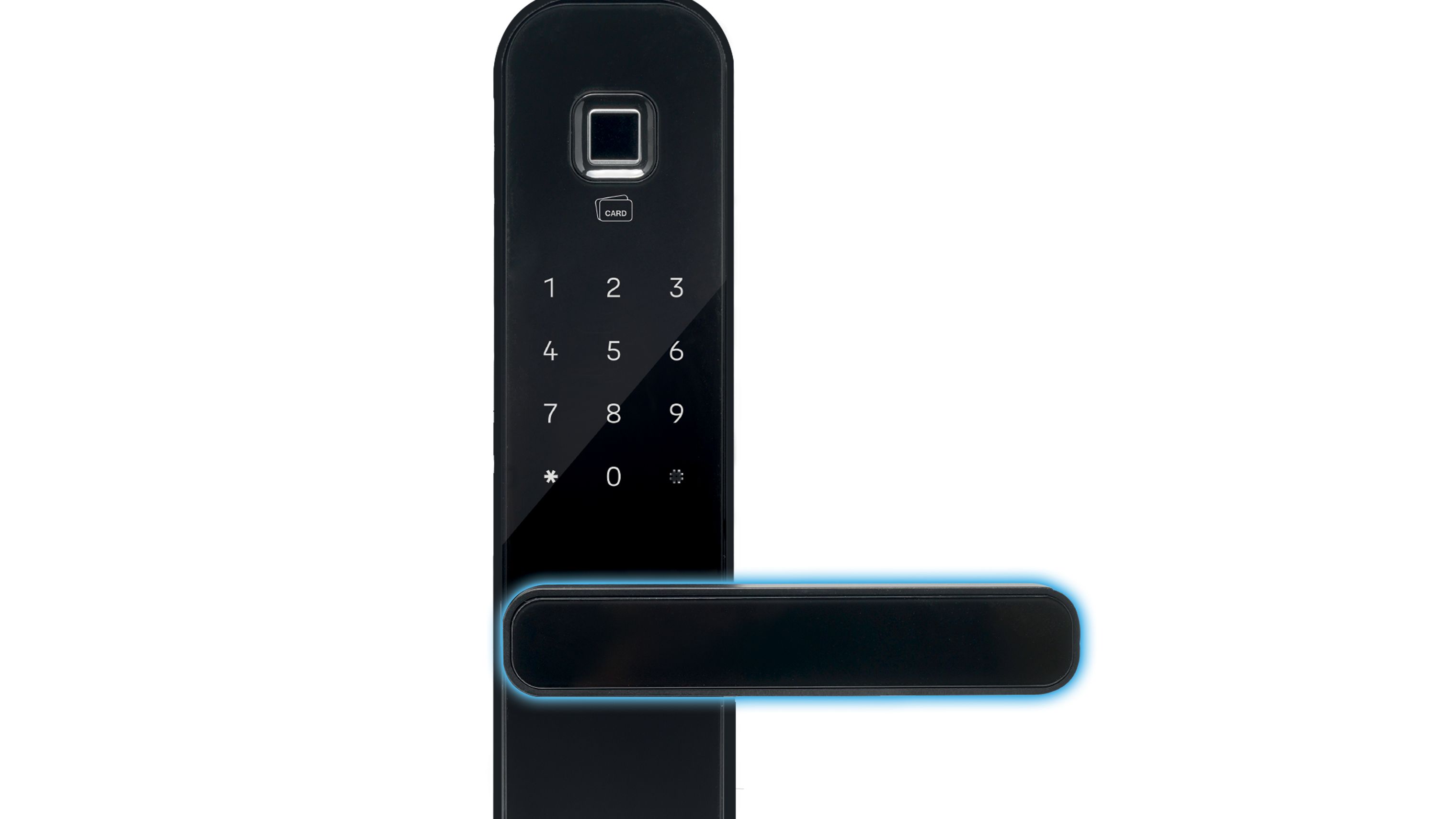

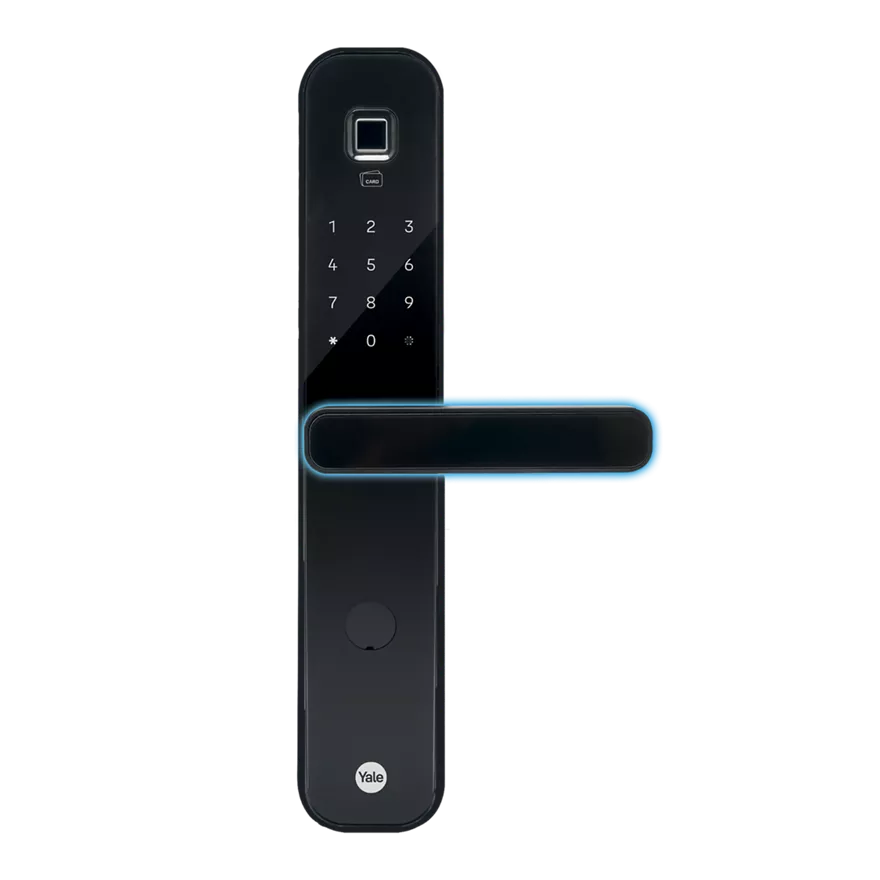

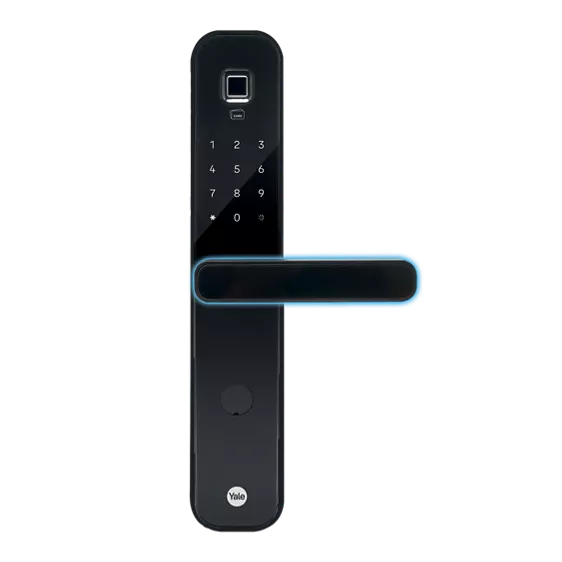

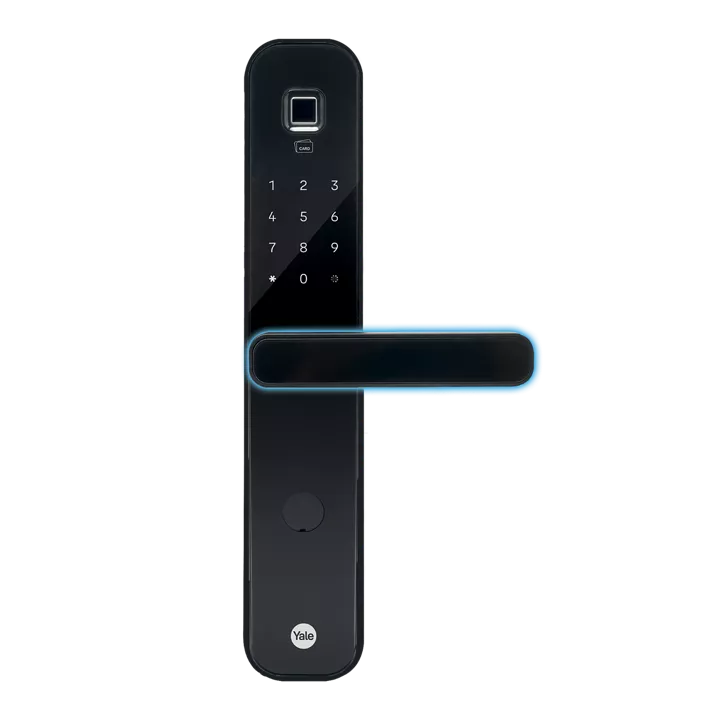

YDM7220 BioSecure™
BioSecure™ Mortise Smart Lock
Main Feature:
- Fingerprint
- Pin Code
- RFID Key Tag
- Bluetooth
- Yale Home App
Model: YDM7220 BioSecure™
Color: Black
Locking Type: Mortise
Backset: 60 / 70mm
Door Thickness: 45 - 57mm
Battery: Alkaline (AA x 4)Product Dimension:
- Size (Front): 68(W) x 335(H) x 64.5(D) mm
- Size (Back): 72(W) x 344(H) x 36(D) mm
Access Credential:
- Fingerprints: Available
- PIN Code: Available
- RFID Key Tag: Available
- Mechanical Key Override: Available
- Bluetooth: Available
- WiFi Connection: Available
- Remote Control: Available (Optional - Sold Separately)
Maximum No. of Users:
- Fingerprints: Up to 100 Users
- PIN Code: Up to 100 Users
- RFID Key Tag: Up to 100 Users
- Mechanical Key Override: 2 Keys
- One Time Code: 1 Only
Additional Features:
Always in the know
The activity feed in Yale Home App tracks how and when your door is locked and unlocked.
Control who has access
Let visitors in and out when you are not at home.
Keep your home secure
Check if your door is locked from anywhere.
Monitor access from anywhere
Always know who is coming and when.- Voice Guide
- Automatic Locking
- Alarm (break-in / damage)
- Anti-panic Egress
- Fake PIN Code
- Low Battery and Emergency Power
- Remote Control (Optional)
Product Leaflet
Product Brochure
User Manual
Yale Access App User Guide
Similar products
Yale Access Bluetooth Module
Yale Access Module turn your lock into a smart lock.Yale Connect Wi-Fi Bridge
Yale Connect Wi-Fi Bridge For voice assistant functionality and remote access and control of your lock.YMI70A

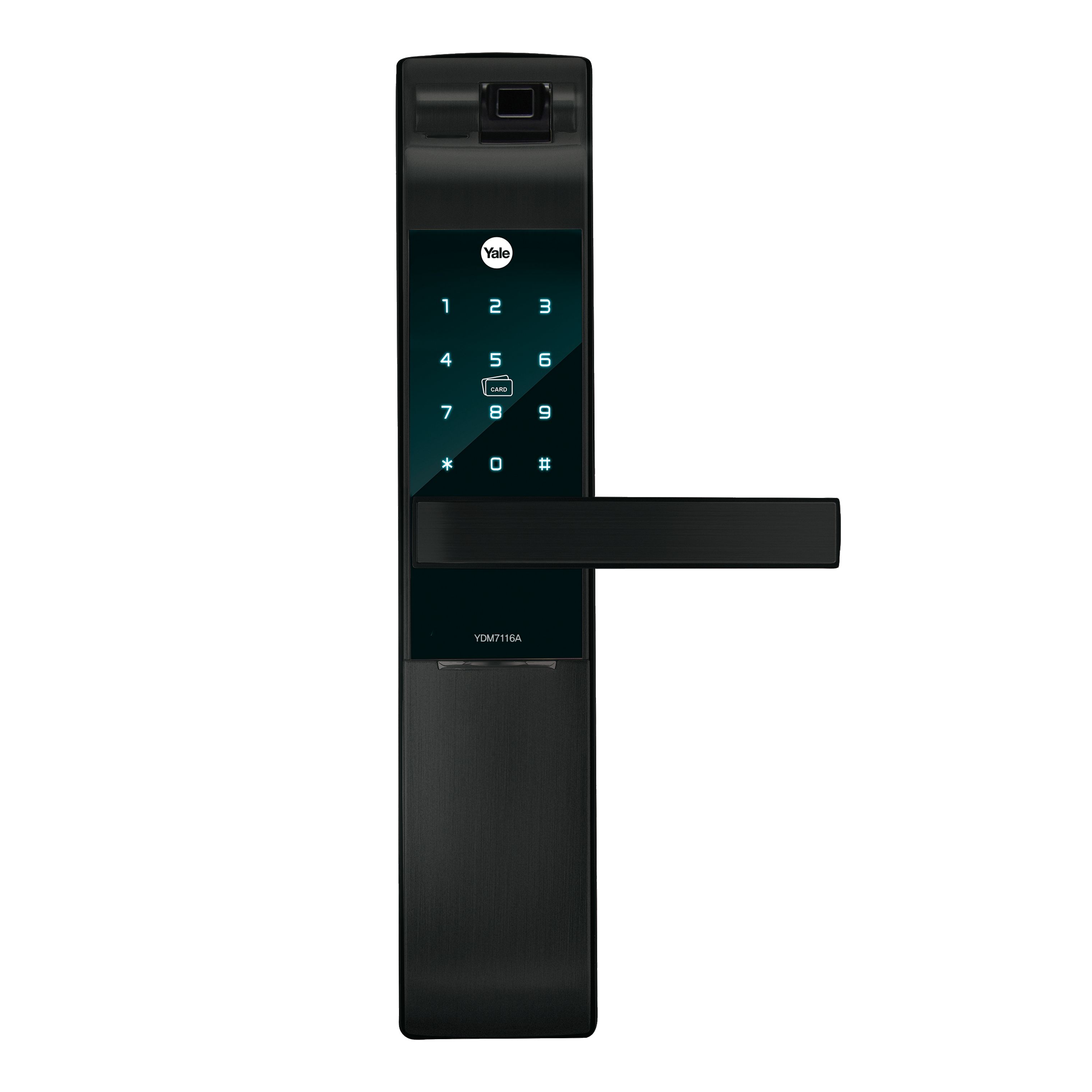

Mortise Smart LockYDM7116A

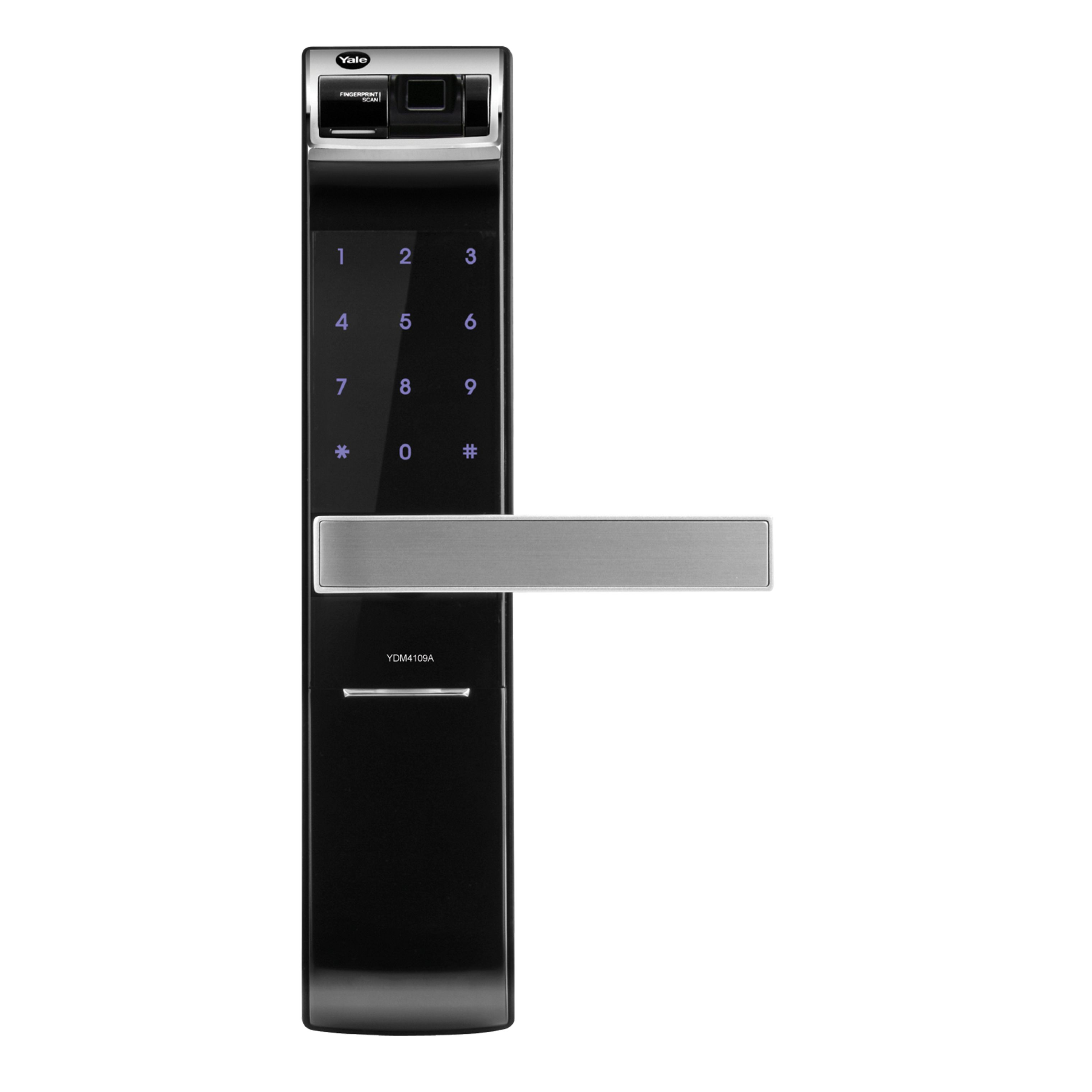

Mortise Smart LockYDM4109A
