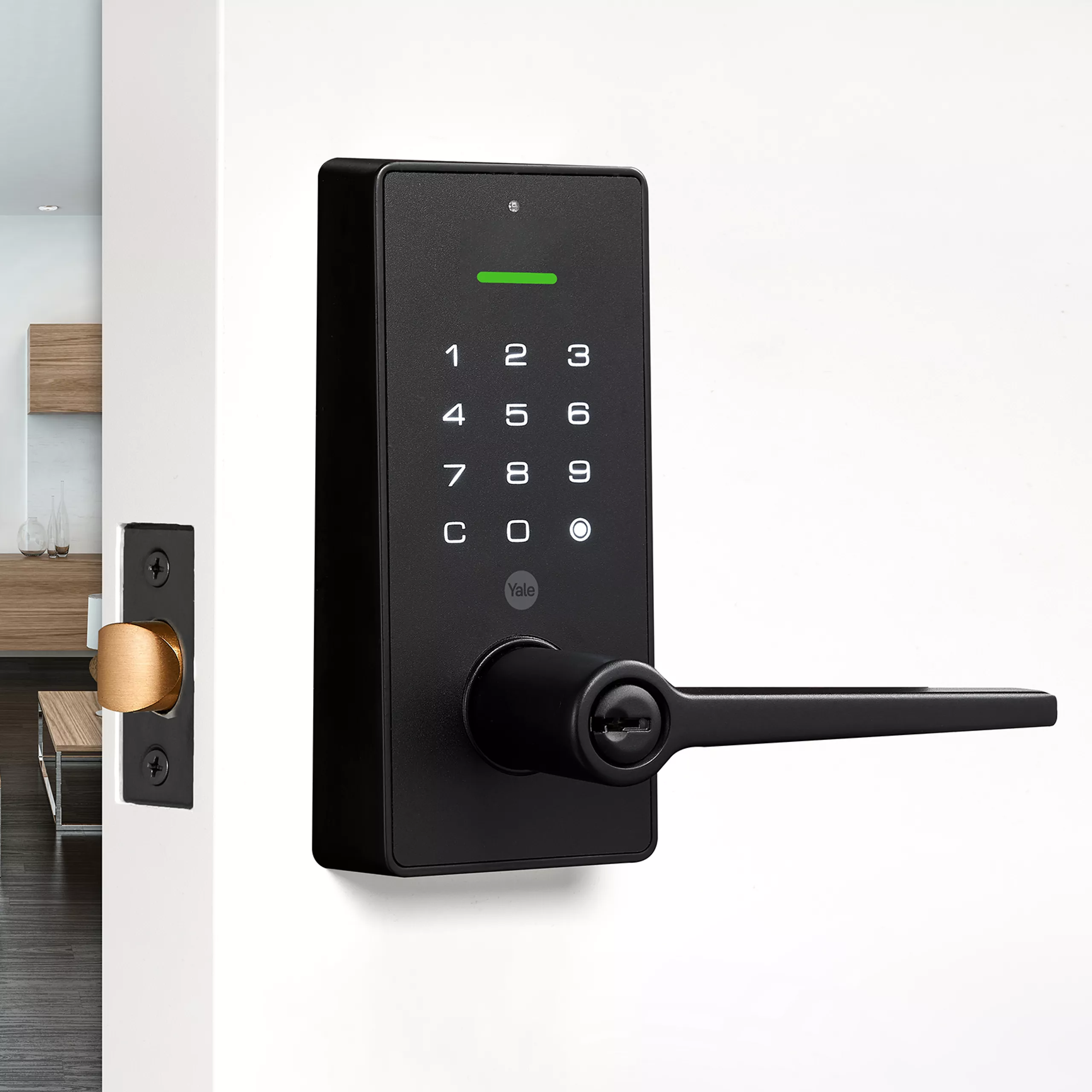

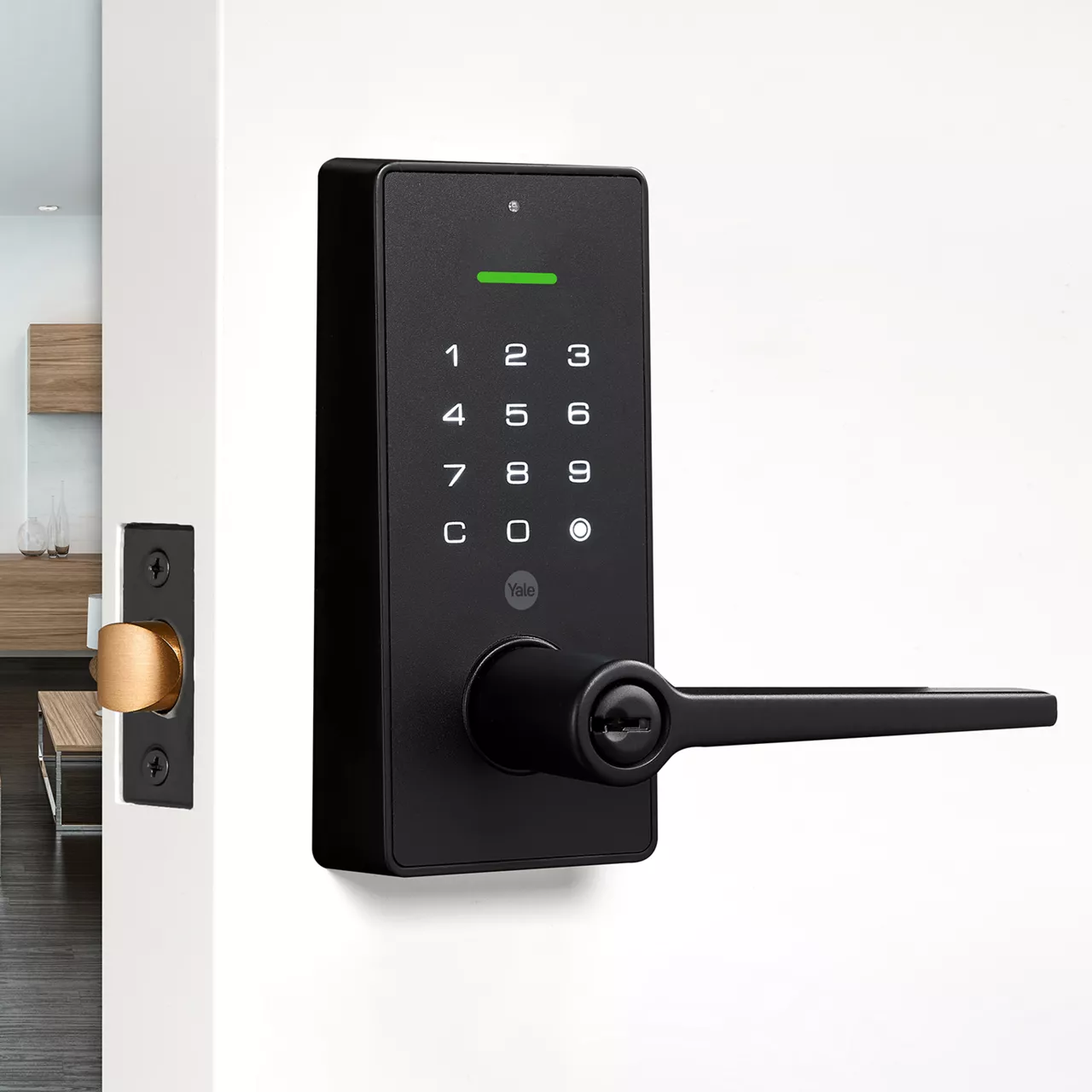

Yale Libi™ Digital Lever Keyed Support
Get quick answers about door compatibility, installation, features, and troubleshooting.
FAQ
The Yale Libi Digital Lever Keyed fits on most single bore hole standard preparation doors in Australia. The door must have a:
- A door thickness between 35mm to 45mm
- A backset of 60mm or 70mm
- A borehole of 54mm
The Yale Libi Digital Lever Keyed is designed to fit both right and left-handed doors. To change the handing of your lock, please use the provided allen key and refer to the Installation Video or Installation Instructions for a detailed step-by-step guide.The Yale Libi Digital Lever Keyed is designed to fit both right and left-handed doors. To change the handing of your lock, please use the provided allen key and refer to the Installation Video or Installation Instructions for a detailed step-by-step guide.
The programming menu allows you to set and delete user codes or one-time user codes, set programming codes, adjust auto-lock, sound settings and vacation mode.
To access the programming menu:
- If you don’t have a programming code set, press the programming button underneath the battery cover. You can use a small pin or the provided allen key to reach the reset button.
- If you’ve enabled a programming code, enter the programming code then press the confirm button.
There are two modes, the Auto-lock mode or Passage mode.
Auto-Lock mode:
Passage mode:
Switching the slider to the right will enable Auto-lock mode (disables Passage mode) and will immediately lock your outside handle and trigger your lock to auto-lock after a certain time. The default auto-lock time is 5 seconds. Switching the slider to the left will enable Passage mode (disable Auto-lock) and immediately unlock the outside handle.
There are 2 access types, PIN code (4-10 digits only) and a mechanical key.
Auto-lock mode automatically locks your door after a certain time. Switching the slider to the right will enable Auto-lock mode (disabling Passage mode) and will immediately lock your outside handle and trigger your lock to auto-lock after a certain time. The default auto-lock time is 5 seconds. Switching the slider to the left will enable Passage mode (disabling Auto-lock mode) and immediately unlock the outside handle.
To adjust the time delay:
- Press the programming button, then 8, then confirm button. If you’ve setup a programming code, instead of pressing the programming button, you’ll need to enter the programming code and then press the confirm button
- Press 6, then the confirm button
- Enter the keypad number that corresponds to your time delay preference (in seconds). The time delay can be between 1-99 seconds.
When Vacation Mode is enabled, all user codes are disabled. You can enable or disable this mode by pressing the programming button, then 8, then confirm button. If you’ve setup a programming code, instead of pressing the programming button, you’ll need to enter the programming code and then press the confirm button.
Note: If you have a programming code set up, you can use the programming code to access the programming menu to disable vacation mode from the outside.
The Yale Libi Digital Lever Keyed is simple to install. In most cases it can be installed with just a screwdriver and the provided allen key. Click here to view our installation video.
The lock is designed for residential entry doors and is not designed for gates or applications where the interior of the lock is exposed to outdoor elements.
For homes located near the coast, we recommend installing your lock in areas less exposed to direct wind and salt spray. Positioning it under a sheltered porch or using a weather guard can help minimize direct exposure to the elements. To keep your lock in optimal condition, we advise occasionally wiping it with a damp cloth to remove any salt build-up. This will help maintain its appearance and long-term performance.
Due to your surroundings, the proximity sensor may be activating through-out the day (e.g. tree branches swaying in the breeze).
You may enable/disable the proximity sensor using one of the methods below:
Proximity sensor on
Method 1：Programming button ➔ 951 ➔ Unlock/Lock button
Method 2：Master code ➔ Unlock/Lock button ➔ 951 ➔ Unlock/Lock buttonProximity sensor off
Method 1：Programming button ➔ 952 ➔ Unlock/Lock button
Method 2：Master code ➔ Unlock/Lock button ➔ 952 ➔ Unlock/Lock button
Troubleshooting
The Yale Libi Digital Lever Keyed is powered with one 9V battery. If your battery runs flat, you’ll still be able to use your mechanical key to open the door. When the battery is low, the lock will sound 10 times and flash red 10 times on the keypad.
If you have lost your programming code it’s best to reset your lock back to factory settings by holding down the programming button for 5 seconds. You can use a small pin or the provided allen key to reach the reset button.
There may be a few reasons why your batteries are draining faster than expected.
First, check to make sure the cable on the inside of the lock is securely fastened. To do this, you will need to remove the battery cover from your lock, remove the battery and then unscrew the two mounting screws and dismantle the interior side of the lock. Check that the cable is snugly fit into the socket on the interior side of the lock.
Entry Codes must consist of 4 to 10 digits in length to register and up to 70 user codes can be saved. User codes must also be entered within 5 seconds (while touchscreen is active) or the process will have to be restarted.
When mounting the exterior lever on the shaft, insert the key and ensure you turn the key 90 degrees clockwise only. Then, push the lever and cylinder in so it sits flush, tighten the set screw to fix the lever in place.
Refer to the table below for a guide on what each of these flashing lights (and beeps) correspond to.
How-to Guide
Click here to view our installation video or refer to the installation instructions.
Click here to refer our user guide.
To perform a factory reset on your unit, remove the battery cover and hold down the reset button for 5 seconds once you hear 3 long beeps. You can use a small pin or the provided allen key to reach the reset button.
