Aeron® Window Control System
Designed to operate your windows at the touch of a button, whether using a wall switch or the Aeron® Wireless Remote, or even from anywhere around the world using your smart device with the Yale Home App.
Aeron® Wireless ZigBee Module
The Aeron® Wireless Zigbee Module allows the Aeron® Window Actuator wireless connectivity and smart functions. It relays commands from the Yale Connect Plus Hub 2 to the Actuator, as well as transmitting out to the Hub and other Actuators within the Zigbee mesh network.
The Aeron® Module is the special component that makes the Aeron® Window Actuator wireless, allowing users to upgrade from hard-wired wall switches to the world of possibilities opened up by wireless setup. All it takes is to connect through Yale Connect Plus Hub 2.
Each Aeron® Actuator comes wireless-ready with Aeron® Module pre-installed, which can be replaced or removed if not required. I.e, in Synchronisation connection Slave actuator must NOT have a Module installed in it.

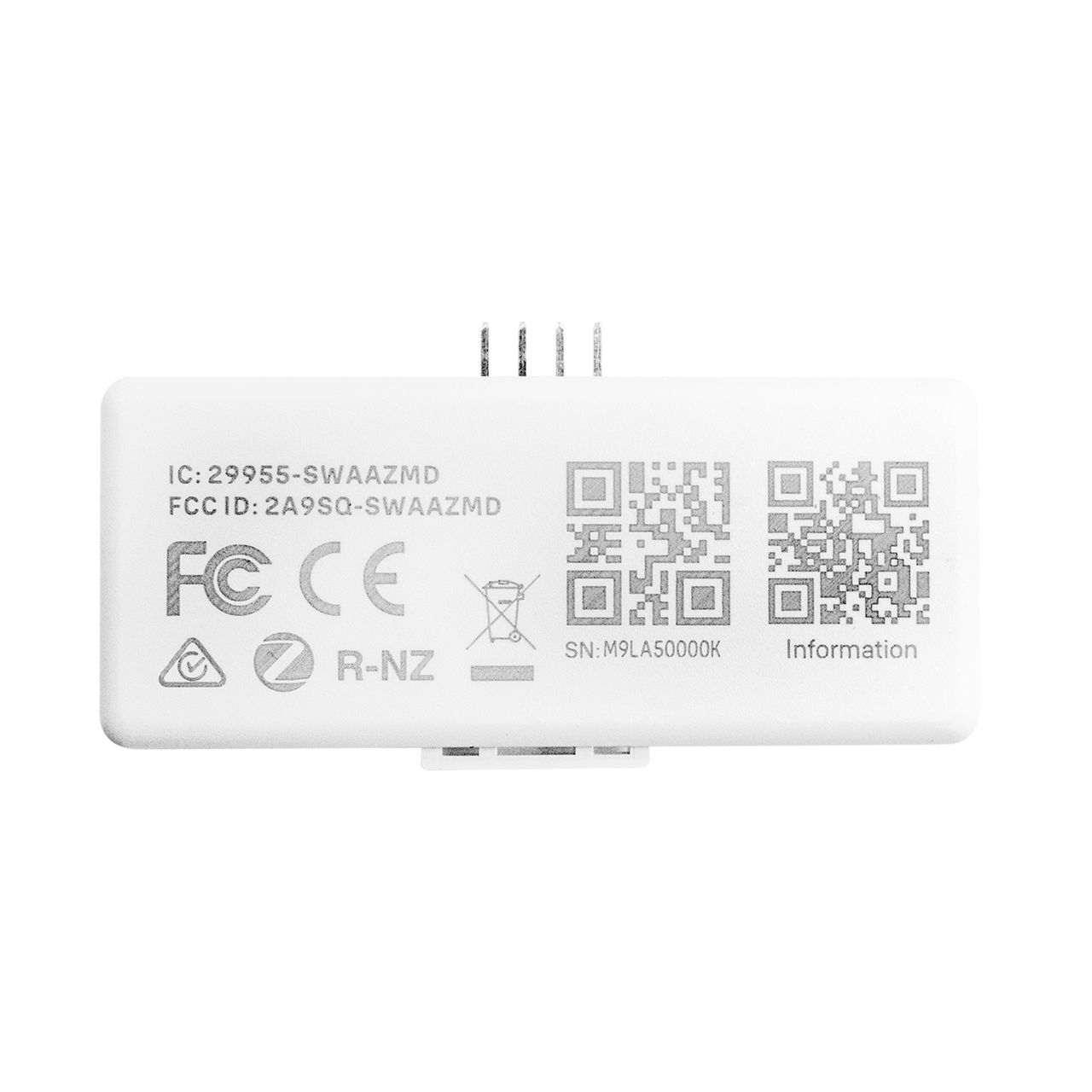

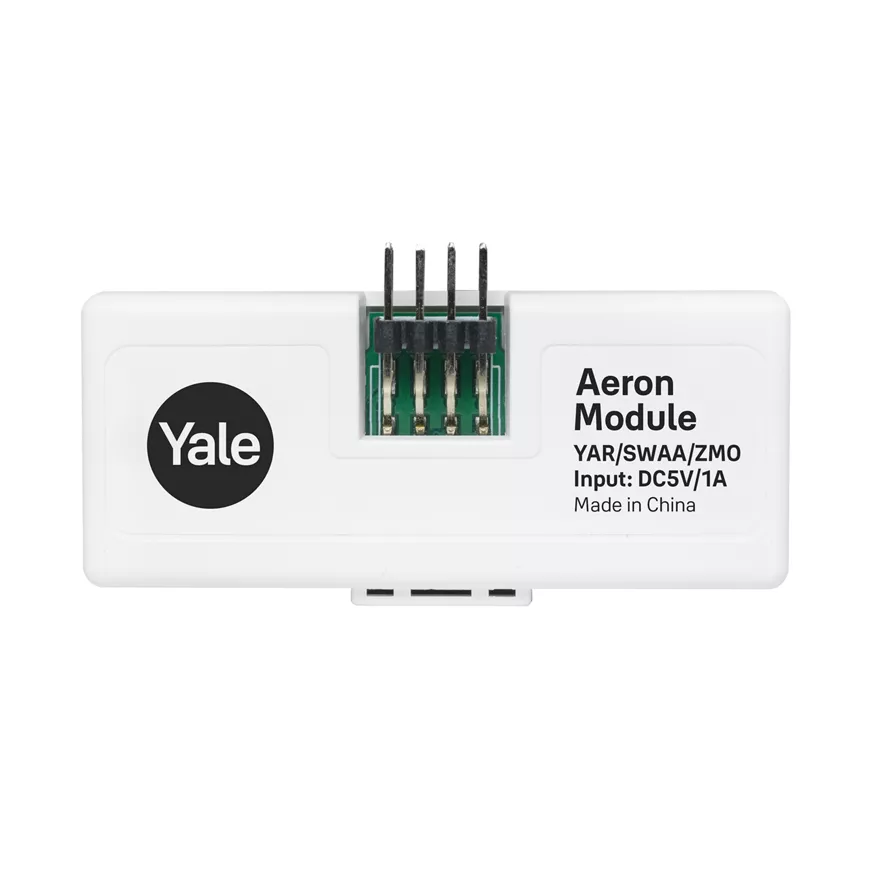

Yale Aeron Actuator Zigbee Module (YAR/SWAA/ZMD)
Yale Aeron Actuator Zigbee Module (YAR/SWAA/ZMD)
Yale Aeron Actuator Zigbee Module (YAR/SWAA/ZMD)
Benefits
- Operate window actuators wirelessly with Remote or the Yale Home App
- Zigbee mesh certified
- Easy to install/remove from the actuator
- Wireless Aeron® Module allows Aeron® actuator to register on the App hassle-free
- QR code scannable
Communication
ZigBeeDimensions
58W x 25H x 7.3D (dimensions are in mm)Power
5 VDC/1.0A (Powered by Aeron Host Actuator)Operating Temperature
0-40°COperating Humidity
10-90% Non-condensingFinish
Matt WhiteCompliance
- Regulatory Compliance Mark (RCM) for AU & NZ
- FCC Part 15b Compliance (Actuator with Zigbee module)
- FCC Part 15C Compliance (Zigbee module FCC ID: 2A9SQ-SWAAZMD)
- ICES-003:2020 ISSUE 7 (Actuator with Zigbee module)
- Industry Canada (Zigbee module IC ID: 29955-SWAAZMD)
Description Part number Yale Aeron Actuator Zigbee Module YAR/SWAA/ZMD
