Aeron® Actuator Features

  • Intuitive app controls: The app allows you to control all your windows actuators and offers preset options such as ‘closed,’ ‘vent,’ ‘half,’ and ‘full’ for easy window management
  • Quieter operation: Whisper quiet, only 55dB even at full load
  • Simultaneous operation: The actuators, equipped with 24V DC motors, can operate in unison, and be grouped together for synchronised control
  • Wide window coverage: Synchronise two actuators to cater to wider windows, ensuring efficient operation
  • Secure window seal: Each actuator provides a robust closing force of 9kg, ensuring a tight window seal when closed
  • Durable construction: The Aeron® system features a strong and corrosion resistant stainless-steel chain (grade 304) for long-lasting performance
  • Adjustable chain length: The chain length extension can be easily adjusted in predefined lengths using a slide switch, allowing you to limit the window opening as desired
  • Easy installation: The removable sash bracket simplifies the installation process by disconnecting the chain, and the chain release key also enables the chain to move freely during installation meaning that installation can be completed without power connection
  • Wireless setup: Once powered, no more wiring is required (unless hard-wired wall switch is desired), and all remaining setups can be done through wireless devices
  • Zigbee Mesh network: Each actuator adds to the mesh network around the home, meaning that actuators don’t need to connect back to a base Yale Hub device, but can connect to each other. This reduces the need for multiple Yale Hub units around the home.
  • Multiple control options: Operate the system conveniently through the Yale Home App, a handheld remote control, or a wall switch, offering versatility to suit your preferences

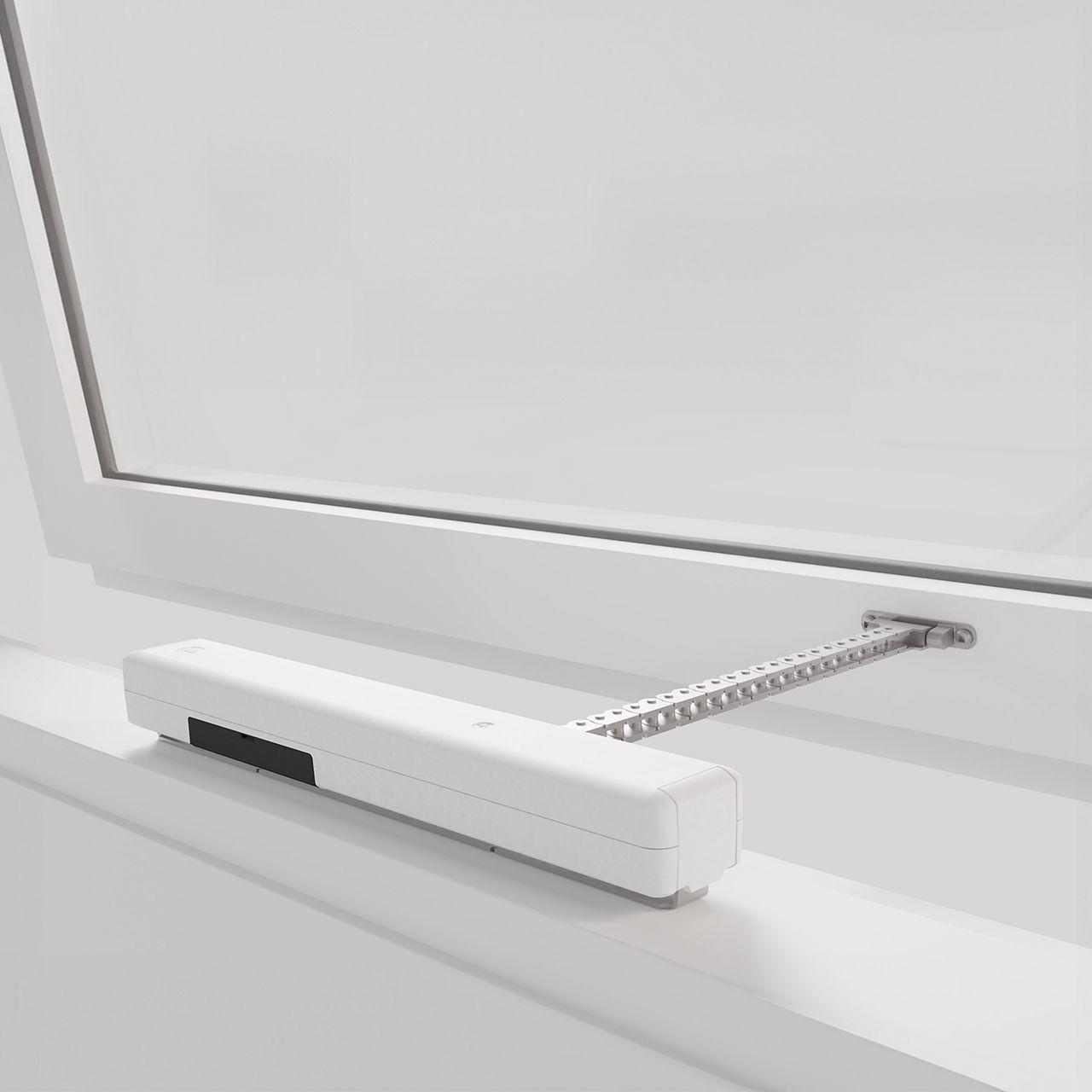

  • Comprehensive compatibility: Suitable for awning or casement windows, the Aeron® system can be fixed to both timber and aluminium window frames
  •

  • Chain Limiting
    Limit chain between 100-250mm at 50mm increments

    Maximum Peak Load
    600mA

    Maximum Chain Opening
    275mm

    Dimensions
    310L x 45W x 36H (dimensions are in mm)

    Endurance
    12,000 Cycles

    Operating Temperature
    0° to 50°C

    Opening/Closing Time (full stroke)
    Approx 30 sec

    Finishes
    Black (BLK), White (WH), Special Powdercoat (SPEC)

    Humidity
    0 to 95%

    Materials
    Actuator body: Cast zinc
    Sash bracket: Cast 304SS
    Chain: Stainless steel 304
    Pivot bracket: Pressed Stainless steel 304

    Operating Force Open/Close
    90N

    Negative Holding Force
    3000N

    NSS Testing on chain

    1000 Hours

    Noise Level
    55dB @ Maximum window Load

    Compliance

    • Regulatory Compliance Mark (RCM) for AU & NZ
    • IP30 Rated (if installed according to installation instructions)
    • FCC Part 15b Compliance (Actuator with Zigbee module)
    • FCC Part 15C Compliance (Zigbee module FCC ID: 2A9SQ-SWAAZMD)
    • ICES-003:2020 ISSUE 7 (Actuator with Zigbee module)
    •  Industry Canada (Zigbee module IC ID: 29955-SWAAZMD)

    Australian Standard

    • Australian Window Standard for negative force strength pressure (AS4145.3-2001)
    • DW2 Australian Window Standard (AS4145.3-2001)

    Window Sizes

    • Maximum Window width Single Actuator - 900mm
    • Maximum Window width Double Actuators* - 2400mm
    • Minimum Window height - 300mm

    Note: Actuator chain may need to be restricted, based on the sash size, as per the Aeron® window matrix.

    * Must be in Sync connection.

    Dimensions





  • DescriptionPart number

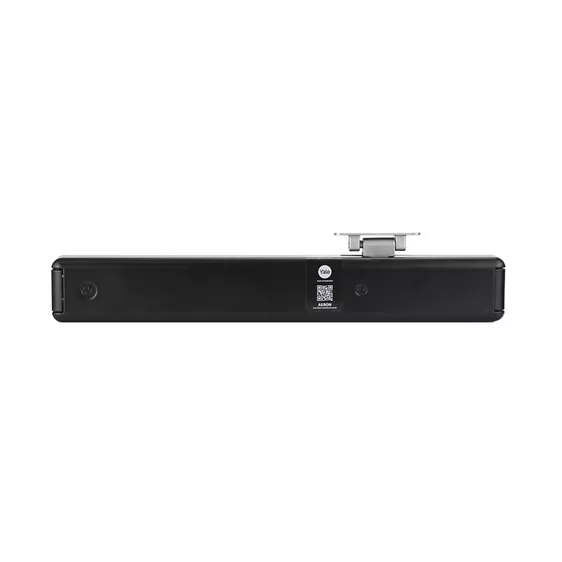

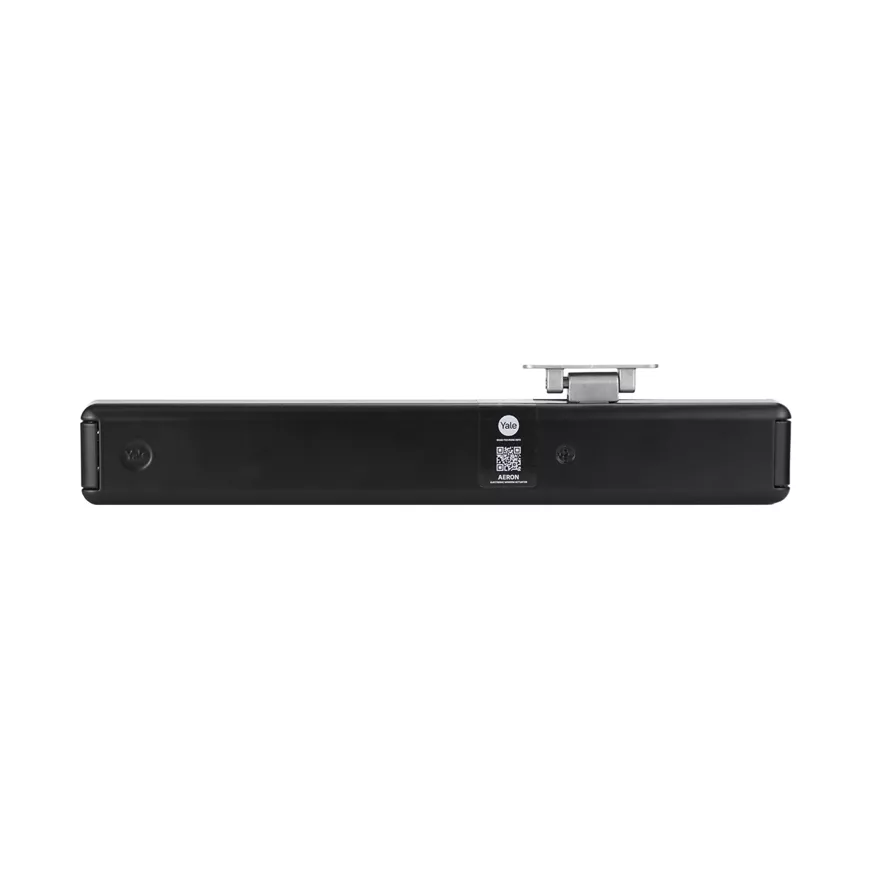

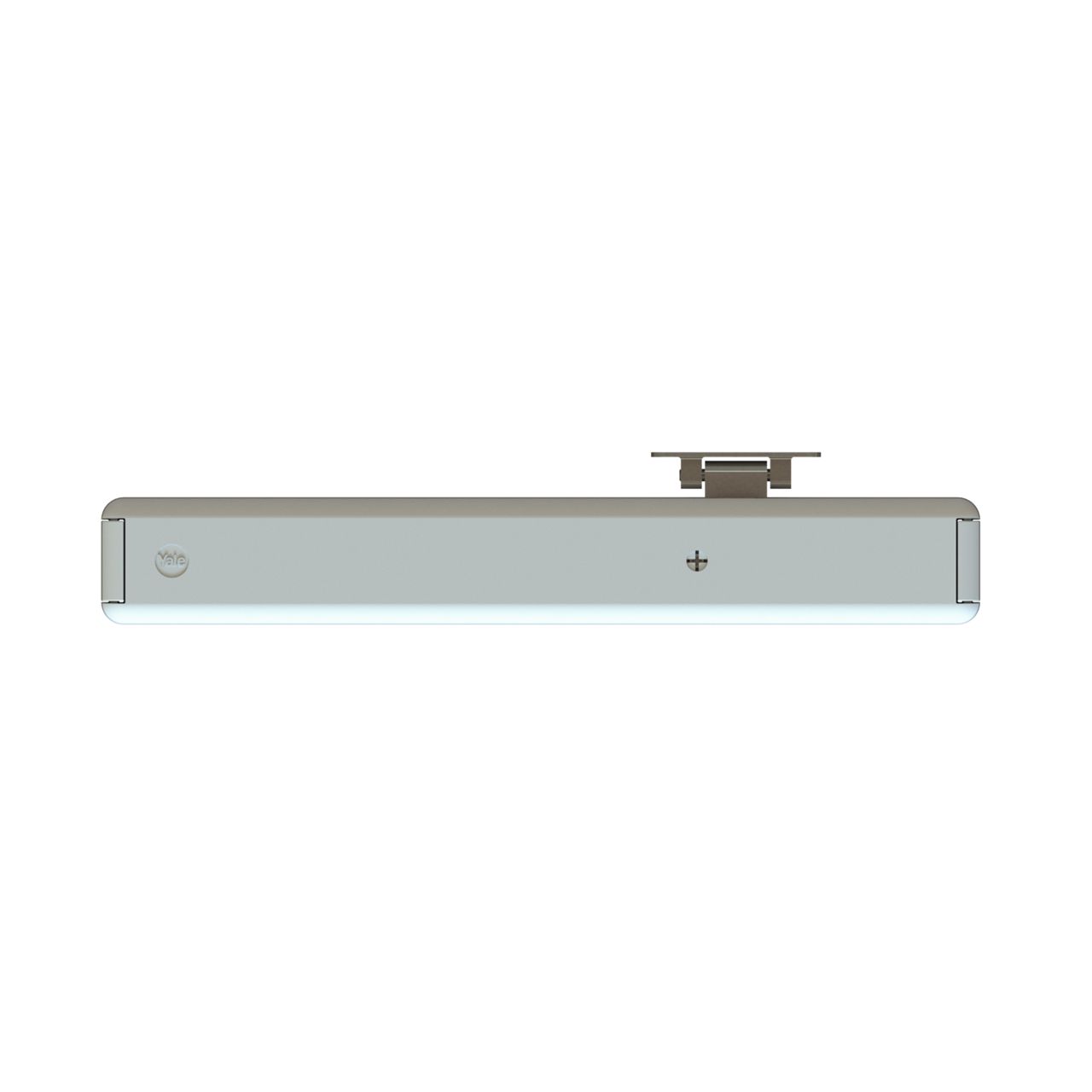

    Aeron® Smart Window Actuator
    Yale Aeron Wireless Actuator BlackYAR/WSWA/1/BLK
    Yale Aeron Wireless Actuator WhiteYAR/WSWA/1/WH
    Yale Aeron Wireless Actuator SpecYAR/WSWA/1/SPEC
    ACCESSORIES
    Yale Connect Plus Hub 2YAR/SWAA/HUB/-I-D
    Yale Aeron System Zigbee RemoteYAR/SWAA/ZRT
    Yale Aeron Actuator Zigbee ModuleYAR/SWAA/ZMD
    Yale Aeron® Sync LoomYAR/SWAA/SSL
    Yale Aeron Standard 24VDC Power SupplyYAR/SWAA/SPS
    SPARE PARTS
    Yale Aeron Actuator Accessory PackYAR/SWAA/AP
    Yale Aeron Actuator End Cap BlackYAR/SWAA/EC/BLK
    Yale Aeron Actuator End Cap WhiteYAR/SWAA/EC/WH
    Yale Aeron Actuator End Cap SPECYAR/SWAA/EC/SPEC
    Yale Aeron Pivot BracketYAR/SWAA/PVT
    Yale Aeron Wiring 6pin Connector PlugYAR/SWAA/W6CP
