Aeron® Window Control System
Designed to operate your windows at the touch of a button, whether using a wall switch or the Aeron® Wireless Remote, or even from anywhere around the world using your smart device with the Yale Home App.

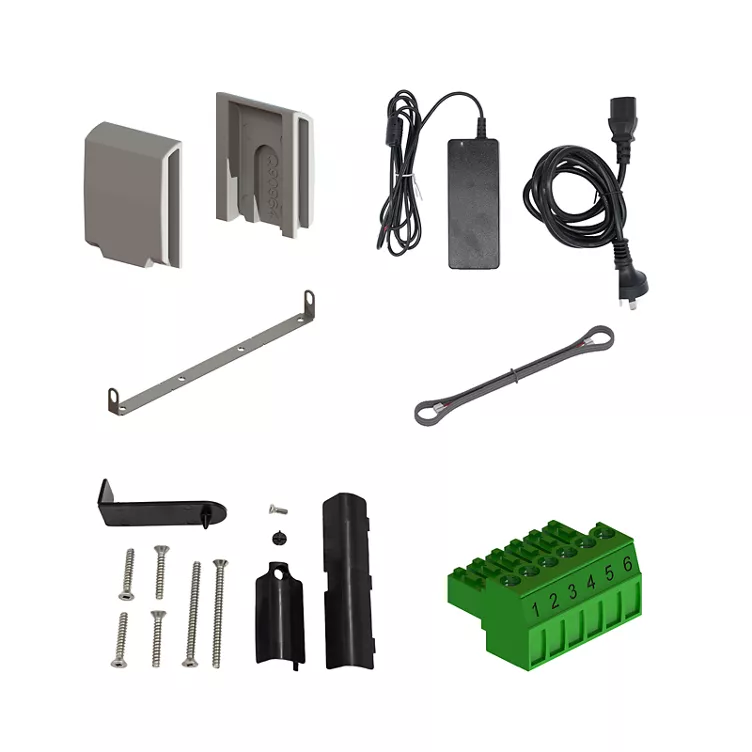

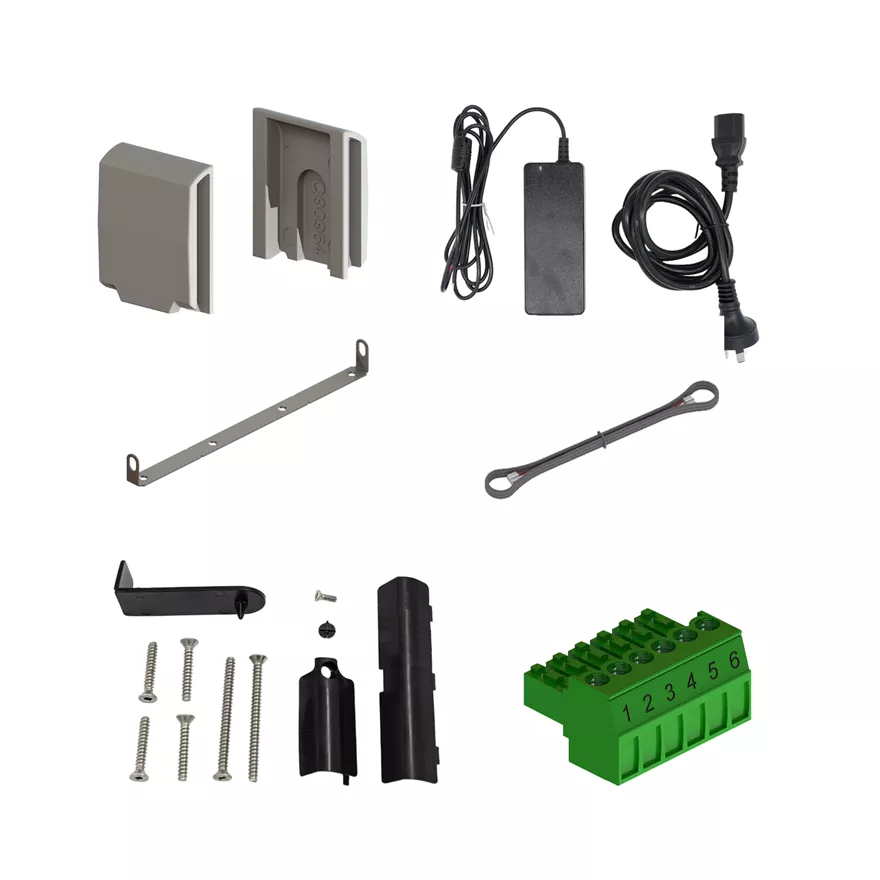

Aeron® Accessories & Spare Parts
Range of accessories and spare parts are available to support Aeron® Smart Window System installation.

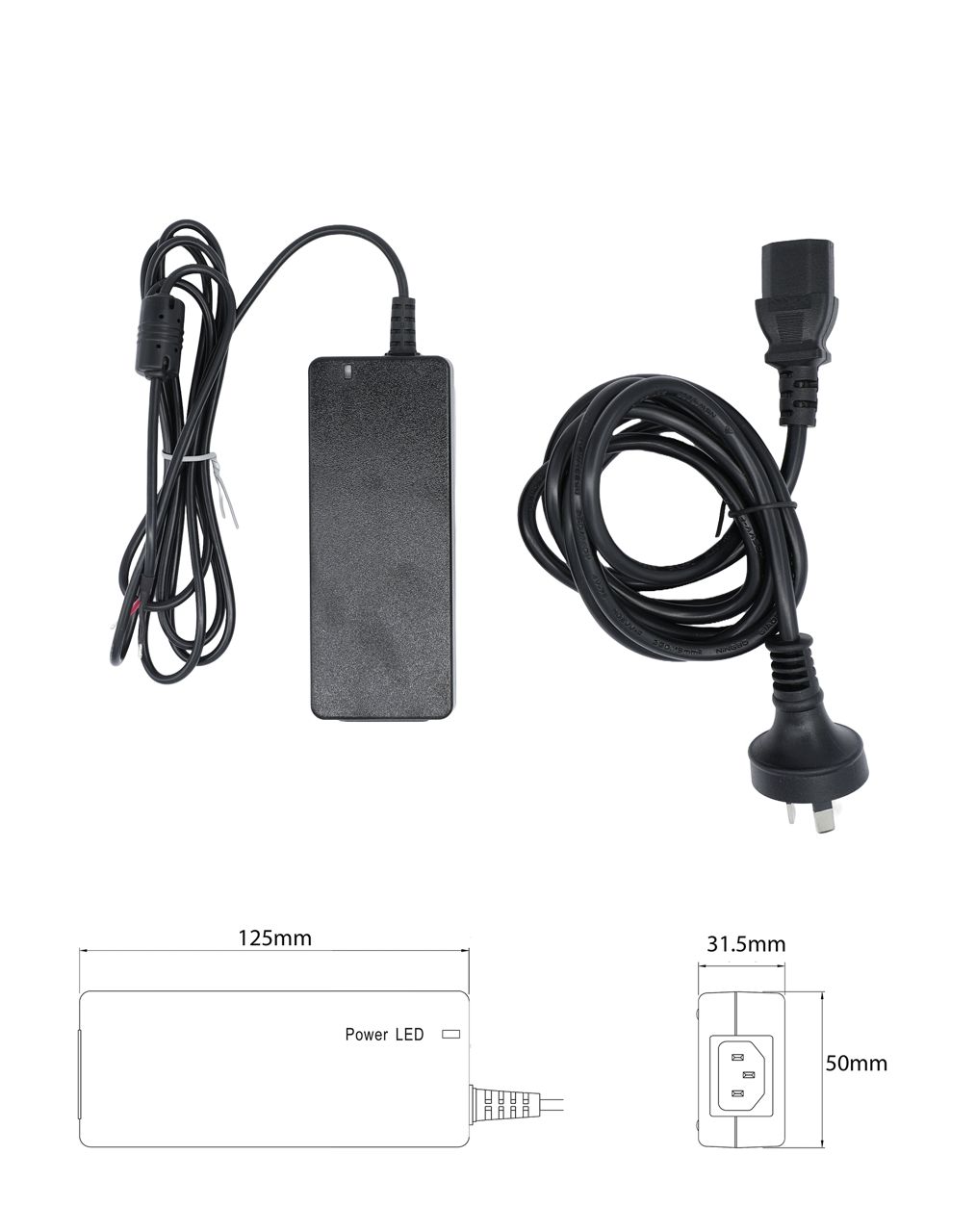

Yale Aeron® Standard 24VDC Power Supply
YAR/SWAA/SPS
Each Aeron® Window Actuator requires 24V DC power supply. The Yale Aeron® Standard 24VDC Power Supply is a transformer designed to convert mains power to the required 24V DC used to power each Window Actuator. Please consult a professional to work through the requirements for your system.
Note: Wiring must be completed by a licensed electrician. Please ensure that all wiring is completed by a professional to be compliant as governed by local building codes, regulations, and/or laws.
Features and Specifications
- 24V DC, 1.67A
- 600mA per Actuator. One power supply can power up to two Aeron® actuators
- For double Actuators (Synchronisation) setup, the same power supply must be used for both actuators

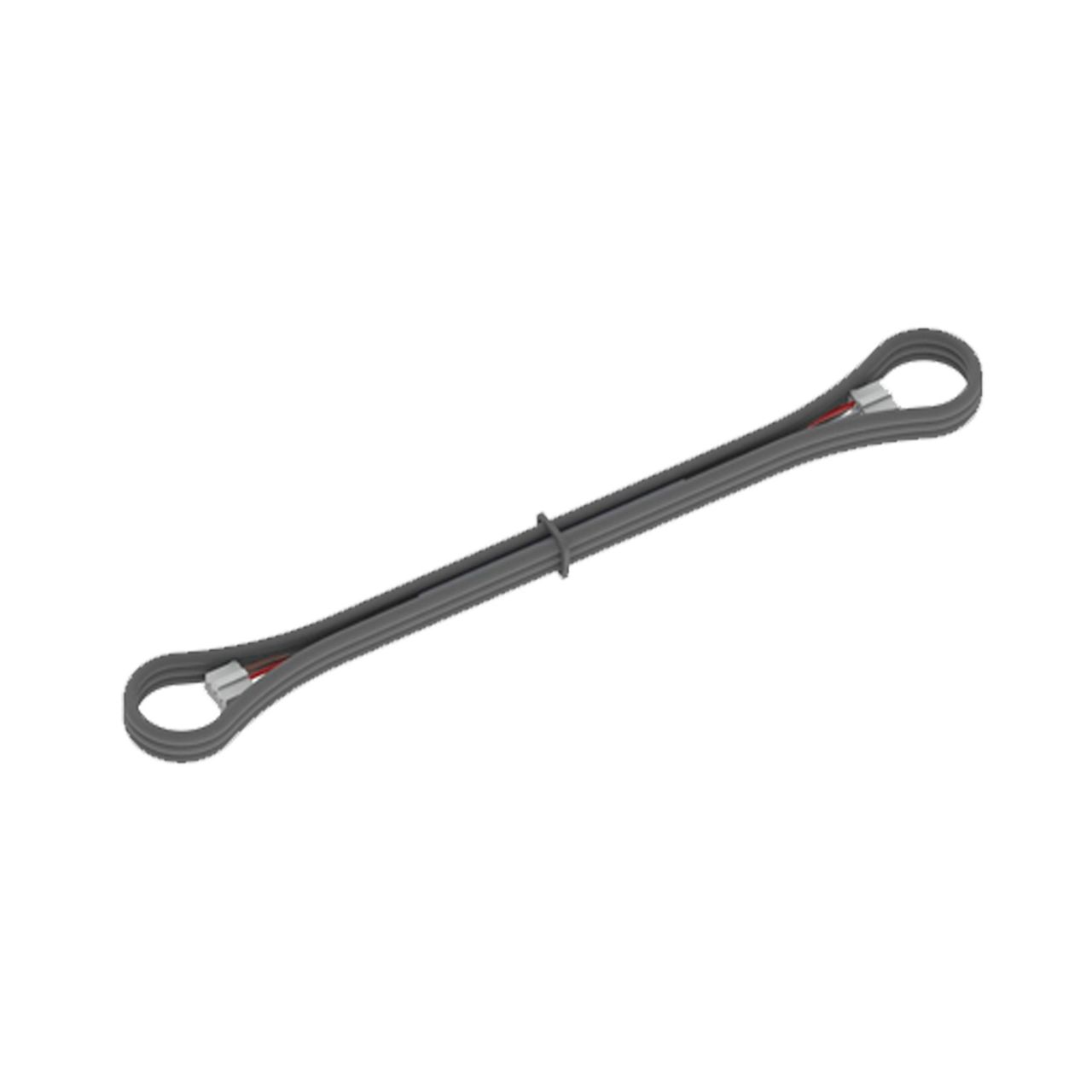

Yale Aeron® Sync Loom
YAR/SWAA/SSL
The 1.8m long synchronisation loom cable allows a pair of actuators to be synchronised to operate together, with one actuator designated the master controlling operator and the other a slave actuator. Ideal for windows more than 900mm wide, or for heavy windows, where two actuators are required to operate the window.
Spares
The following products are all Spare Parts and all come complete with every Aeron® Window Actuator. They are listed as additional spares if required to be purchased separately.

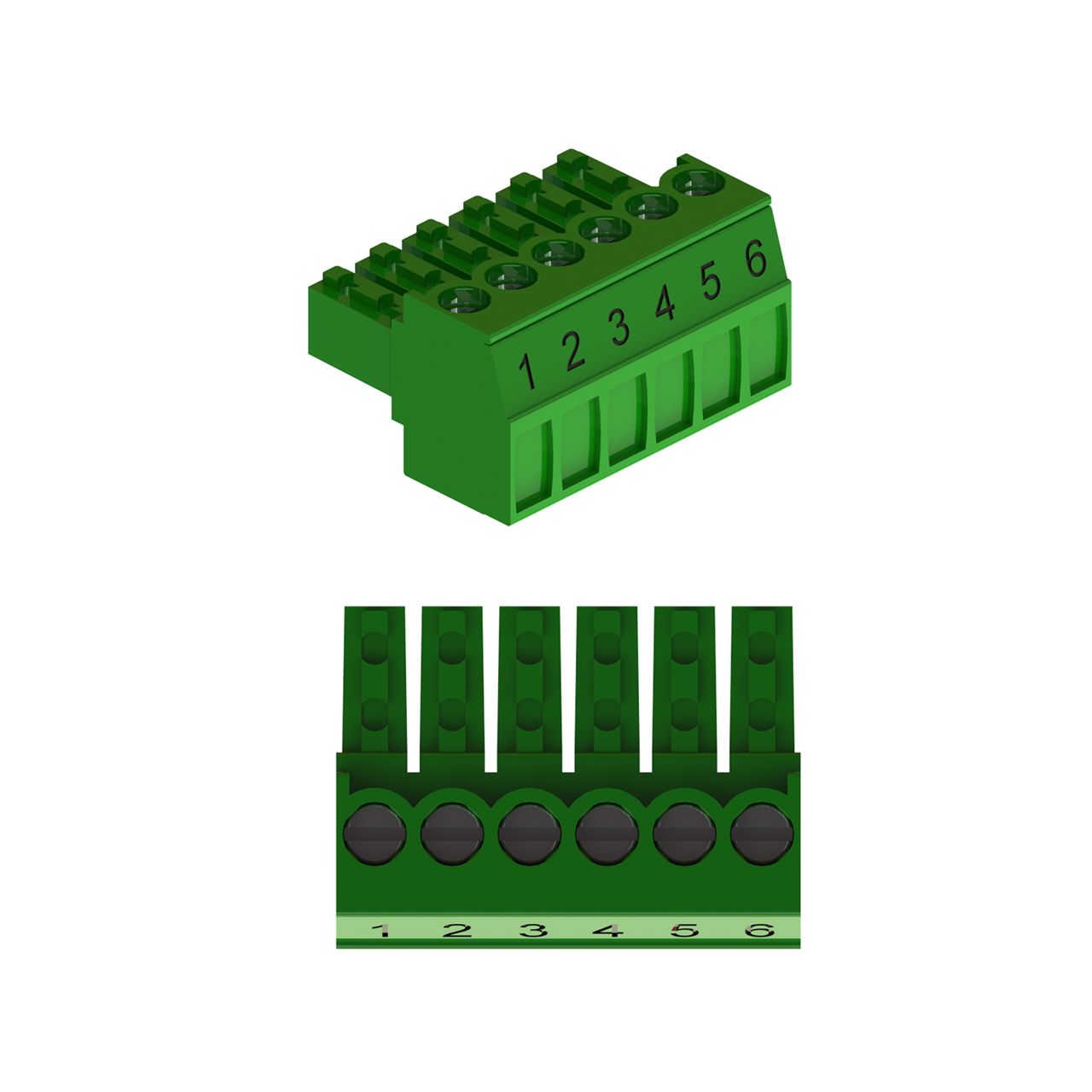

Yale Aeron® Wiring 6pin Connector Plug
YAR/SWAA/W6CP
6 Pin removeable connector plug specifically designed for Aeron® Actuator for easy wiring installation is available to purchased separately. Pins are marked with #1 to #6 to guide electrician on how to wire, guided by the installation instructions and wiring diagrams.
Connector plug Pin Guide
- #1 V IN 24+ : Power from Transformer
- #2 IN 24- : Power from Transformer
- #3 OUT 24+ : Power output to switch (Common)
- #4 SW CLOSE : Switch Wire to Close
- #5 SW OPEN : Switch Wire to Open
- #6 V OUT 24- : Earth (Ground)

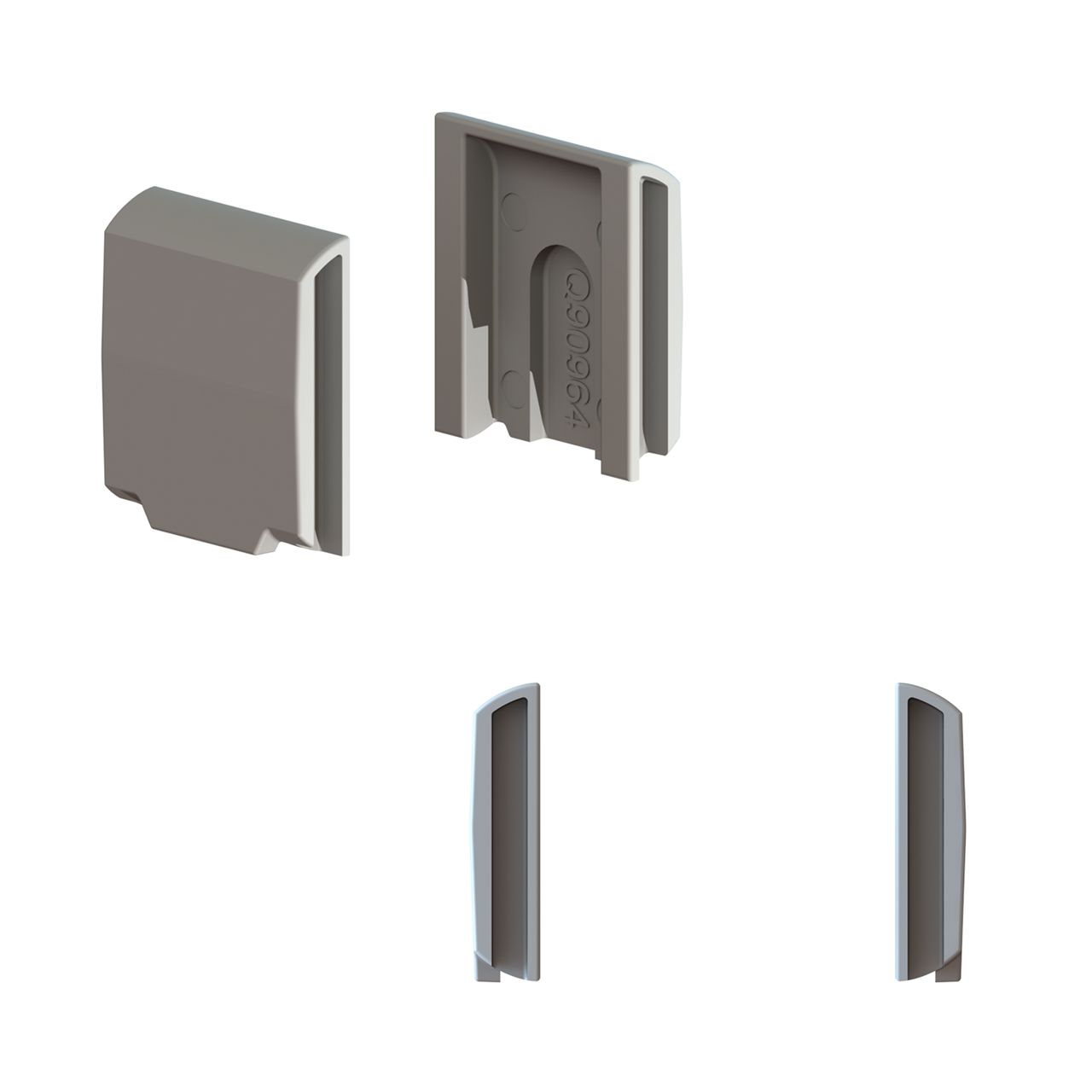

Yale Aeron® Actuator End Cap
YAR/SWAA/EC/***
Actuator end caps are used to mount Aeron® Actuator body on the Pivot bracket and cover the ends. End caps are colour matched with actuator body. Range of colours are available on application. End Caps are made from Cast Zinc and comes in pairs of two.

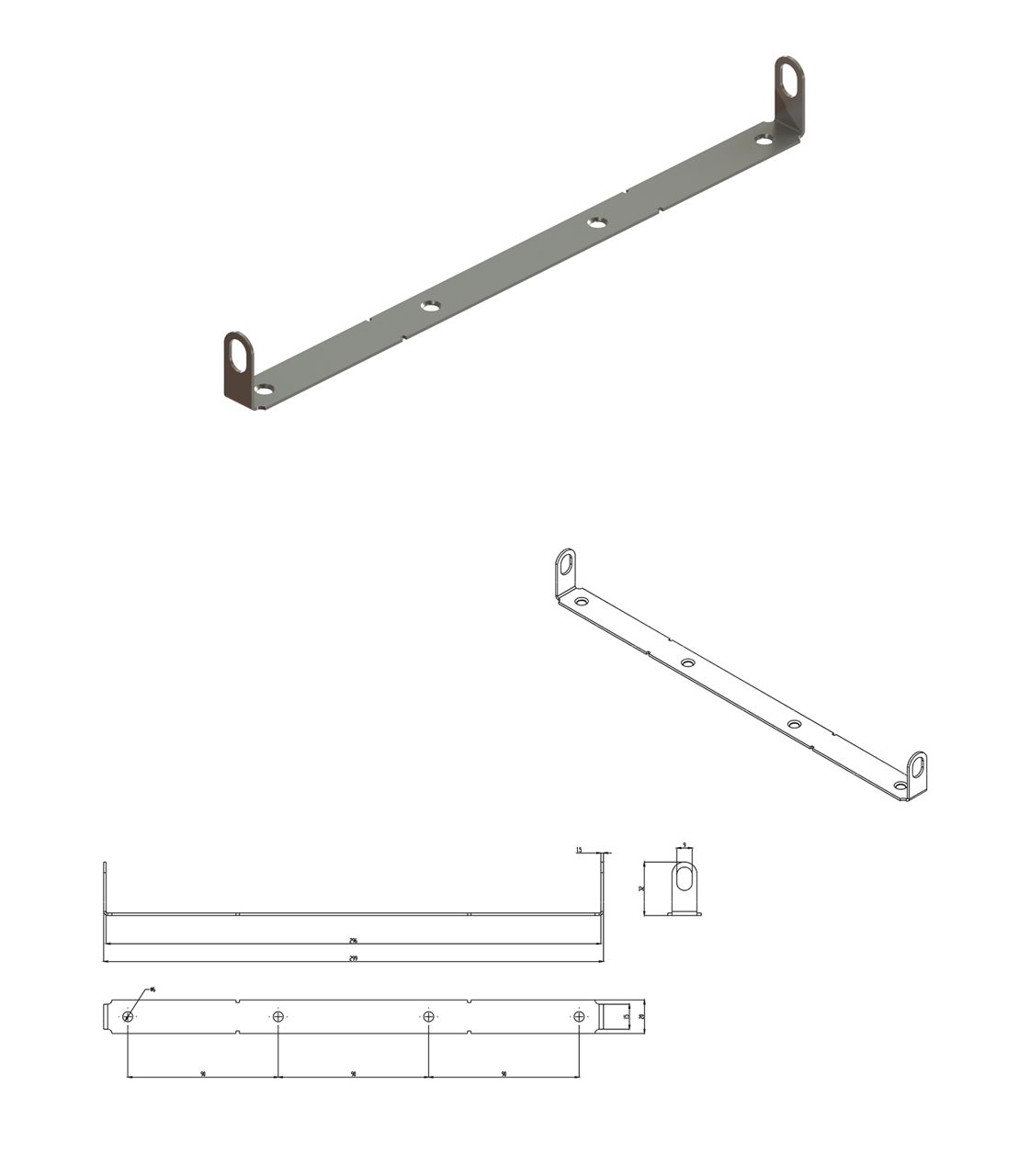

Yale Aeron® Pivot Bracket
YAR/SWAA/PVT
Integrated one piece pivot bracket made from pressed stainless steel 304 material allows Aeron® Actuator to be easily installed. The Yale Aeron® Pivot bracket allows the Aeron® Actuator to move slightly as it operates the window and ensures actuator follows the opening and closing arc of the window to increase the longevity of system.

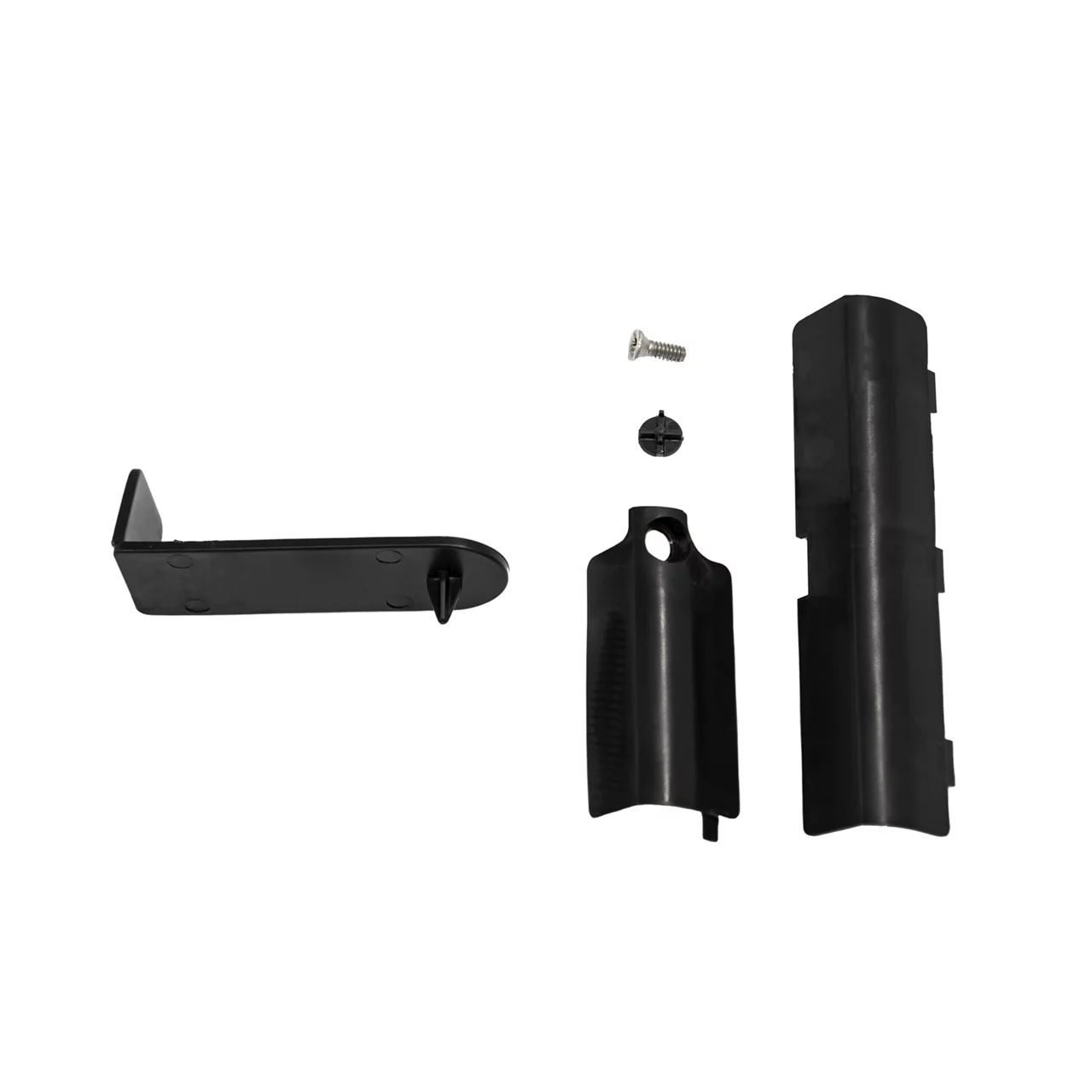

Yale Aeron® Actuator Accessory Pack
YAR/SWAA/AP
The Yale Aeron® Actuator Accessory kit include the following components:
- 1 x Chain release tool (Black)
- 1 x Clutch cover (Black)
- 1 x Aeron® cable entry cover (Black)
- 1 x Aeron® module cover (Black)
- 1 x 4g x 40 Stainless Steel Pozi #1 screw
- 4 x 8g x 1 Stainless Steel countersunk #2 screw
- 2 x 8g x 1/2 Stainless Steel pan #2 screw
Note: Aeron® module and cable entry covers are available in Black colour only.
Description Part number Yale Aeron® Standard 24VDC Power Supply YAR/SWAA/SPS Yale Aeron® Sync Loom YAR/SWAA/SSL SPARES Yale Aeron® Wiring 6pin Connector Plug YAR/SWAA/W6CP ACTUATOR END CAP Yale Aeron Actuator End Cap Black YAR/SWAA/EC/BLK Yale Aeron Actuator End Cap White YAR/SWAA/EC/WH Yale Aeron Actuator End Cap SPEC YAR/SWAA/EC/SPEC Yale Aeron® Pivot Bracket YAR/SWAA/PVT Yale Aeron® Actuator Accessory Pack YAR/SWAA/AP Note: Aeron® module and cable entry covers are available in Black colour only.
