Total Control via App
The Yale Home App allows you to lock and unlock your door, grant access to others and keep track of visitor access.
Yale Assure® Lever
Upgrade your existing lever or knob with the Assure Lever, a smart lever lock with a sleek keypad for key-free entry. Never worry about carrying or losing your house keys again! Create unique entry codes for friends and family and remove codes whenever you need to. It's great for side entry doors, garage entry, basement doors, home offices - super easy to use and installs in minutes with just a screwdriver on doors with a single hole (no deadbolt).
For those who cherish tradition, the mechanical key override ensures a fail-safe access alternative, bridging modern technology with conventional means. With this mechanical key override option, you can enjoy the best of both worlds—ensuring an alternative means of access for added peace of mind. Additionally, the Yale Assure Lever comes with the C4 Keyway, enabling customers to customise this lock to be keyed alike.
Works With Your Smart Home
The Assure Lever comes with a Yale Home module, allowing you to lock/unlock, share access, and see who comes and goes, all using your Yale Home App and Apple HomeKit at your door! For ultimate convenience, your Assure Lever will unlock automatically as you approach the door and relock once the door is closed! Plus, you can upgrade with the Yale Connect Plus Wi-Fi Bridge (sold separately) to access your lock remotely and enjoy voice assistant capability. Easily integrate it into your Google, Siri, Samsung, or Alexa-enabled smart home devices. The Assure Lever is also compatible with other Yale Modules (Z-Wave Plus and ZigBee*) to integrate into most home automation systems, allowing you to control and monitor the lock from anywhere in the world.
*Z-wave and Zigbee Modules are sold separately
Matt Black
Satin Chrome

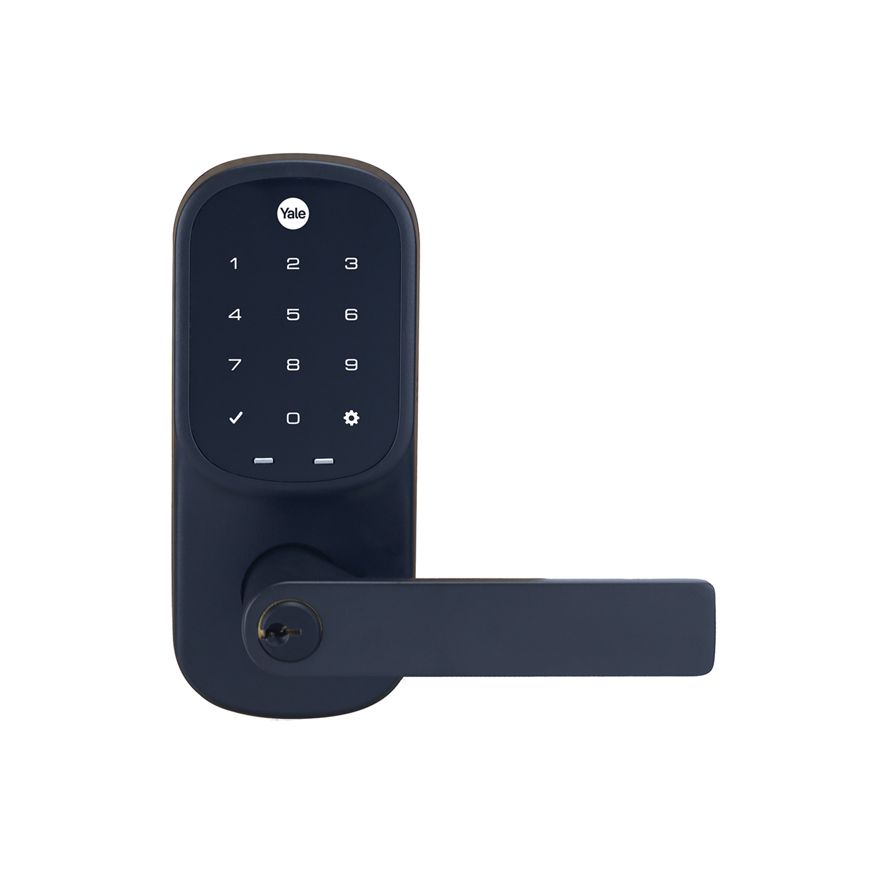

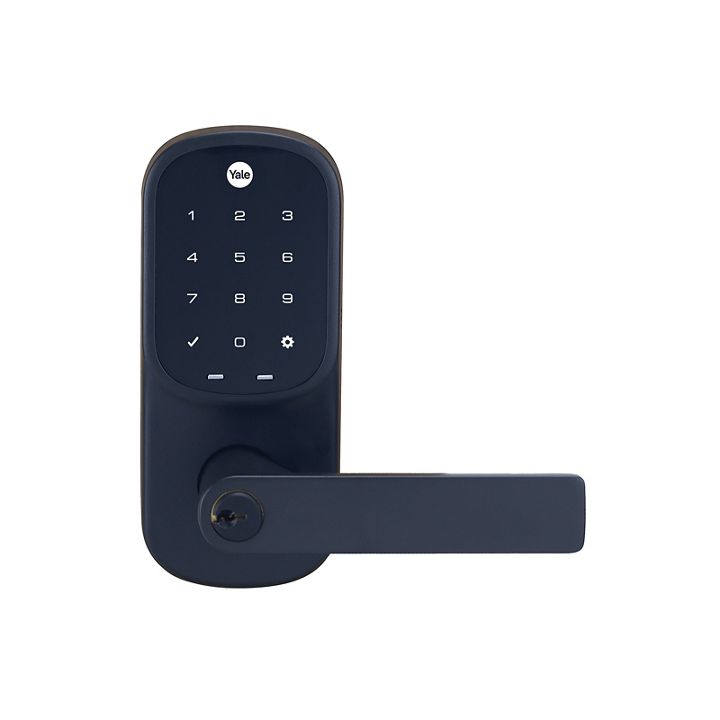

Yale Assure Lever - Exterior - Matt Black
Yale Assure Lever - Exterior - Matt Black

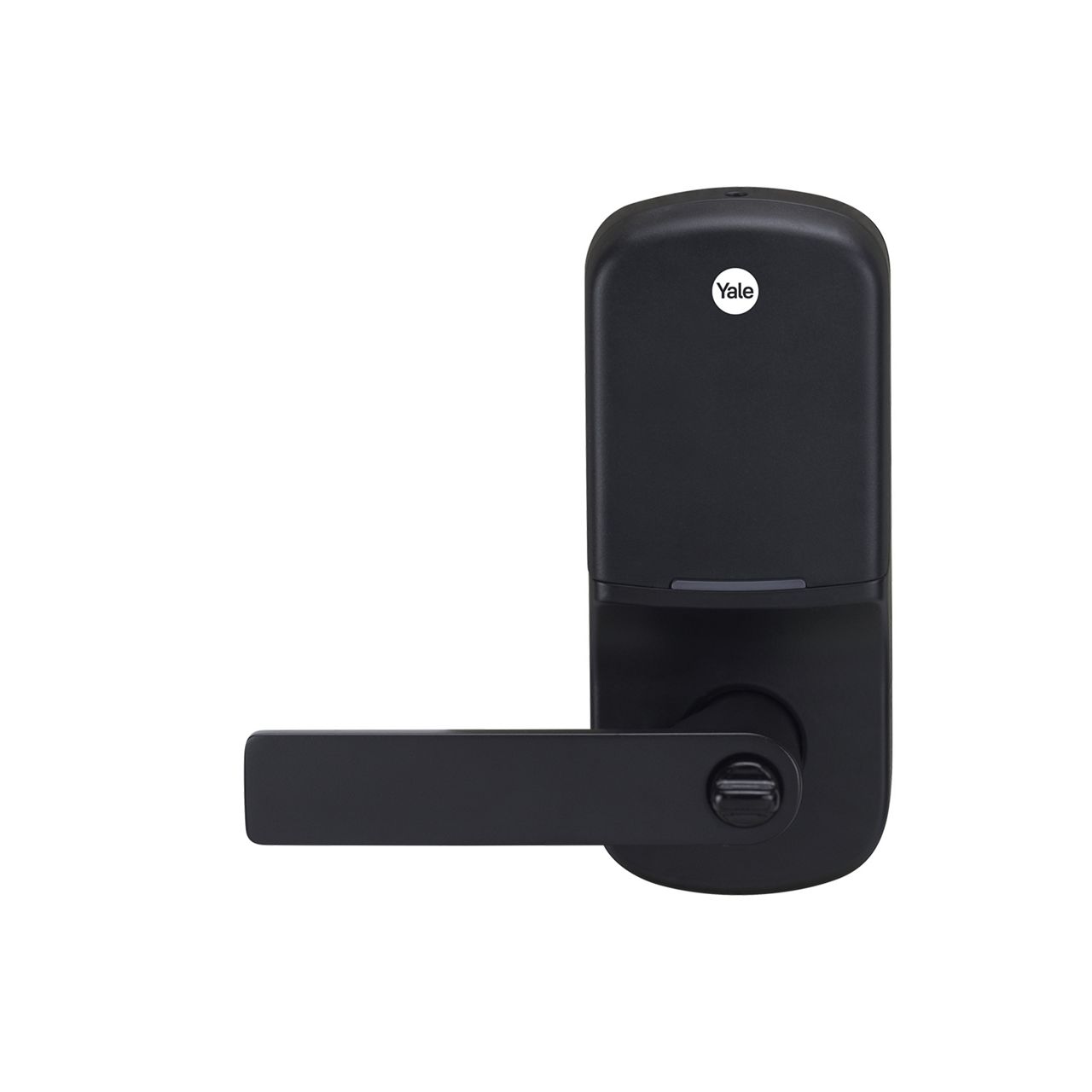

Yale Assure Lever - Interior - Matt Black

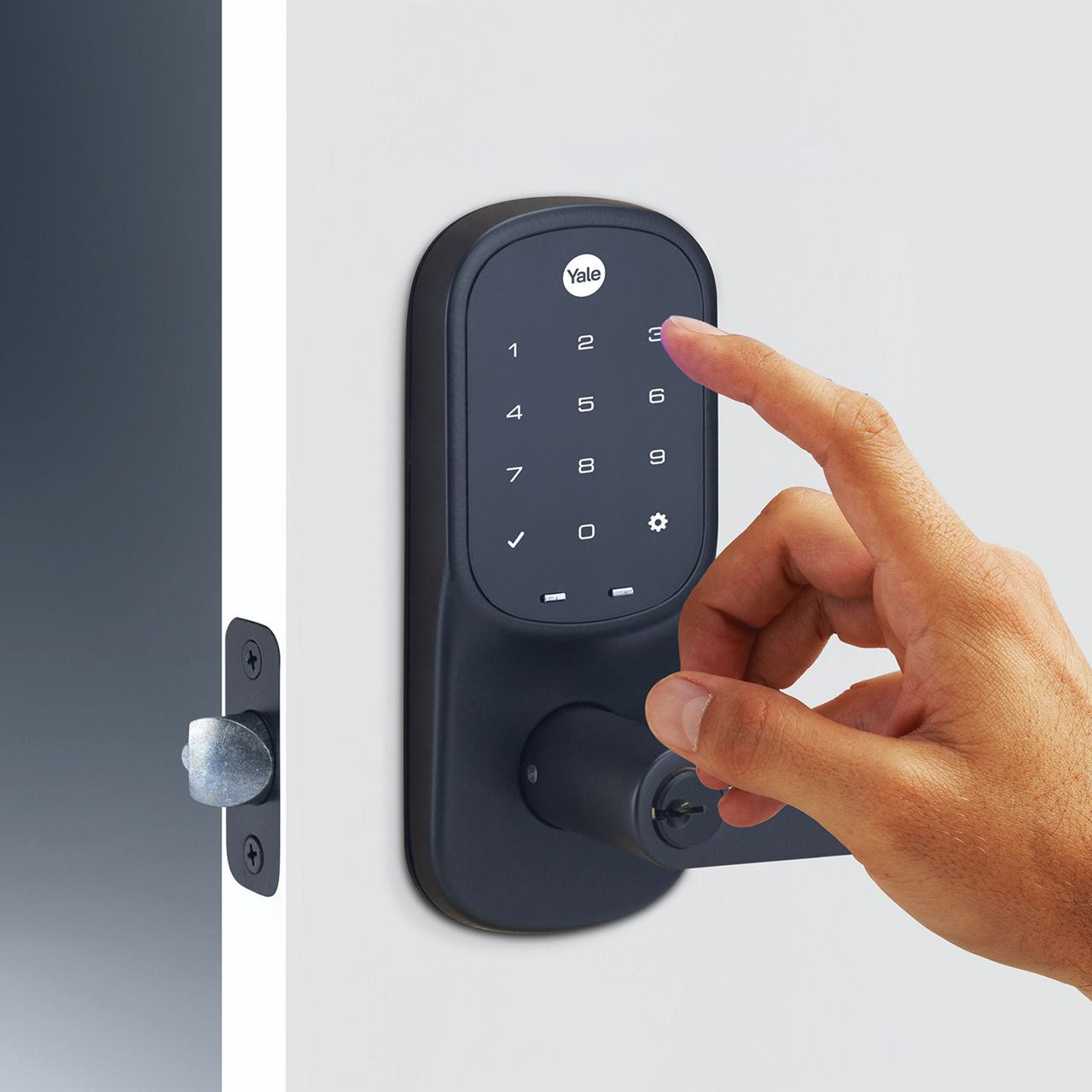

Yale Assure Lever Matt Black using keypad

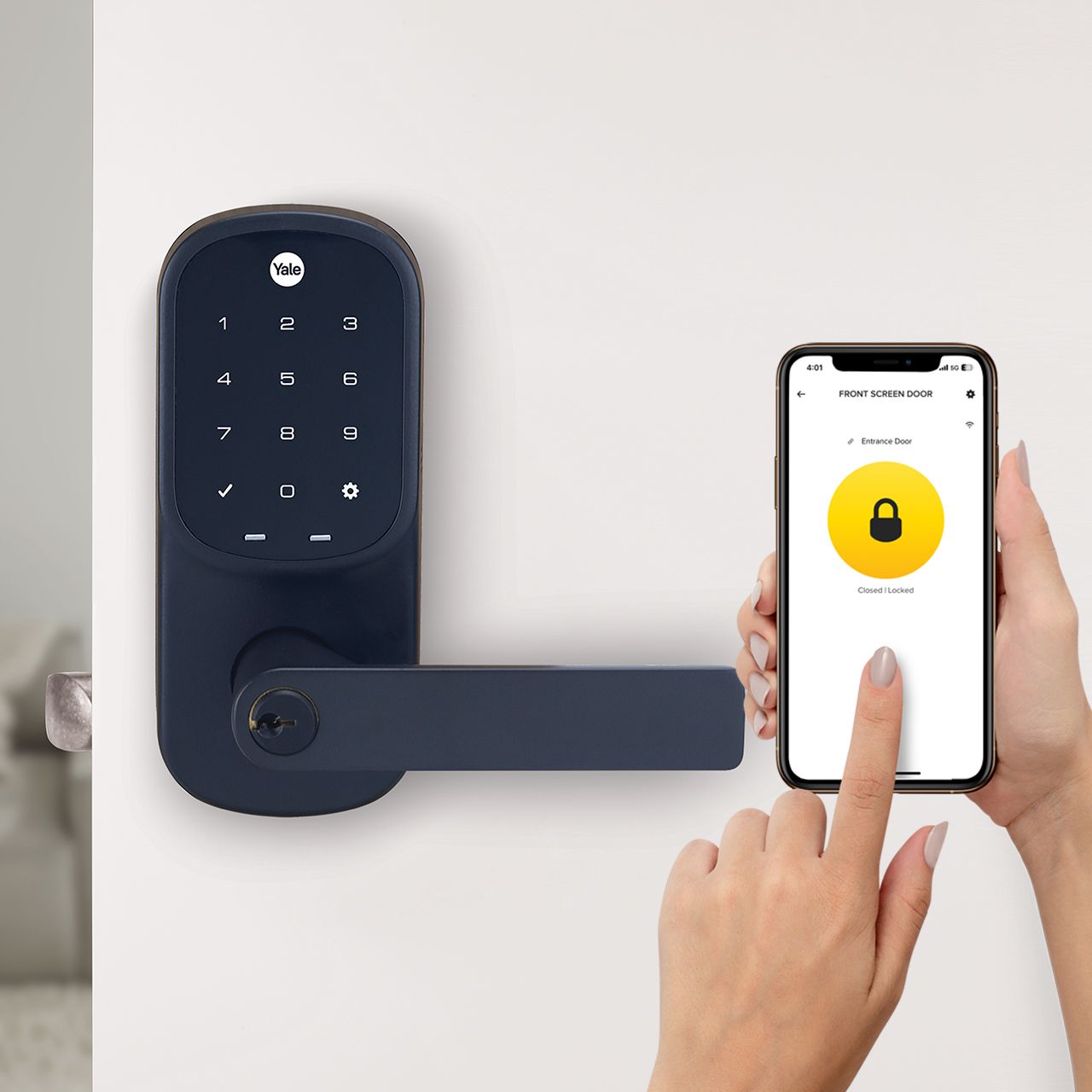

Yale Assure Lever Matt Black with Yale Home App

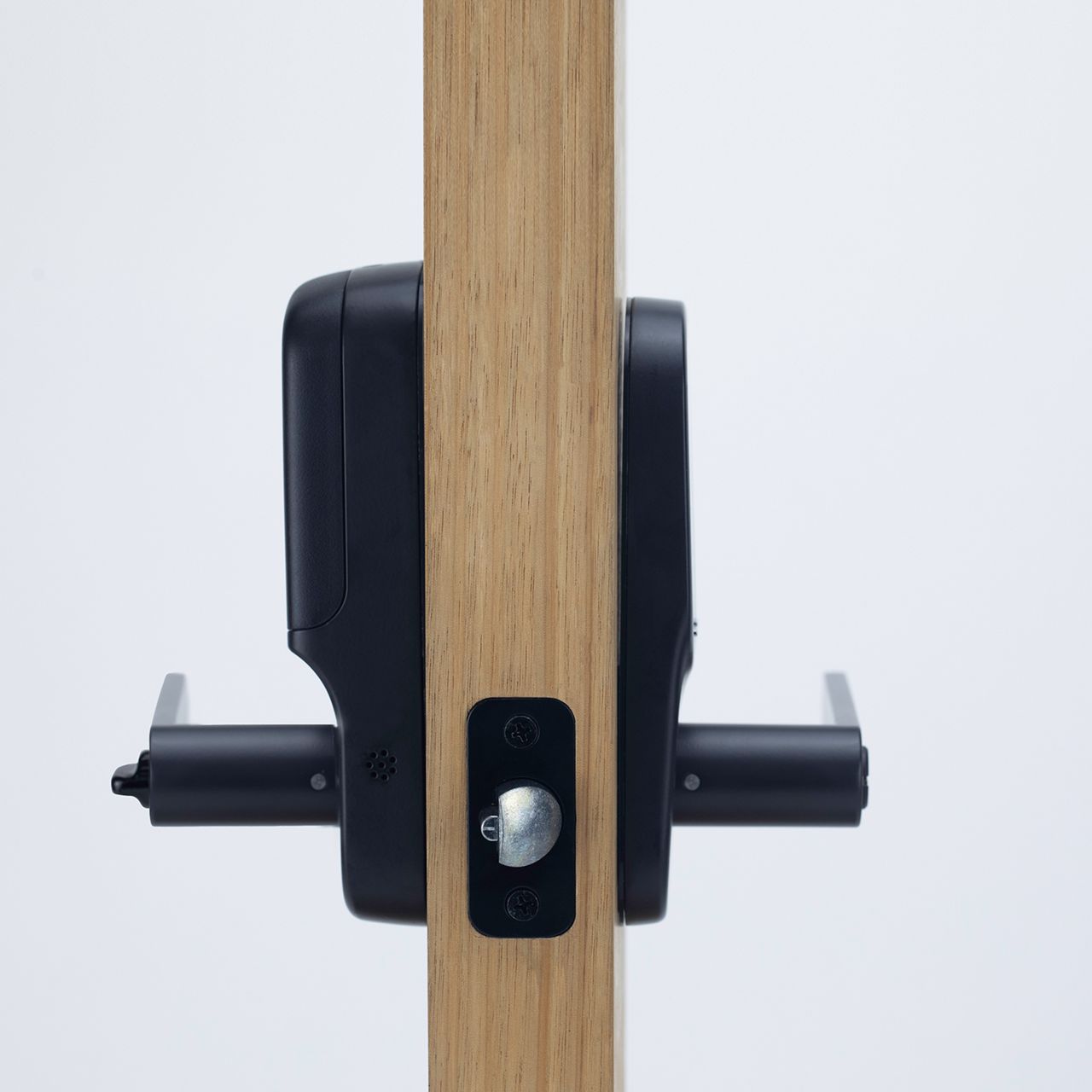

Yale Assure Lever Matt Black - Side view

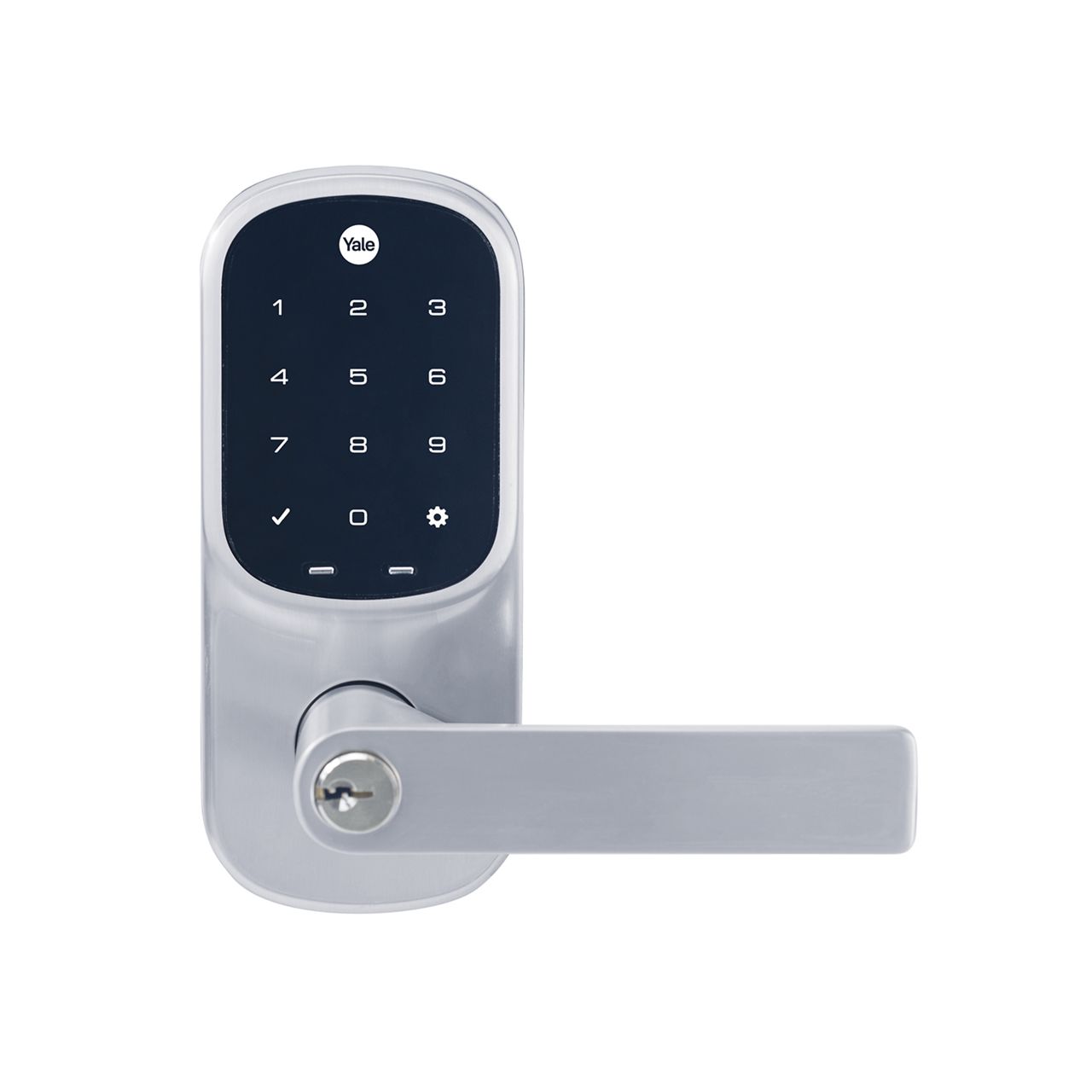

Yale Assure Lever - Exterior - Satin Chrome
Yale Assure Lever Satin Chrome using key

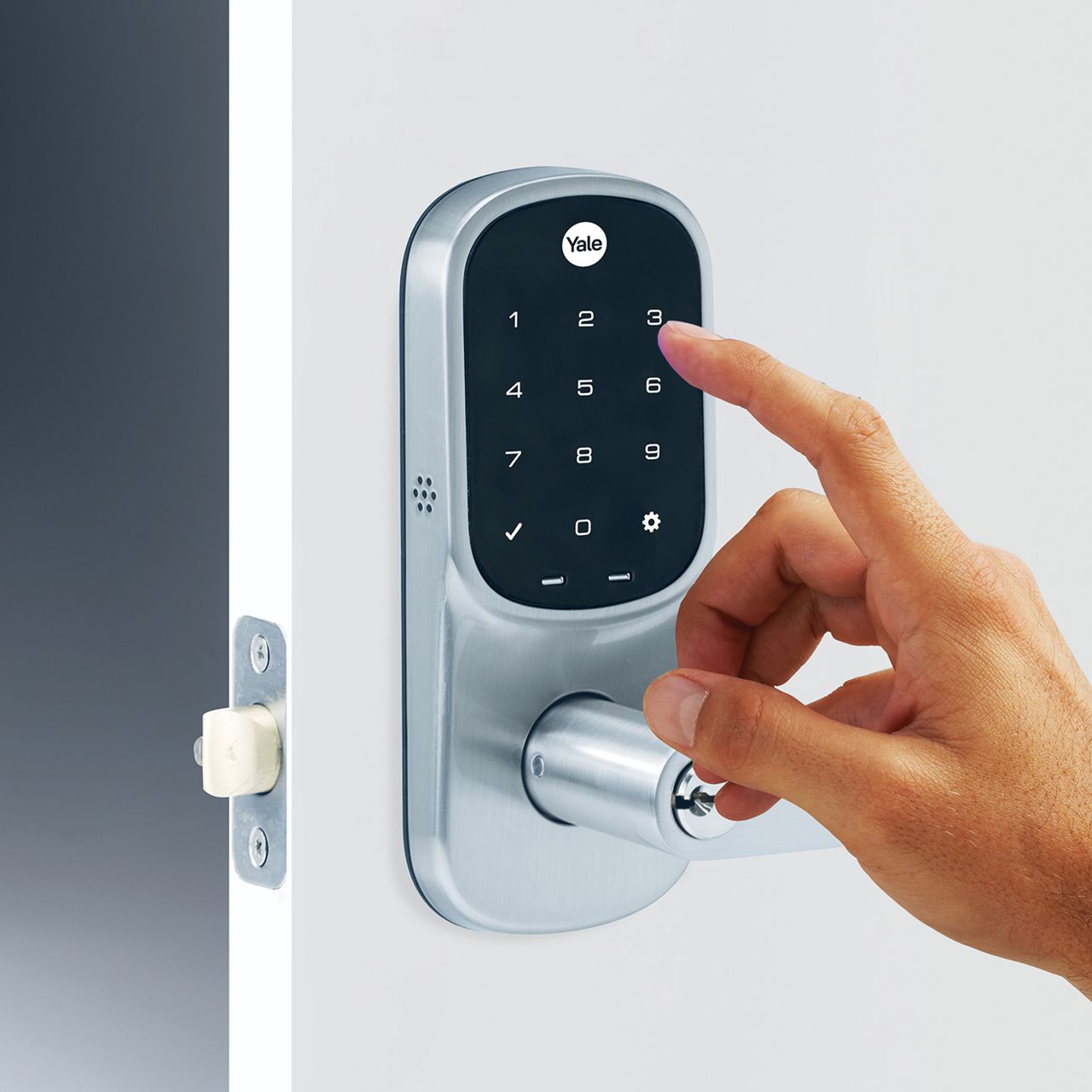

Yale Assure Lever Satin Chrome using keypad

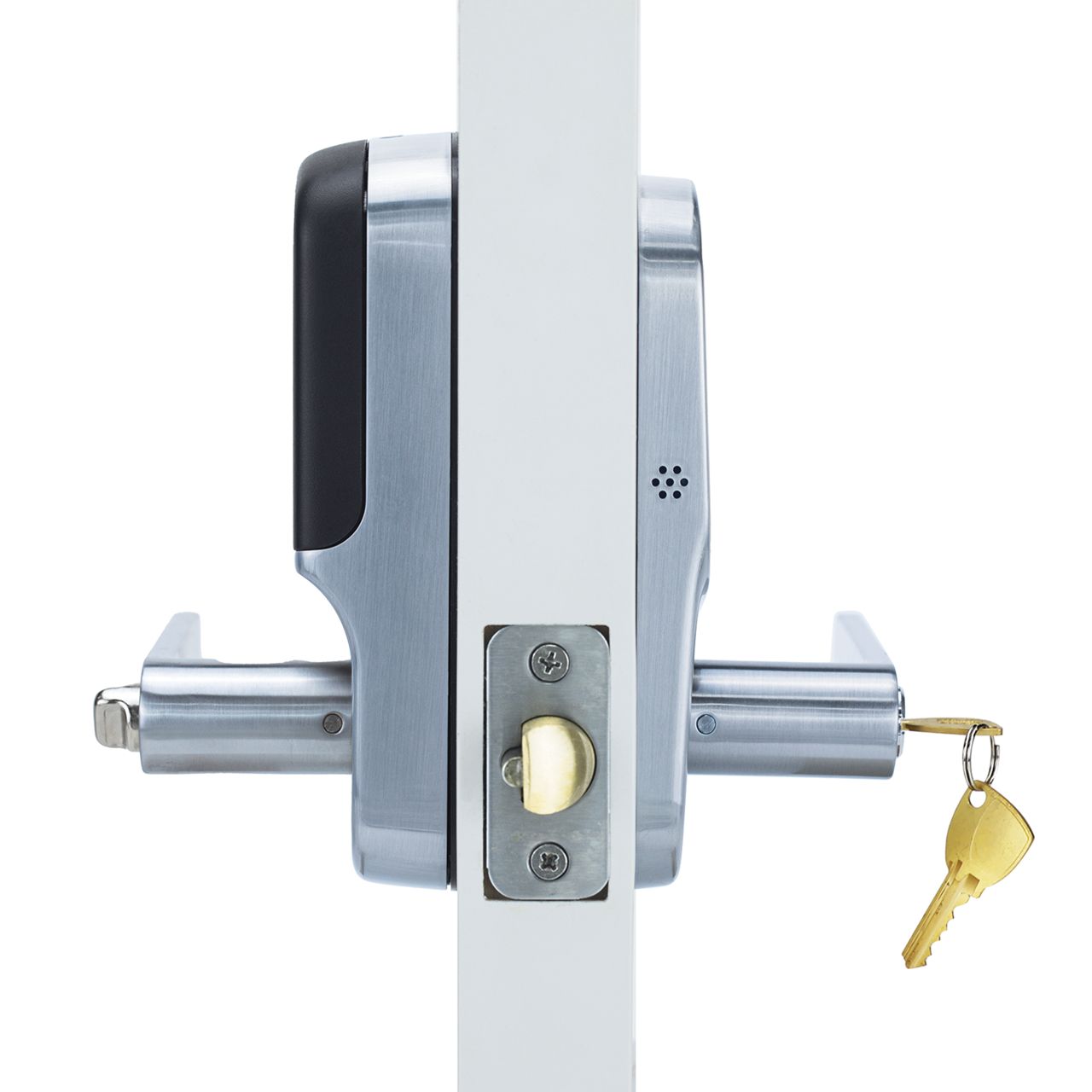

Yale Assure Lever Satin Chrome - Side view
Features
Auto unlock
Auto unlock your door as you walk up without the need to take out your phone. The door position sensor tells you if your door is open or closed.
Door position sensor
Tells you whether your door is open or closed.
24/7 Lock Activity trails
Keep track of all entry access to the lock via the activity trail as they occur.
Touchscreen Keypad
Unlock by entering your PIN code and lock-up with a simple tap of the keypad.
One touch locking
Allows the user to simply place a hand on the keypad with the door closed to initiate locking the door. Create up to 25 unique PIN codes, adjust lock features and personalise your settings.
Key override
C4 Key override for optional secondary access.
Tamper Alarm
Protected by an 80 dB internal alarm.
Retrofit
Retrofit to a 54mm bore hole. Replace your mechanical deadbolt with the Yale Assure digital lock.
Simple Installation
Replaces your existing deadbolt in minutes with just a screwdriver.
Backset Adjustable 60-70mm Power 4 x AA Alkaline batteries Body / Case Material Zinc Lock Type / Function Deadlatch Lever Door Thickness Range 35mm to 45mm Door Preparation 25mm latch hole and 54mm lock hole Lock Type Deadlatch Standard Finish Matt Black and Satin Chrome Warranty / Guarantee Yale 3 year Electromechanical
Yale 10 Year Mechanical WarrantyKey Profile (Keyed version) C4 Operational Temperature Range -25C to 60C Operating Humidity up to 95% Approvals RCM Compliant (EN 61000.6.3 2012 & EN 55032 2016)
ANSI/BHMA A156.39 RESIDENTIAL LOCKSETS AND LATCHES (Grade A)
Dimensions
Products Supplied in Box- Yale Assure Lever
- Yale Home Module and Door Sense™
- Installation Guide
- Mounting Screws
- Door Template
- 4 AA Batteries
- Yale Assure Lever
Description Part number Bar code Yale Assure Lever Keyed Smart Deadlatch Matt Black with yale home module YRL226HKMBK 9348313052998 Yale Assure Zigbee Network Module YRD-ZBM-1 9348313024919 Yale Assure Z-Wave Network Module YRD-ZWM-1 9348313025589 Yale Connect Plus Bridge AYR-BDG-CB2-ANZ 4893862054573 Yale Assure Lever Keyed Smart Deadlatch Satin Chrome with yale home module YRL226HKSC 9348313052981
Yale Connect Plus Wi-Fi Bridge
Pair your Yale Assure series and Yale Home module with Yale Connect Wi-Fi Bridge for remote access and compatibility with Amazon Alex, Samsung SmartThings and Hey Google. See compatibility chart for detail. (The Yale Connect Plus Wi-Fi bridge is sold separately)
Compatible with Yale Network Module for Home Automation Integration
The Yale Assure Lock SL is compatible with a Yale network module (available in Z-Wave & Zigbee variants)** to integrate into most home automation systems.
Learn more about Yale Home Module, Zigbee and Z-Wave.
Installation Guide
Yale Assure lever installation guide
**There are many different home automation controllers available that use Zigbee or Z-Wave communication.
The lock connects to the controller, allowing the controller to interact with the lock, and control it. This means the locks functionality will vary depending on the controller the lock is connected to, and the configuration of the controller.
