Touchscreen Keypad
Unlock by entering your PIN code and lock-up with a simple tap on the keypad.
Yale Libi™ Digital Lever Keyed
Experience the perfect blend of simplicity and security with the Yale Libi, a digital lock designed for those who prefer a key-free lifestyle without the need for apps or smart home integration.
Yale Libi™ is ideal for anyone seeking a straightforward, reliable digital lock. It provides secure access using PIN codes and traditional keys - no smartphone connection required. It’s a practical choice for those moving away from traditional keys but still wanting a simple, high-quality solution.
Designed to fit a standard 54mm bore hole, it’s a quick and easy replacement for your existing leverset (single hole, no deadbolt), with no power tools needed.
This digital leverset offers keyless entry with a mechanical override for extra peace of mind. The proximity sensor-activated, backlit LED keypad ensures easy use, even at night, while the glovefriendly keypad and Passage Mode make it perfect for tasks like gardening or laundry - keeping your door unlocked when needed without the worry of accidentally locking yourself out.
Available colours
Matt Black
Satin Nickel

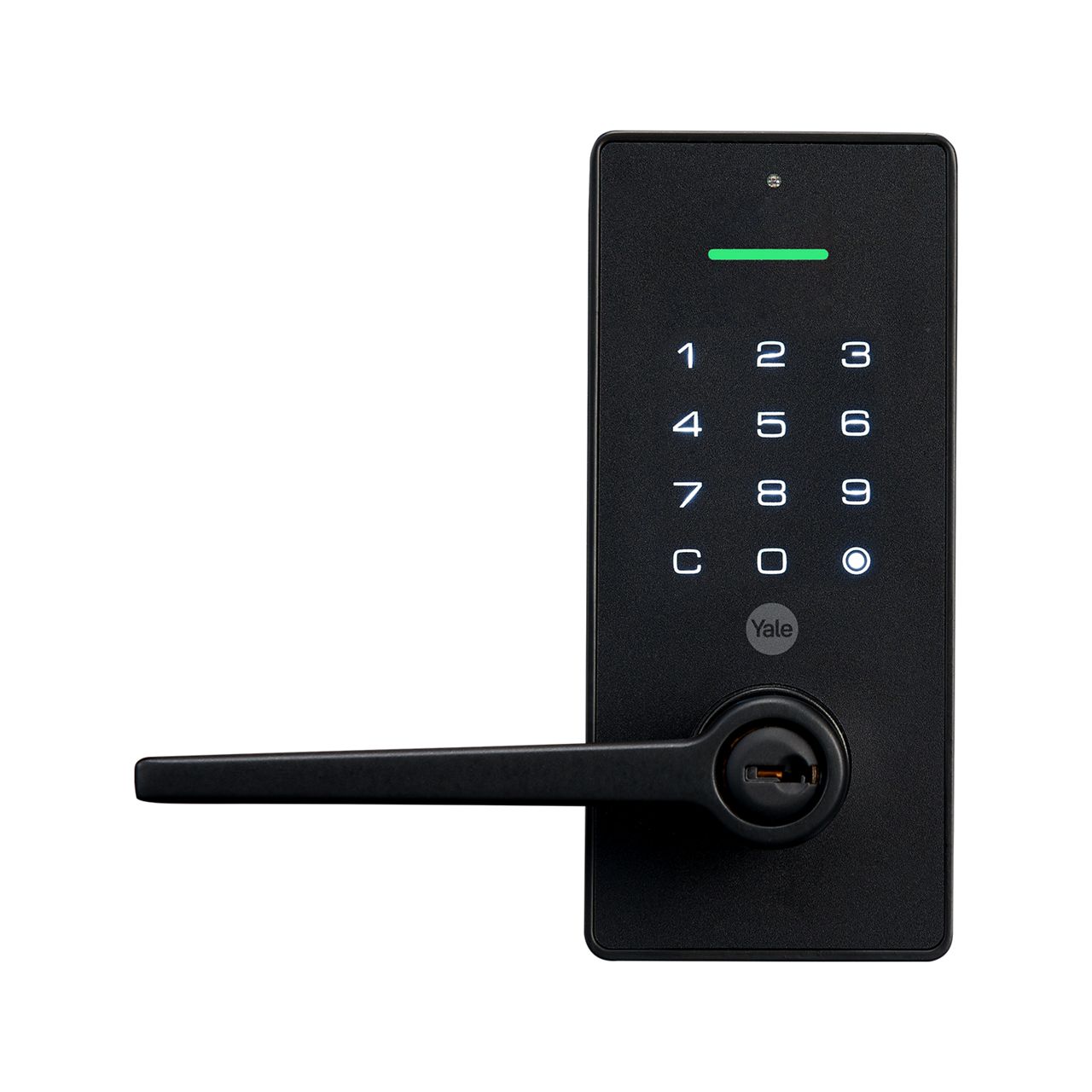

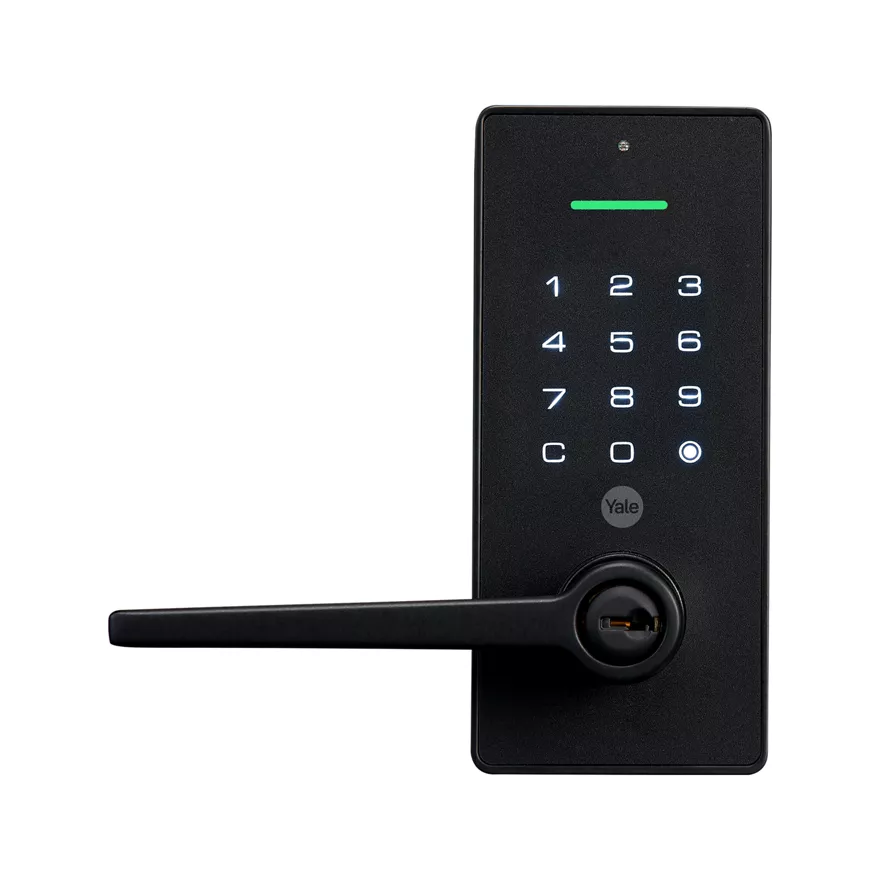

YLBL226NRMBK (exterior view)
YLBL226NRMBK (exterior view)

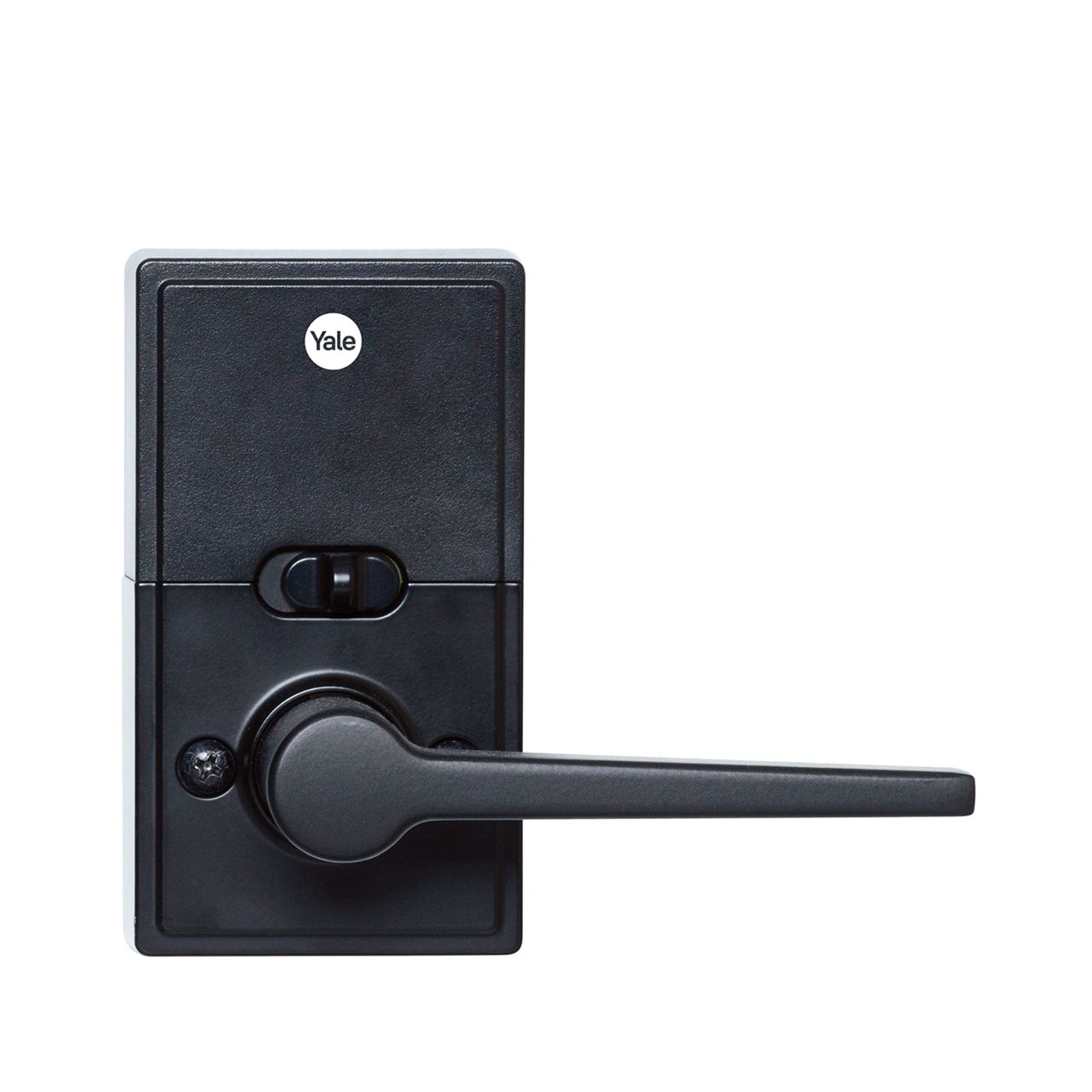

YLBL226NRMBK (interior view)

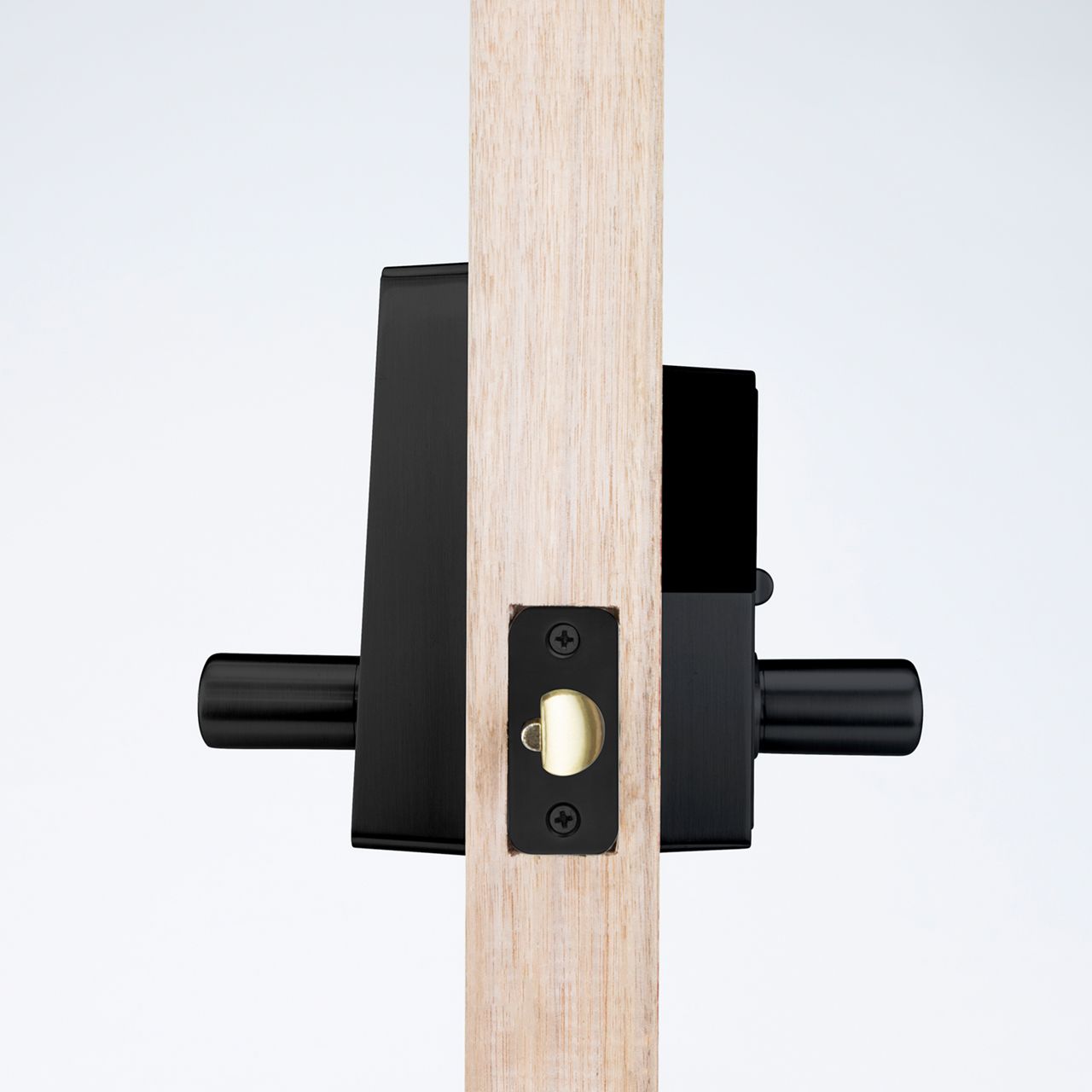

YLBL226NRMBK (side view)

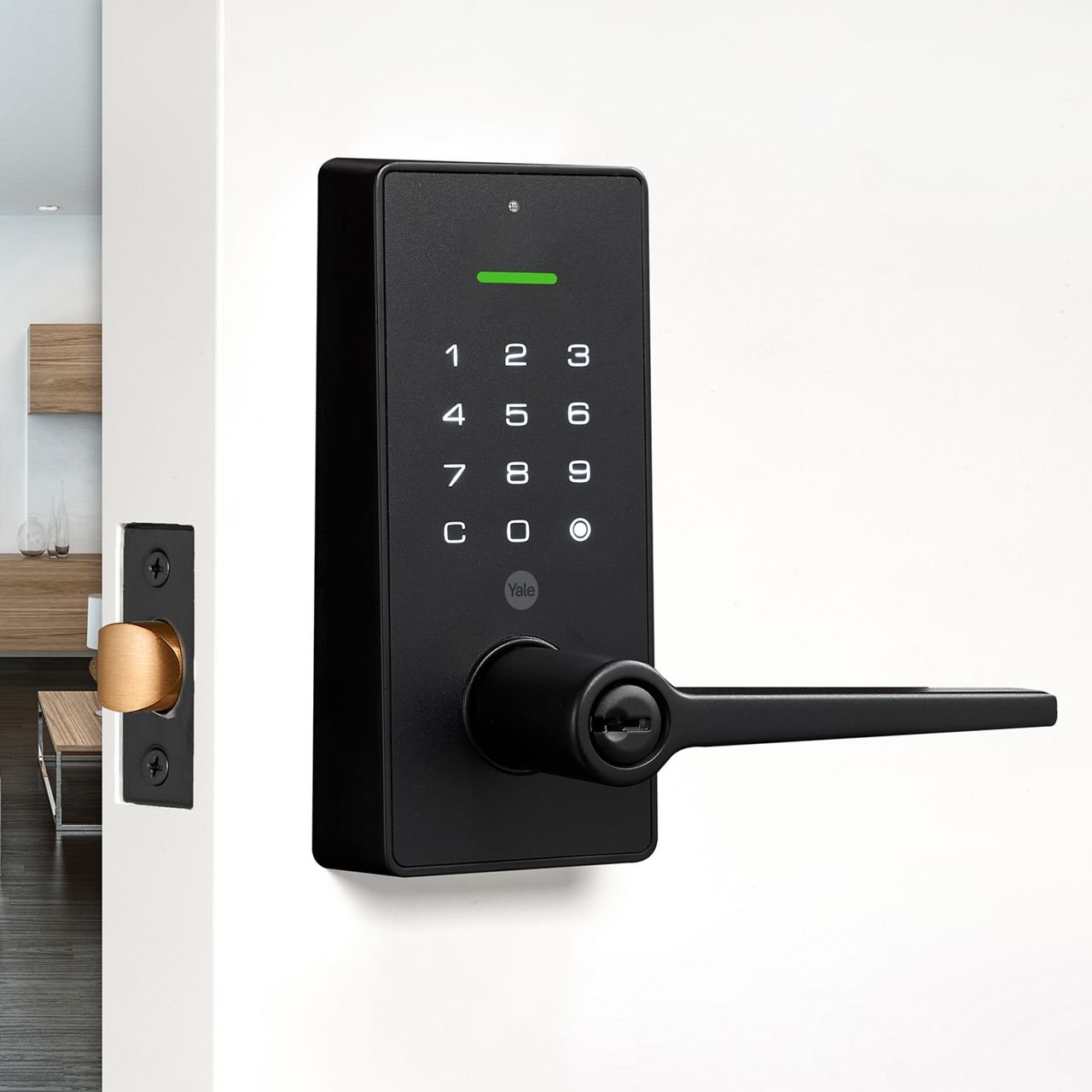

YLBL226NRMBK (in situ)

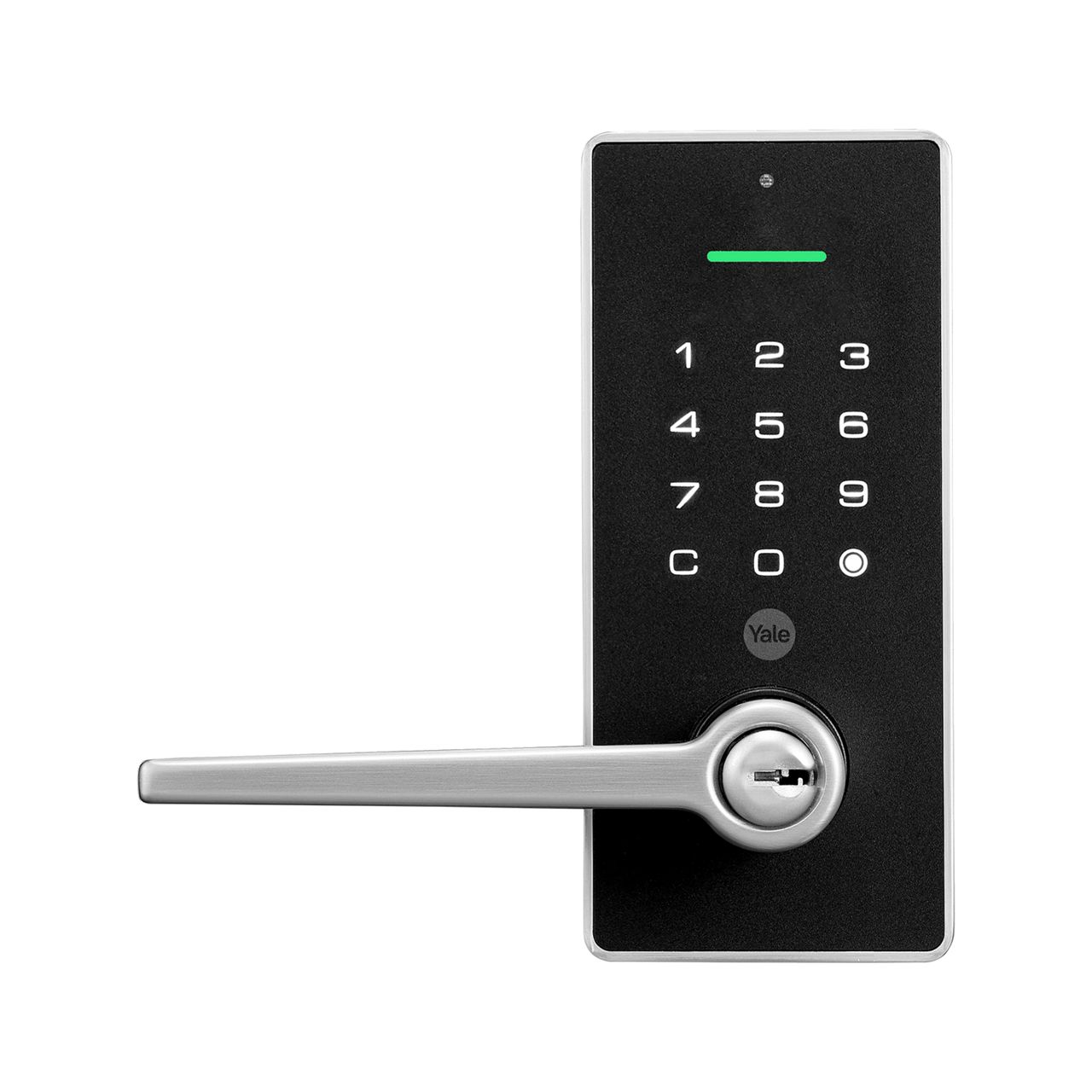

YLBL226NRSN (exterior view)

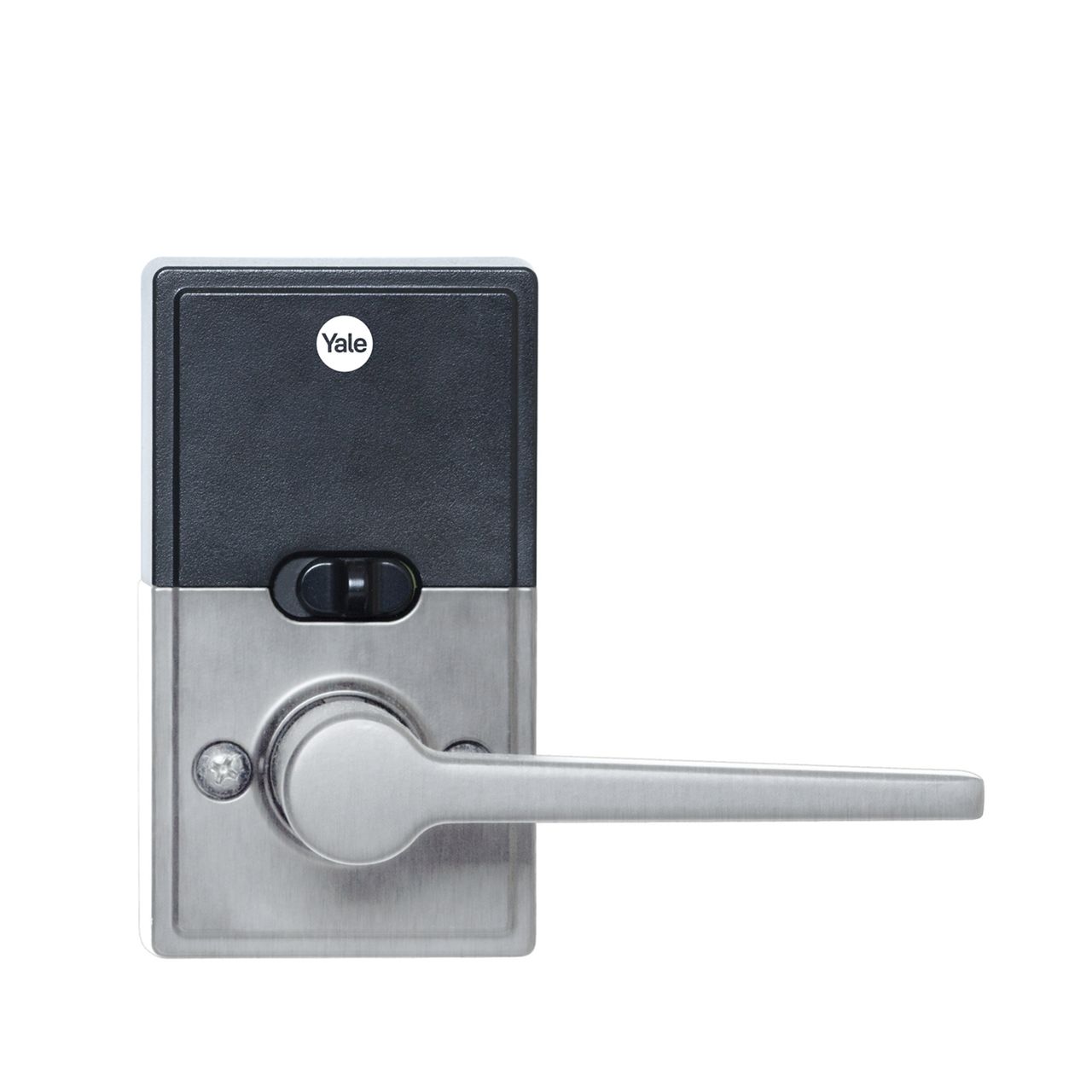

YLBL226NRSN (interior view)

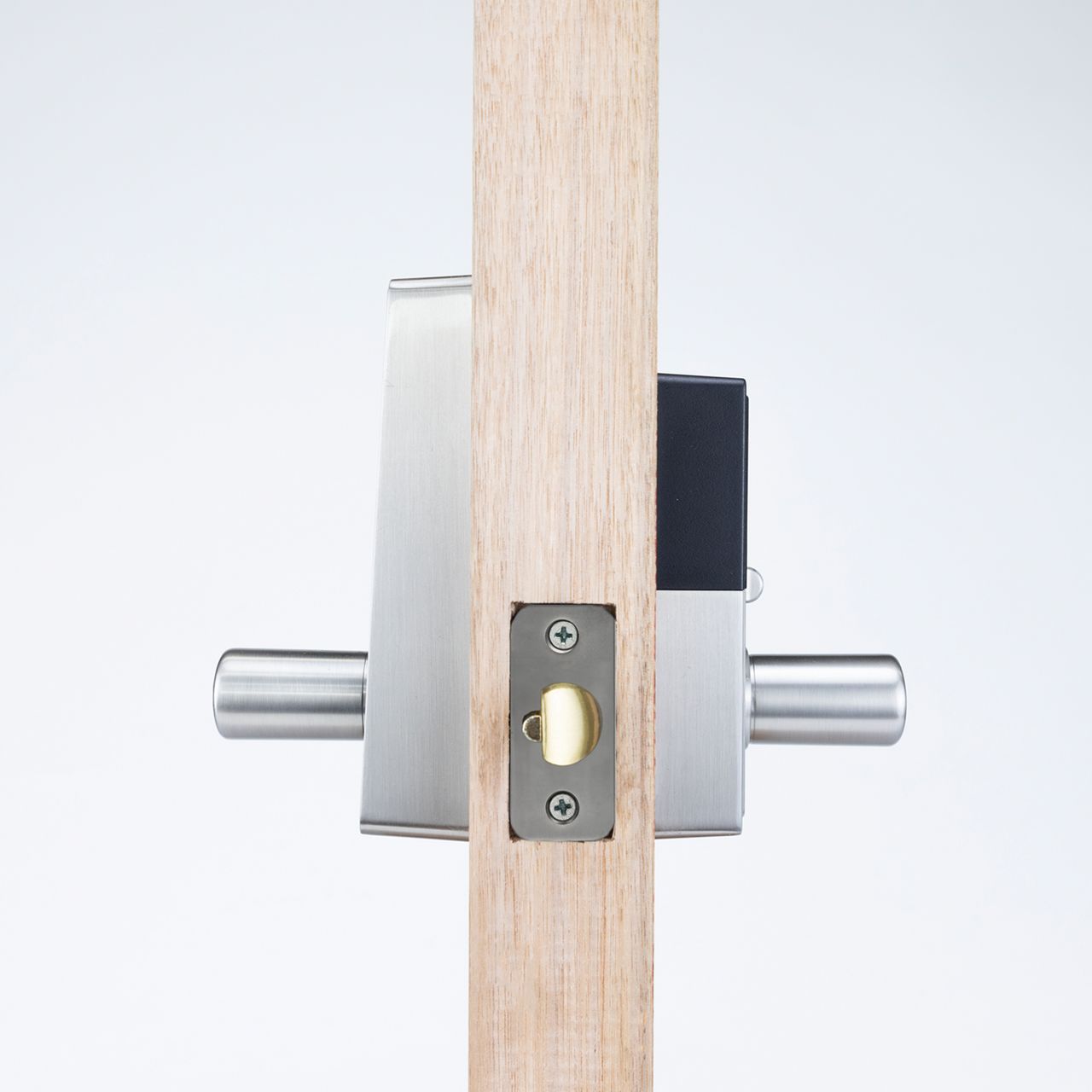

YLBL226NRSN (side view)

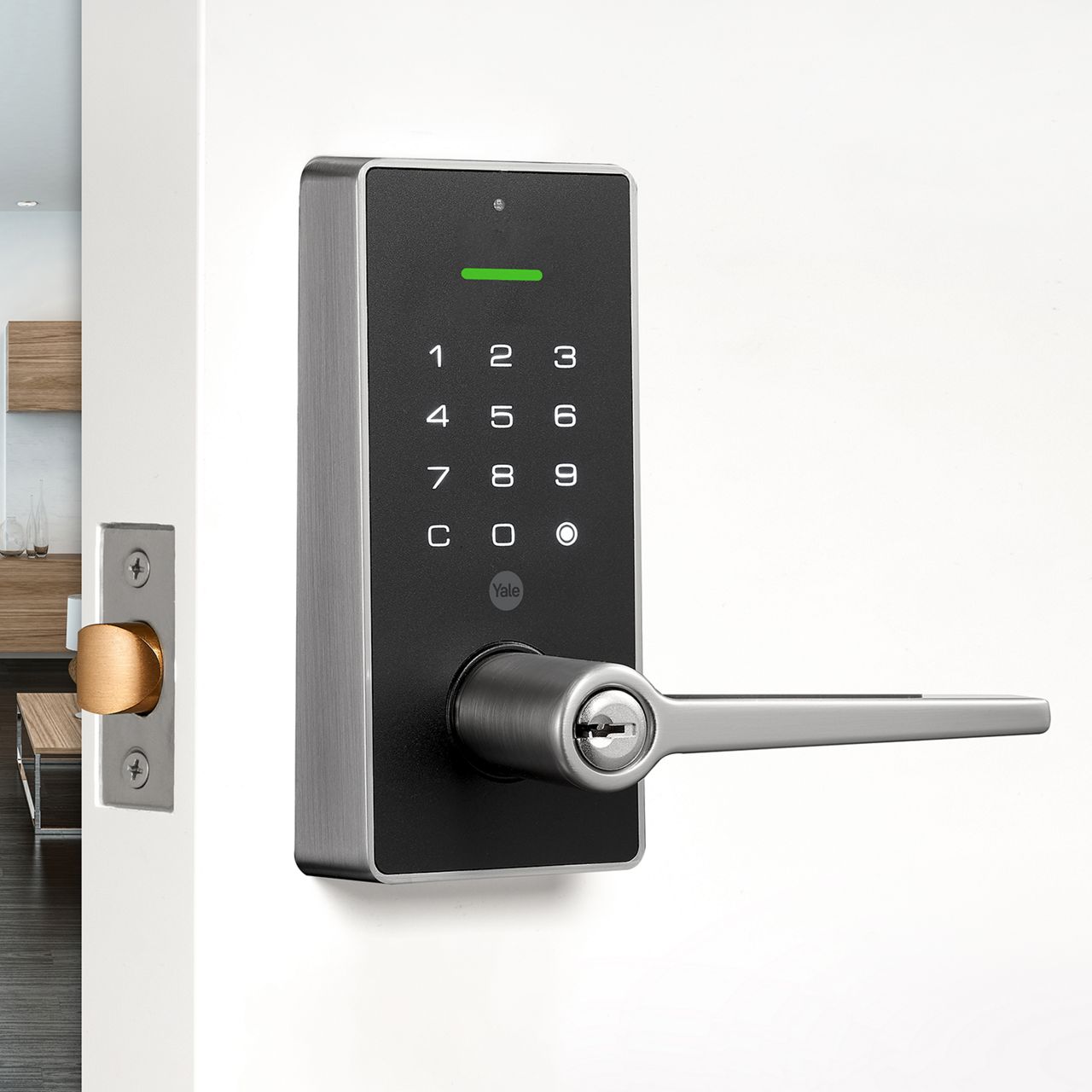

YLBL226NRSN (in situ)
Key Features
Mechanical Key Override
In the event your battery goes flat, you have a mechanical key override that will prevent you from being locked out.
Create Unique Pin Codes
You can create up to 70 unique PIN codes and 5 one-time user codes, adjust lock features, and personalise your settings.
Backlit LED
Proximity sensor automatically wakes the keypad up when approached by the user. This is very convenient when you enter your home at night.
Auto-lock
Enjoy peace of mind with auto-lock mode. This feature automatically locks your door after a set period of inactivity, ensuring your home is always protected.
Passage Mode
Activating Passage Mode with the internal slider will disable the Auto-Lock feature and allow quick entry and exit during daily use without the worry of getting locked out.
- C4 keyway
- Auto-locking function(when Passage Mode is disabled)
- Auto-90 second lockout (5 incorrect code attempts)
- Mechanical key override
- Up to 75 user codes (Five one-time user codes)
- Reversable door handing (suits right or left-hand doors)
- Meets ANSI/BHMA Grade 2
- Retrofit Solution for Mechanical Leverset (54mm borehole, single hole no deadbolt)
- 1x 9V battery (not included)*
- Suitable door thickness 35mm – 45mm
- Backset adjustable to 60mm or 70mm
- Operating Temperature -20ºC ~ 70ºC
- Operating Humidity 30% ~ 90%
- Available in Satin Nickel & Matt Black finishes
*For optimum results, we only recommend alkaline batteries. Up to 12 months depending on the frequency of your usage (10 cycles per day).
Description Part number Bar code Yale Libi Digital Touchpad Lever Lock Matt Black YLBL226NRMBK 9348313055654 Yale Libi Digital Touchpad Lever Lock Satin Nickel YLBL226NRSN 9348313055647
