Yale

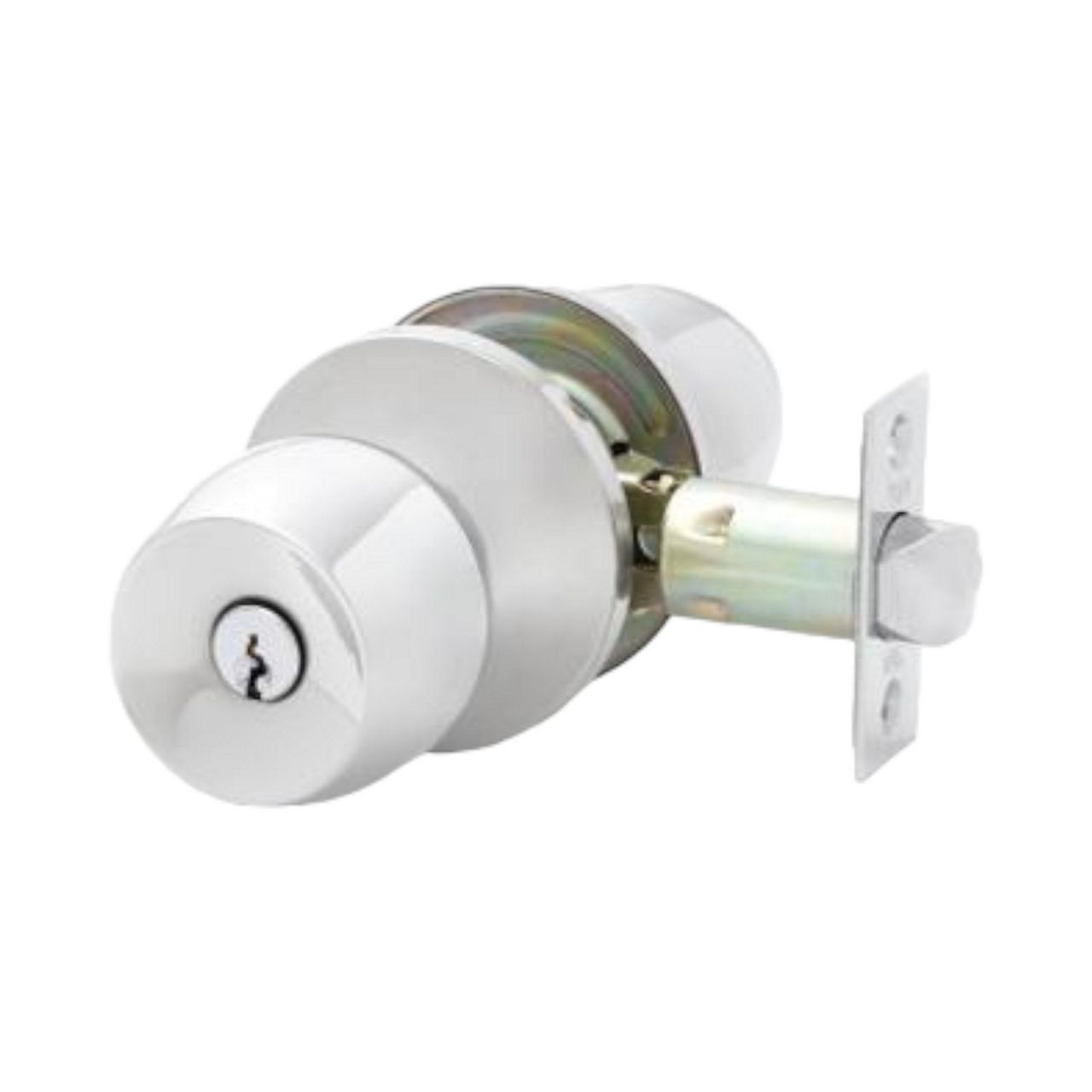

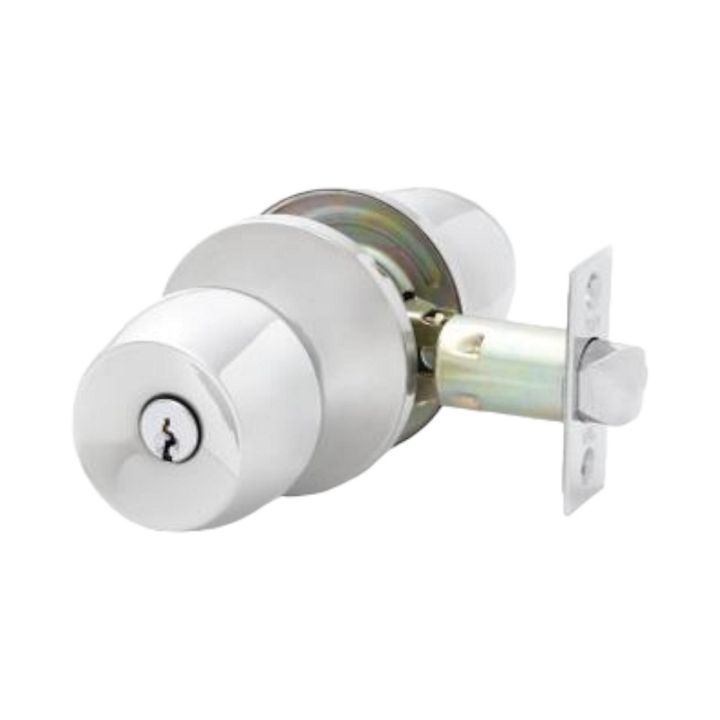

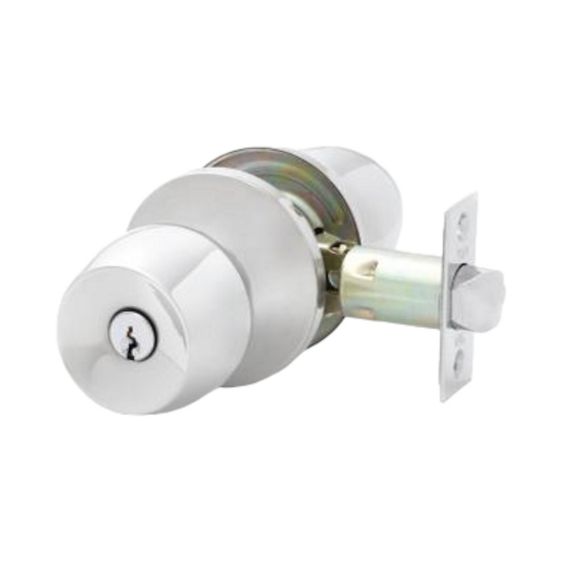

Yale Residential Key in Knob Lockset - Bell

Standard Yale profile keying.

Designed for residential applications.

  • Suits hinged doors 35-45mm thick
  • Suitable for timber doors
  • Ease of retrofit to existing doors as a replacement
  • Latch is adjustable for 60-70mm backset
  • Yale Keyway
  • Can be keyed alike to other Yale products
  • Designed to Yale quality and performance standards

Entrance Set

Operated by key from outside and turnsnib from inside

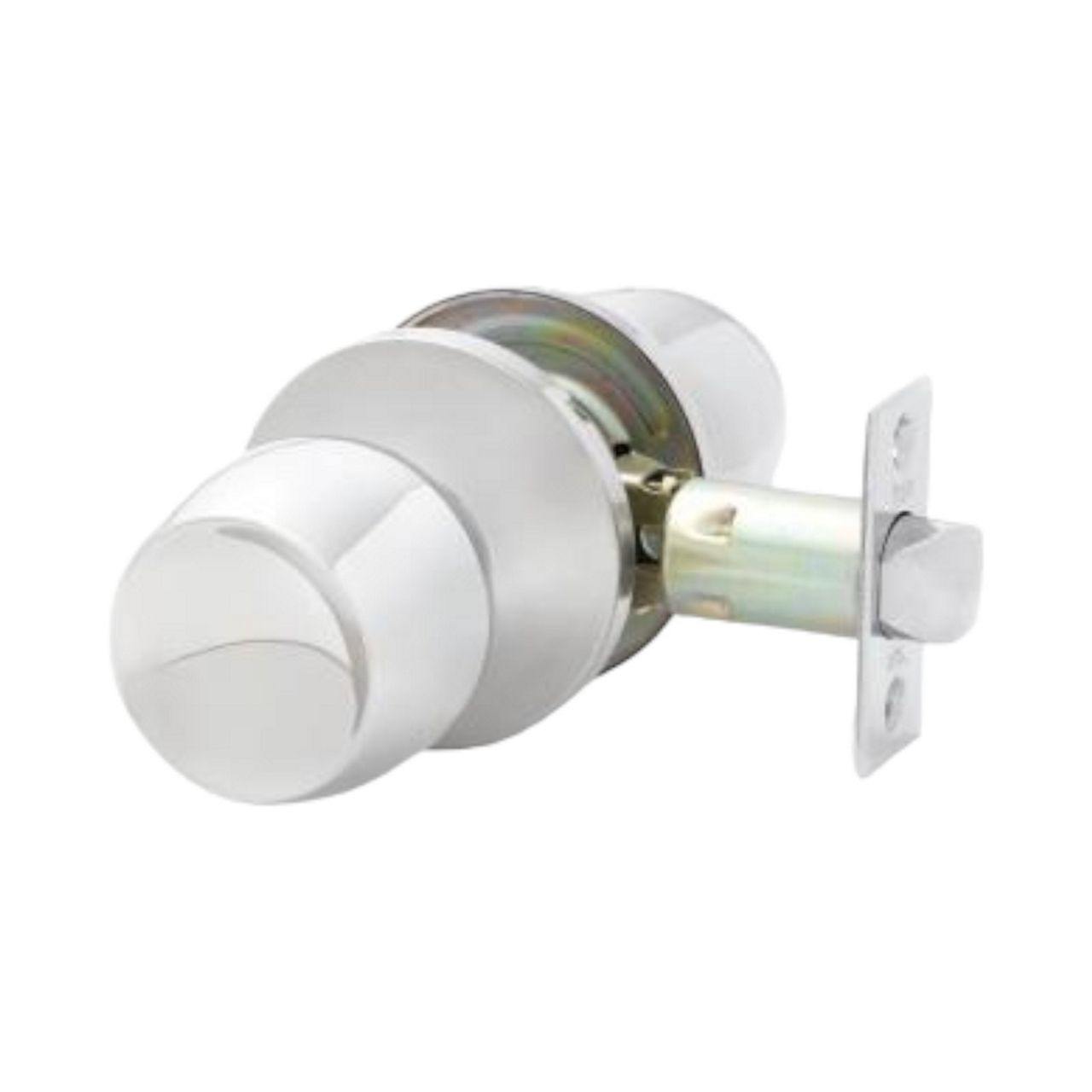

Privacy Set

Operated by turnsnib inside with outside emergency release

Passage Set

Outside and inside knob/lever always free

  • Finishes

    • Chrome Plate
    • Satin Chrome

    Keying

    Yale profile

    No. of keys

    3 nickel plated keys

    Backset

    Adjustable 60mm - 70mm

    Door Thickness

    35mm - 45mm (suitable for timber doors)

  • Yale Locksets Catalogue(PDF, 543 KB)
    Key in Knob Installation Instructions(PDF, 153 KB)
  • ItemPart numberBarcode
    Entrance Set - Satin Chrome BrushedYK2/ENT/SC93-11847-99908-4
    Entrance Set - Chrome PlateYK2/ENT/CP93-11847-99907-7
    Passage Set - Satin Chrome BrushedYK2/PASS/SC93-11847-99910-7
    Passage Set - Chrome PlateYK2/PASS/CP93-11847-99909-1
    Privacy Set - Satin Chrome BrushedYK2/PRIV/SC93-11847-99912-1
    Privacy Set - Chrome PlateYK2/PRIV/CP93-11847-99911-4
