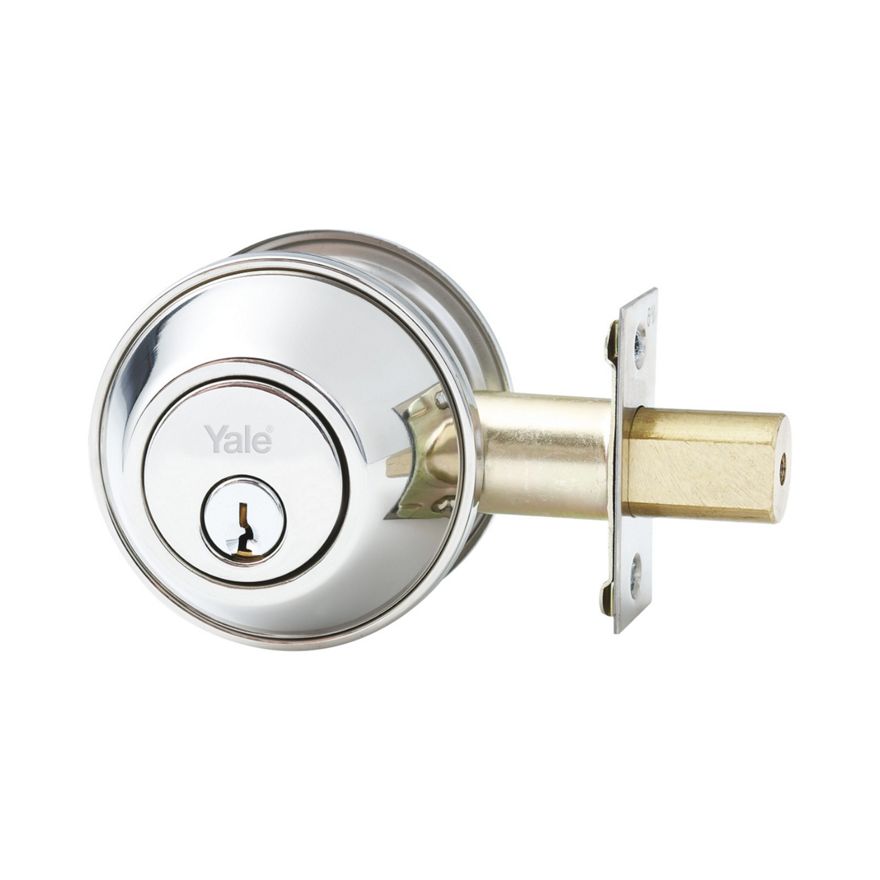

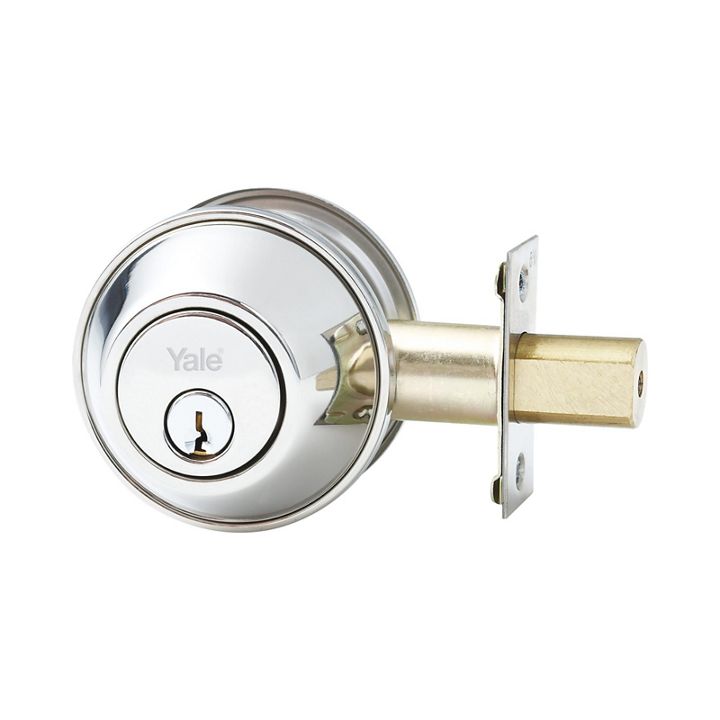

Yale Commercial Double Cylinder Deadbolt

Backset

Adjustable 60-70mm backset.

Latch

Solid brass bolt with 25mm projection.

Cylinder

Standard “PD” type cylinder keyed to C4 profile.

Door Thickness

35 to 45mm
* Requires spacer ring (included)

Finishes

Satin Chrome Brushed SC
Satin Stainless Steel SSS

Keying

Standard Keying
Supplied individually keyed with two keys per lock
78,000 key combinations
Key blanks:
V06 5PIN C4 (Standard)
V07 6PIN C4

Restricted Special Keying

Yale Commercial Deadbolts can be keyed to a number of controlled and/or specially keyed systems.
These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Please contact your local sales office or customer service for specific information on keying systems.
