Code Handles

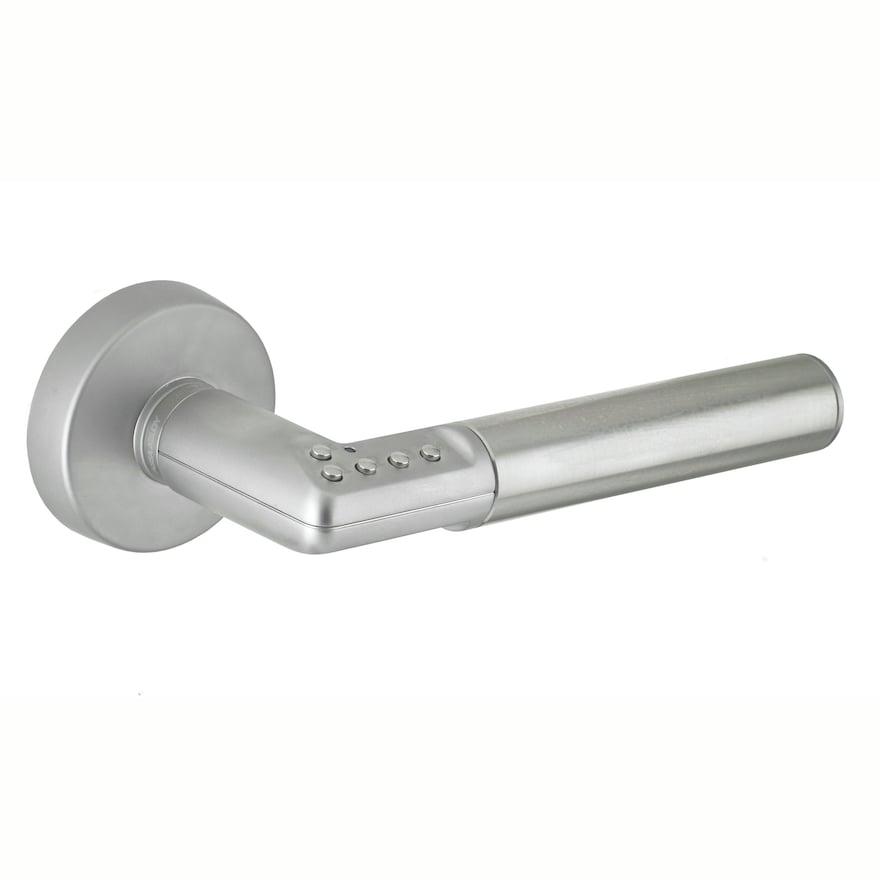

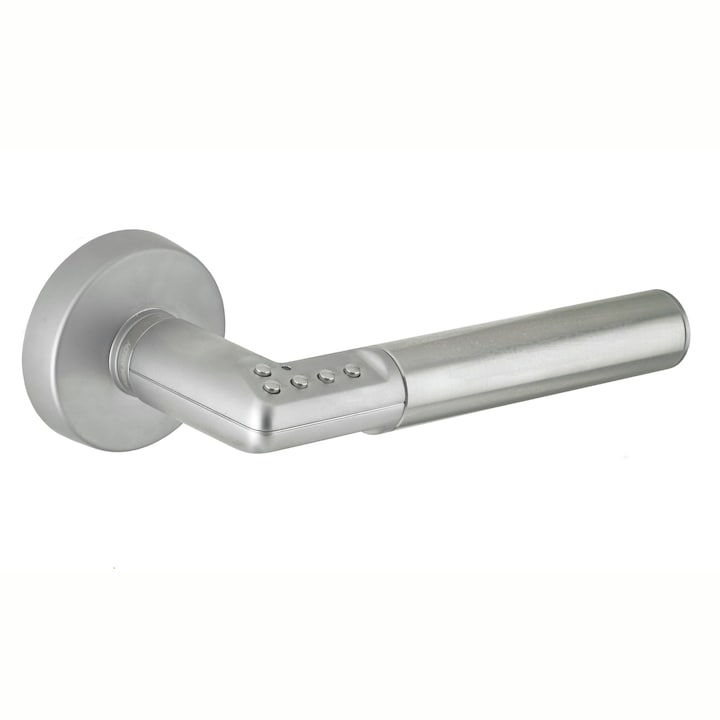

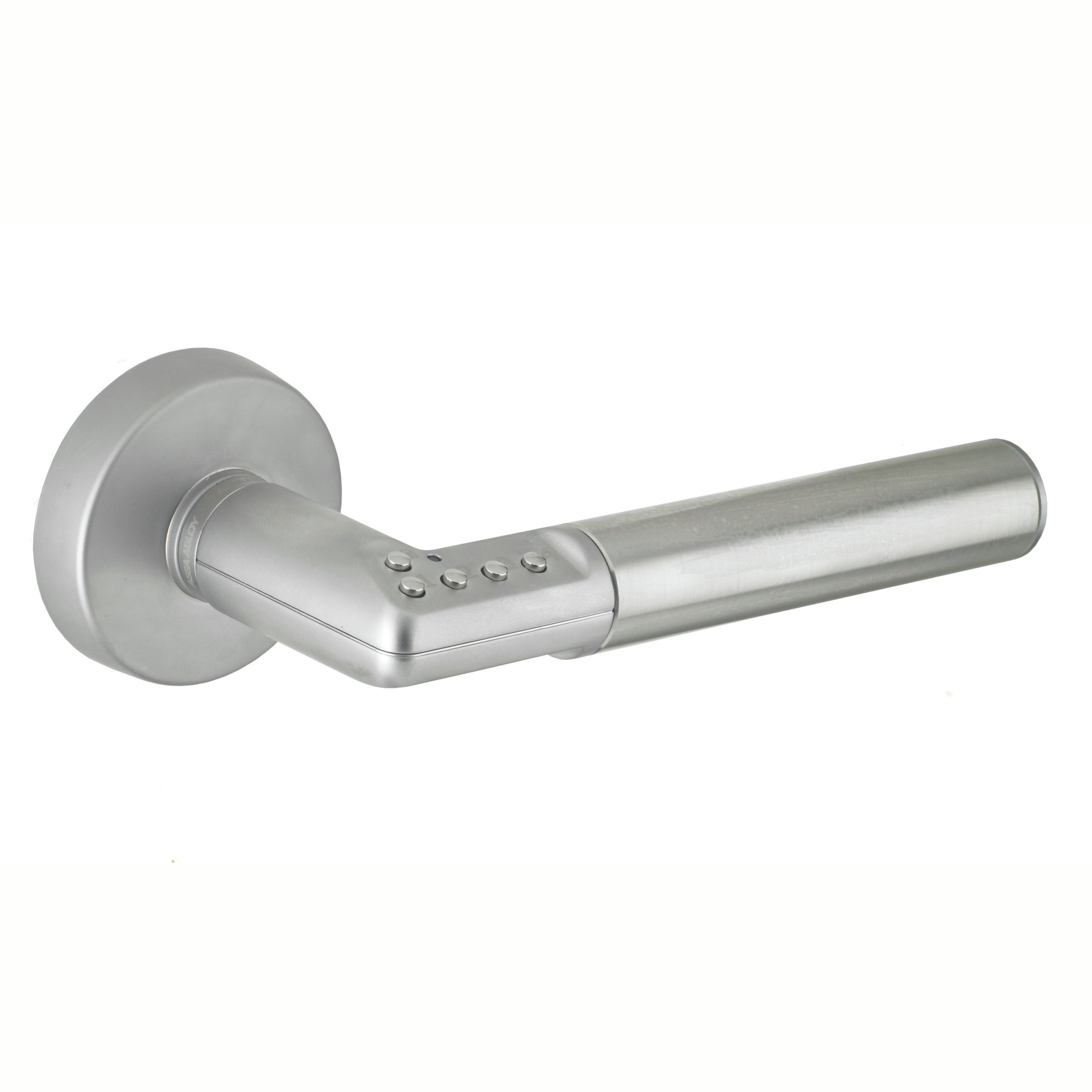

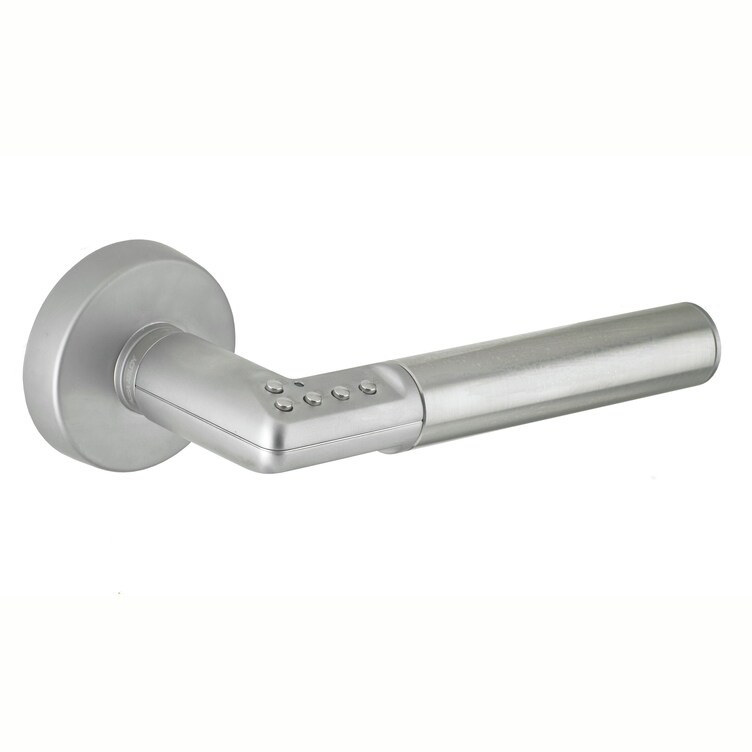

Yale code handle is an innovative solution with an automatic locking mechanism built into the handle, which only allows the door to be opened when entering the correct personal code.

Features

• Auto locking function available
• Master code and up to nine different user codes
• Visual and acoustic feedback
• Easy to fit, no cables
• Indoor use only

Specifications

• Locking mechanism is operated with 4 buttons
• Unique reset functions
• Master code and user codes can be reset as and when required
• Two CR2, 3V lithium batteries in outer handle
• Stainless steel and zinc chrome finish

The Yale window code handle is used to lock/unlock your windows and patio/balcony doors with a code. Fits window/doors that open inwards.

Features

• Lock and unlock by using your personal code without key
• Locks patio/balcony doors and windows from the inside
• Possibility to lock in all 90° positions i.e. also in ventilation mode for tilt and turn type doors/windows
• Enhances child safety
• Simple installation, no wiring

Specifications

• The Code Handle is unlocked with a 6 digit code to be based on numbers 1 to 4
• Separate lock button
• 1 administrator/user code + 4 additional user codes
• Blocking function when wrong code is entered repeatedly
• One combined administrator/user code to enter/change/reset user codes and enable/disable sound
• The code is not affected by voltage drop/battery change
• Operated with standard AAA alkaline batteries
• Battery lifetime is approximately 2 years/15.000 operations
• Low battery indication
• Supplied with M5 screws, security screws and 3 interchangeable spindles
• Fits DIN standard 43 mm c/c
• Dimensions:
  - Handle length: 126 mm
  - Depth: 70 mm
  - Rosette size: 70 x 32.5 mm
• 7mm spindle

Enhance Security with a Smart Sliding Door Lock for Your Home.

The Yale Smart Code Handle enhances security by locking terrace doors and windows, preventing intruders and children from opening them.

It fits most terrace doors without a latch bolt and is easy to install. This sliding door lock provides an added layer of protection, ensuring safety for your home.

You can now lock and unlock your door or window with a code or the Yale Home app. The sliding door lock offers convenience and control, allowing you to secure your space effortlessly. With a durable and reliable sliding door lock, you can enhance both security and ease of use.
